SSD
Description Spare part number
Solid-state drive, 2242.M2
128 GB 854106-001
32 GB 827578-001
Before removing the SSD, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 26).
5. Disconnect the battery (see Battery on page 29).
Remove the SSD:

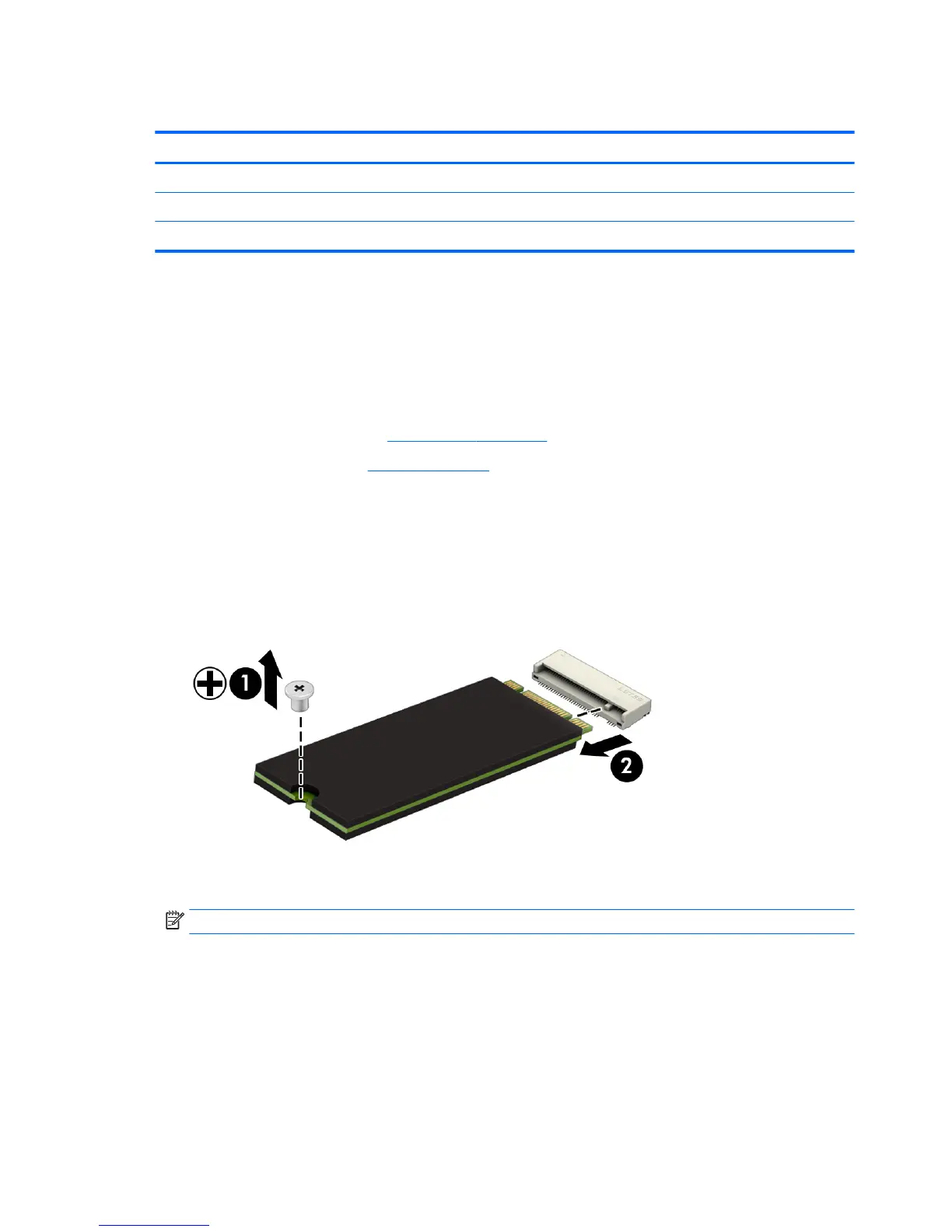

1. Remove the Phillips PM2.0×3.0 screw (1) that secures the drive to the system board.
2. Remove the drive (2) by pulling it away from the connector.
NOTE: SSD drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to reassemble and install the SSD drive.
30 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
