Rear Components

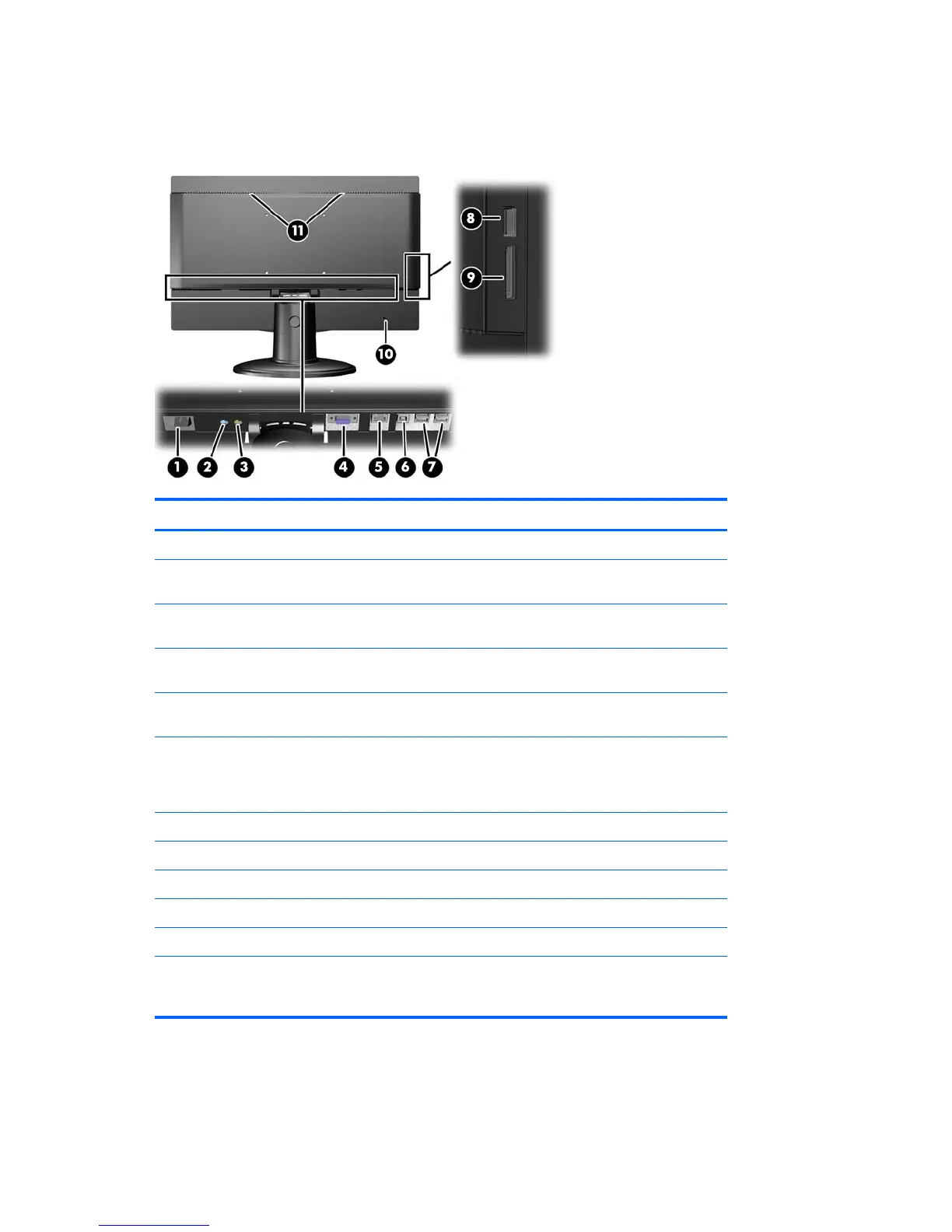

Figure 2-5 Rear Components
Component Function
1 AC Power Connector Connects the AC power cord to the monitor.
2 Audio In Connector Connects an input audio cable between the monitor and a
PC when using the monitor in PC mode.
3 Audio Out Connector Connects an output audio cable between the monitor and an
external audio device.
4 VGA Connector Connects a VGA cable between the monitor and a PC when
using the monitor in PC mode.
5 Ethernet Connector Connects an Ethernet cable to the monitor when using the
monitor in Net mode.
6 USB In Connector Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub on a PC so that the
USB ports on the monitor are active when using the monitor
in PC mode.
7 4 USB Out Connectors Connects external USB devices to the monitor.
8 USB Out Connector Connects external USB devices to the monitor.
9 4-in-1 Media Card Reader Slot Supports SD, MMC, MS, and xD cards.
10 Lock Slot Attaches a locking mechanism to the monitor.
11 Speakers Two 2-watt stereo speakers.
NOTE: In PC mode, a USB upstream cable (not provided) must be connected between the PC and
the monitor's USB In connector in order for the USB Out connectors to function. In Net mode, the
USB Out connectors function without connecting to a PC.
6 Chapter 2 Setting Up the Monitor ENWW
