6.

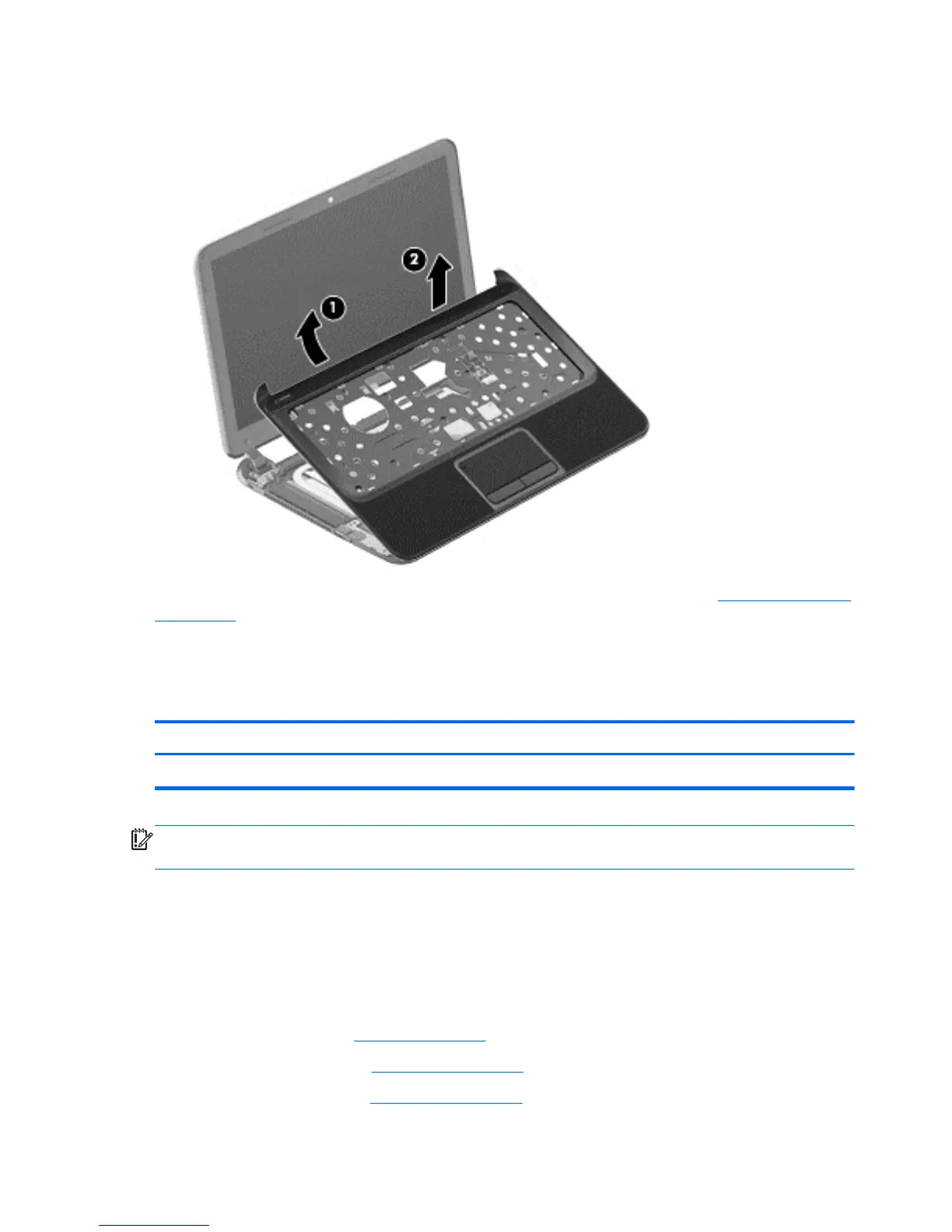

Gently lift around the edges of the top cover (1) and lift to remove the top cover (2).
When replacing the top cover, be sure that the Power button board and cable (see Power button board
on page 54). are removed from the defective top cover and installed on the replacement top cover.
Reverse this procedure to install the top cover.
Power button board
Description Spare part number
Power button board (includes cable)
701686-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
Before removing the power button board, follow these steps:
1.
Shut down the computer.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the keyboard (see
Keyboard on page 47).
6.
Remove the top cover (see
Top cover on page 51).
54 Chapter 4 Removal and replacement procedures
