Sound Connector Types
Your model may include one of three analog sound connector types on the back of
your computer:
Three connectors
Six connectors
Sound card
The connectors are 1/8-inch (3.5 mm) stereo mini-jacks that connect from the back of the
computer to speakers and microphones.
Your system may also have a separate Digital Out connection (select models only).
Software configuration is different for each connector type, as noted in the instructions.

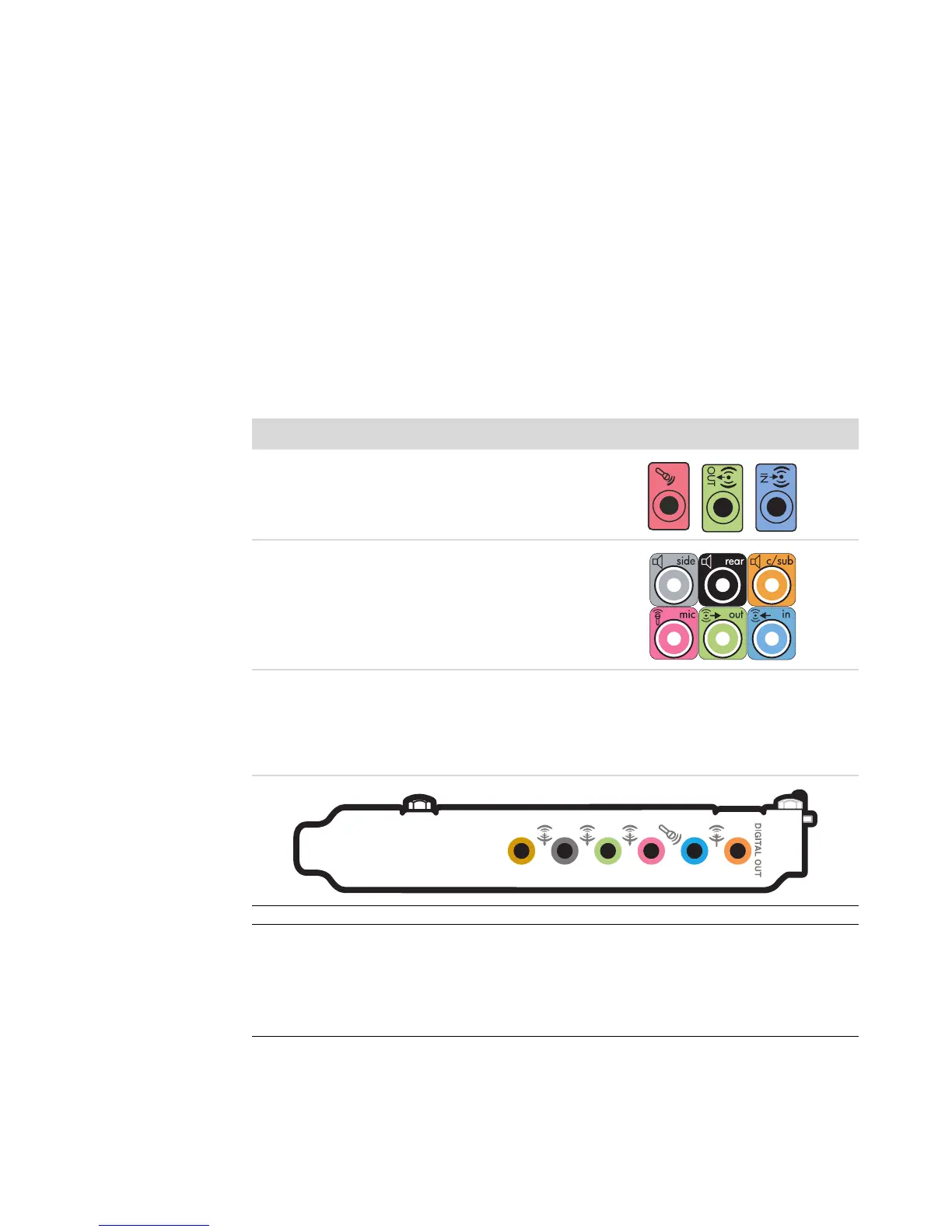

Sound Connector Illustration Type
Three
connectors
Your computer model may include
three sound connectors. You can
connect up to a 5.1 audio system to the
computer.
3
Six
connectors
Your computer model may include six
sound connectors on the back of your
computer. You can connect up to a 7.1
audio system to the computer.
6
Sound card
connector
Your computer may include a sound
card. You can connect up to a 5.1
audio system (7.1 audio system for
select models) or digital speakers to the
sound card on the computer.
See the following
illustration.
S
NOTE:
Type 3 is three connectors.
Type 6 is six connectors.
Type S is sound card.
