HP Pavilion MX703/M703 Monitor Guide
33
Pre-Set Video Modes
The monitor supports the following industry-
standard combinations of screen resolution and
refresh rates. Other combinations are possible,
but may require adjustments to the image size
and position. (See “Using the OSD Main Menu
window” on page 18 for information about
making these adjustments.)
The asterisk (*) denotes primary mode. This is the
suggested mode for display.
Resolution
(dots x lines)
60 Hz
70 Hz
75 Hz
85 Hz
640 x 350 N/A N/A N/A
640 x 480 N/A
720 x 400 N/A N/A N/A
800 x 600 N/A
1024 x 768 N/A *
1280 x 1024 N/A N/A N/A
Pin Assignments

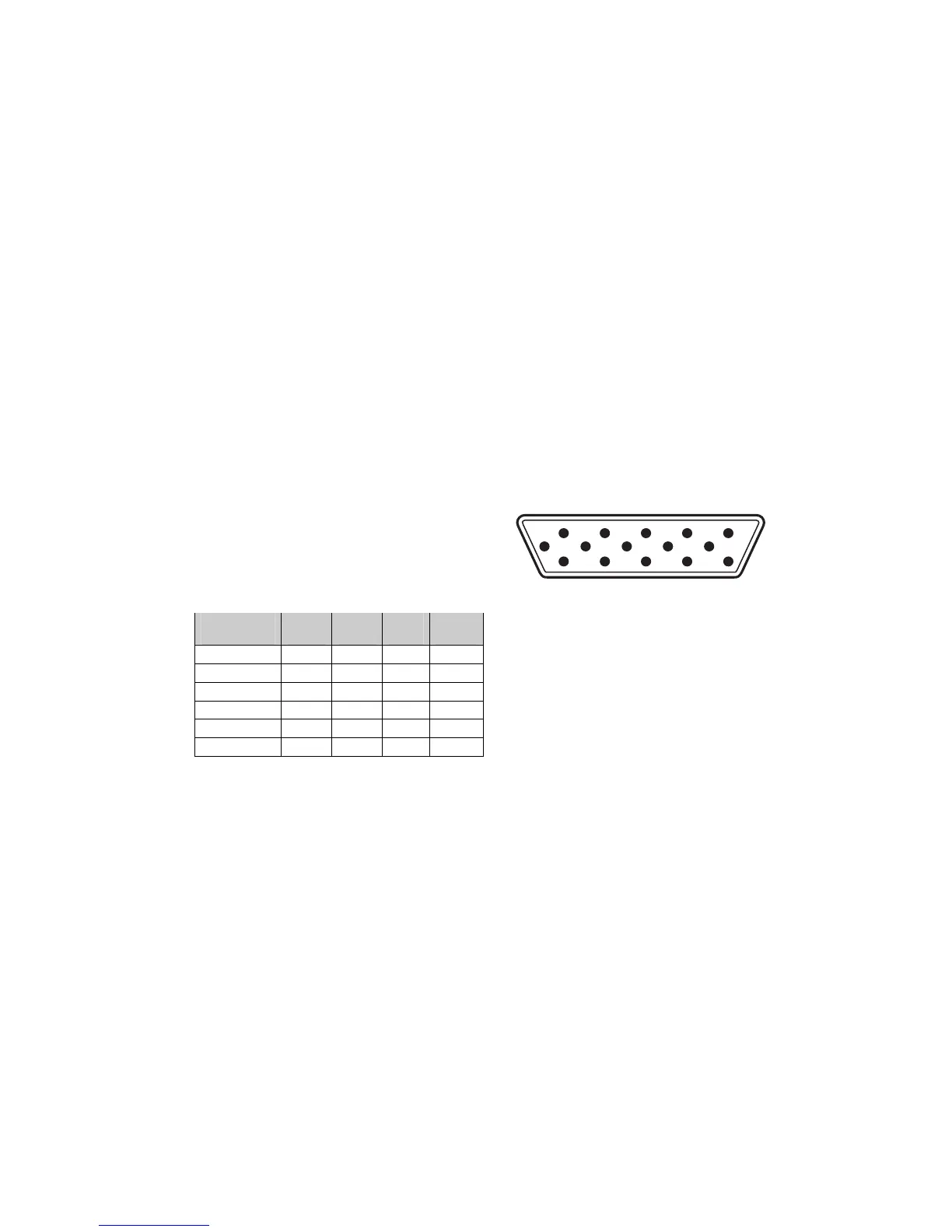

The following figure illustrates the 15-pin D-sub
male video connector used by the monitor. The
table shows the pin assignments.
51
15
11
6
10
Note:
Because of a policy of continuous product
improvement, pin assignments are subject to
change without notice.
