HP ProBook 455 G8 User Manual

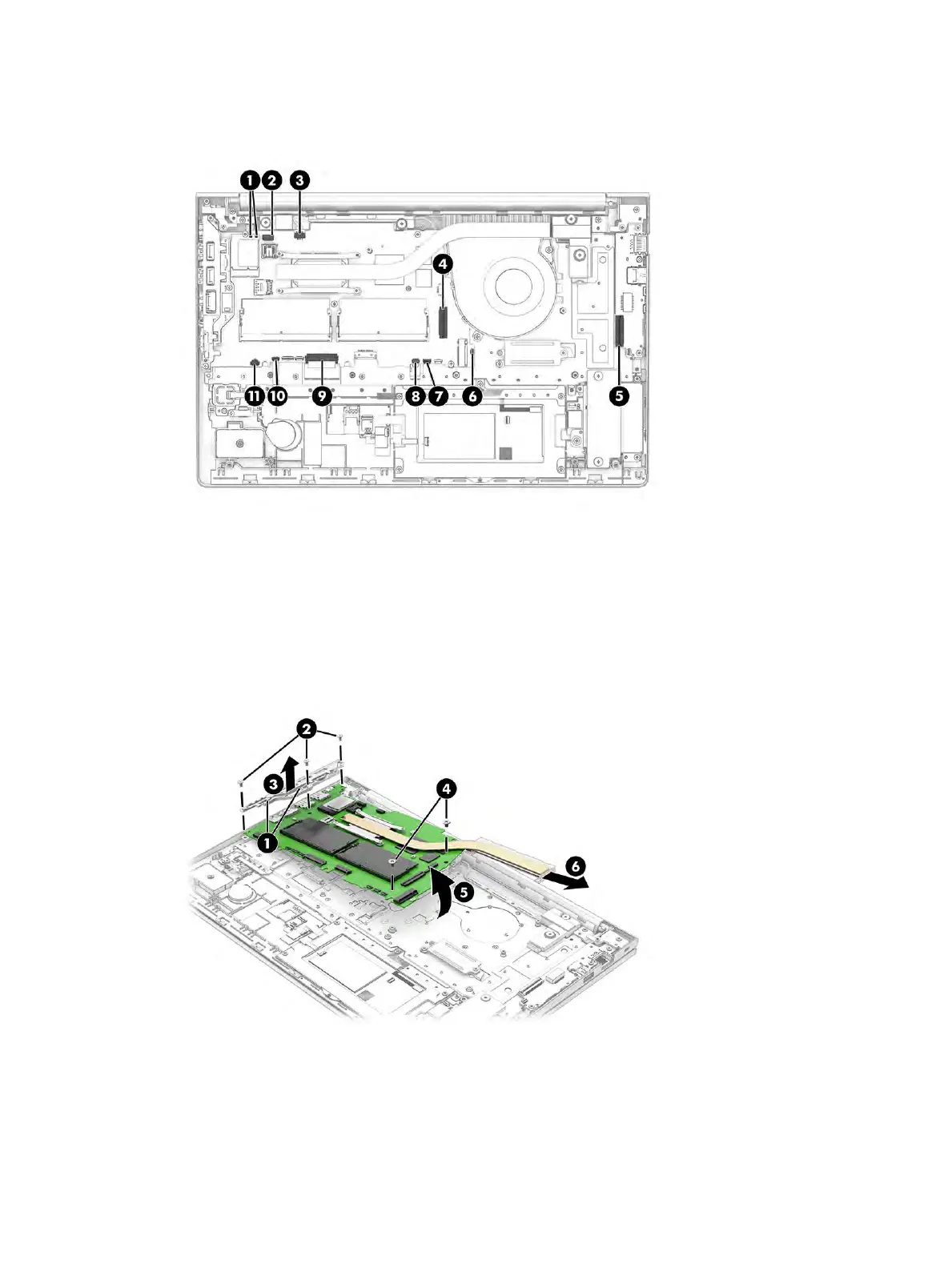

● Fingerprint reader cable (ZIF) (select products only) (10)
● RTC battery cable
(11)
2
. Remove the port bracket (1), by removing the three Phillips M2.0 × 4.0 screws (2) that secure the
bracket to the system board, and then removing the bracket (3).
3. Remove the two Phillips M2.0 × 2.5 screws
(4) that secure the system board to the computer.
4
. Lift the side of the system board upward (5), and then pull the system board away from the connectors
on the side of the computer to remove it (6).
Reverse this procedure to install the system board.
Speakers
To remove the speakers, use this procedure and illustration.
46 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP ProBook 455 G8 Specifications

General

Webcam	720p HD camera
Display	15.6" diagonal, FHD (1920 x 1080), IPS, narrow bezel, anti-glare, 250 nits, 45% NTSC
Graphics	AMD Radeon Graphics
Operating System	Windows 10 Pro
Weight	Starting at 1.74 kg
Battery	3-cell, 45 Wh Li-ion
Ports	RJ-45, headphone/microphone combo
Wireless	Bluetooth 5
Dimensions	1.99 cm
Processor	AMD Ryzen 3/5/7/9
