B-5

Monitoring and Analyzing Switch Operation

Status and Counters Data

Menu Access To Status and Counters

Beginning at the Main Menu, display the Status and Counters menu by select-

ing:

1. Status and Counters

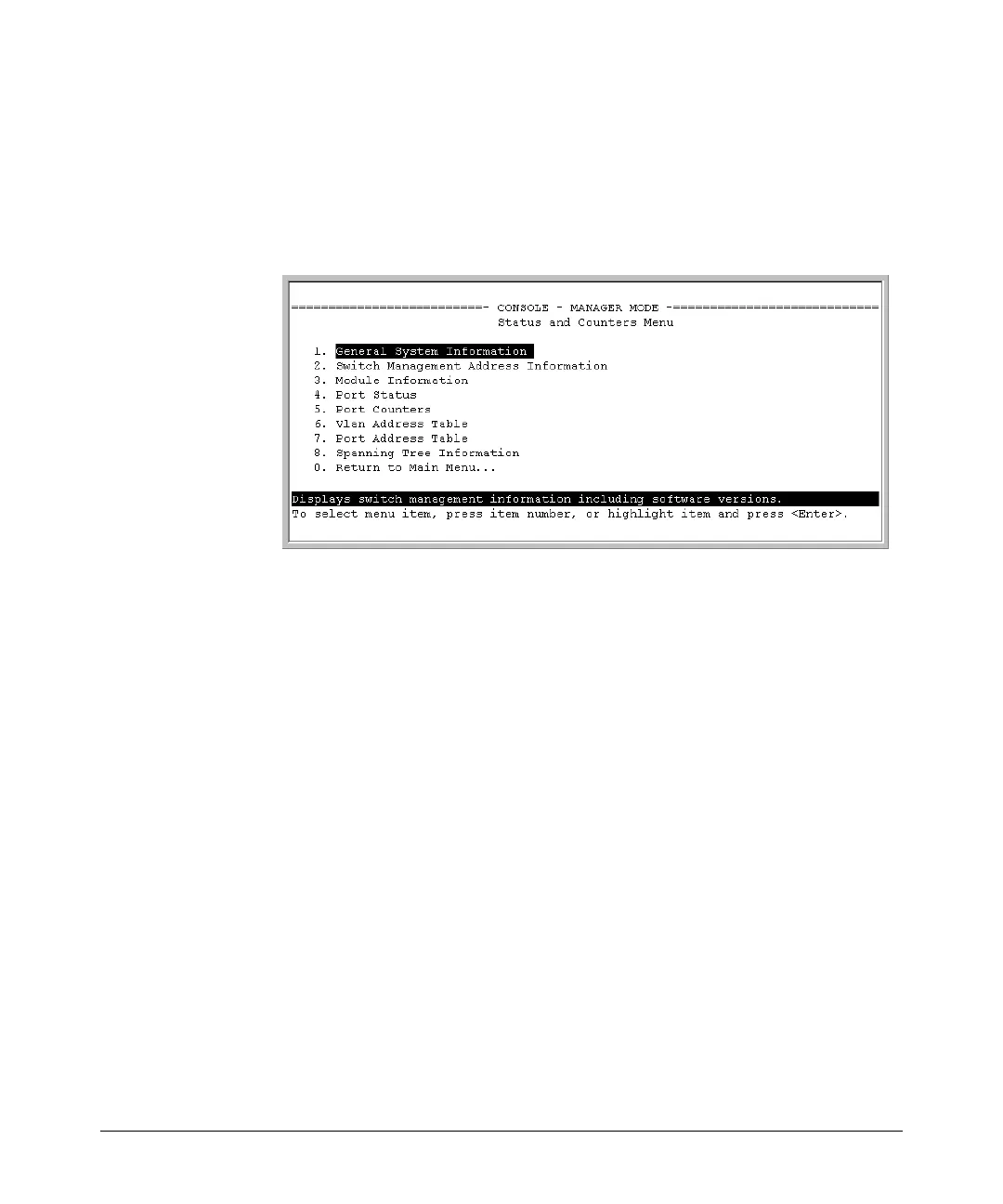

Figure B-1. The Status and Counters Menu

Each of the above menu items accesses the read-only screens described on

the following pages. Refer to the online help for a description of the entries

displayed in these screens.
