Planning and Implementation for the 5400zl/8200zl Switches
Configuration Examples
Planning and
Implementation for the
5400zl/8200zl Switches
Example Configuration for HP ProCurve 5406zl With One
PoE/PoE+ Power Supply
In this example there is one J9306A power supply operating at 110-127 volts,
providing 300 watts for PoE/PoE+ usage.

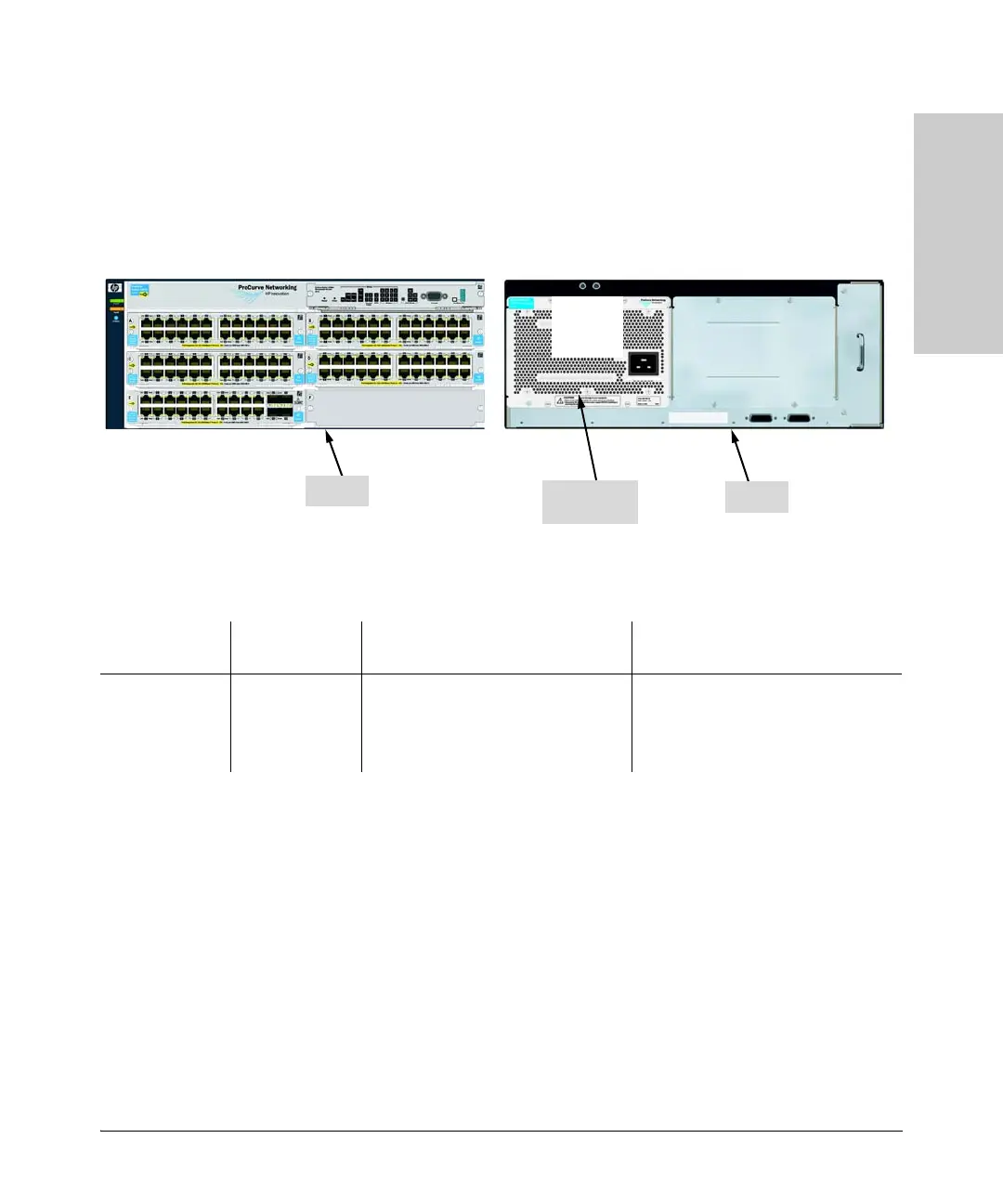

Figure 10-9. Example of a 5406zl with One Power Supply (J9306A) @ 110-127 Volts
Back
Power Supply
J9306A
Front
300 watts
for PoE/
PoE+
Source of Power Watts Available
(110-127 V)
# of Ports Powered and Average watts/
Port
Redundant # of Ports Powered and
Average watts/Port
Single Internal
PoE+ Power
Supply (J9306A)
300 W 10 @ average 30 W each
19 @ average 15.4 W each
40 @ average 7.5 W each
75 @ average 4.0 W each
None
