10-16
Planning and Implementation for the 5400zl/8200zl Switches
Configuration Examples
Planning and
Implementation for the
5400zl/8200zl Switches
Example Configuration for HP ProCurve 8206zl With One
PoE/PoE+ Power Supply
In this example there is one J9306A power supply operating at 200-240 volts,
providing 900 watts for PoE/PoE+ usage.

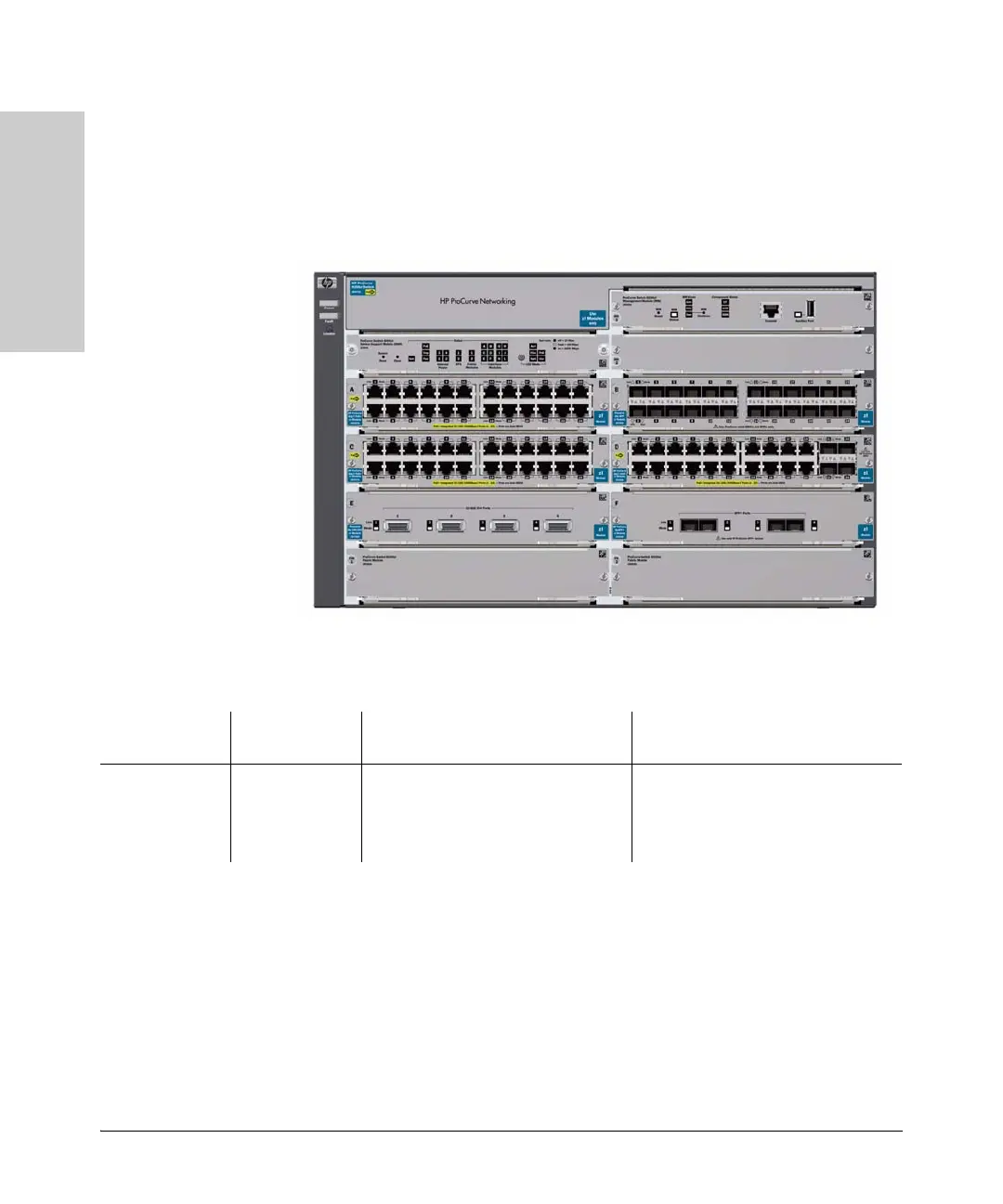

Figure 10-10.HP ProCurve 8206zl Switch
If low-wattage devices (4.0 watts) are connected to the switch, a 24-port
module could be installed in each of the six slots, providing 144 ports that
could be powered by a single J9306A power supply.
Source of Power Watts Available
(200-240 V)
# of Ports Powered and Average watts/
Port
Redundant # of Ports Powered and
Average watts/Port
Single Internal
PoE+ Power
Supply (J9306A)
900 W 30 @ average 30 W each
58 @ average 15.4 W each
116 @ average 7.5 W each
144 @ average 4.0 W each
None
