Planning and Implementation for the 2520 and 2520G Switches
Planning the PoE Configuration
Planning and
Implementation for the 2520
and 2520G Switches
HP ProCurve 2520-24-PoE and 2520G-24-PoE
Configurations
The table in the example configuration contain entries that show the PoE
power available when the 2520-24-PoE or 2520G-24-PoE is used to supply PoE
power.

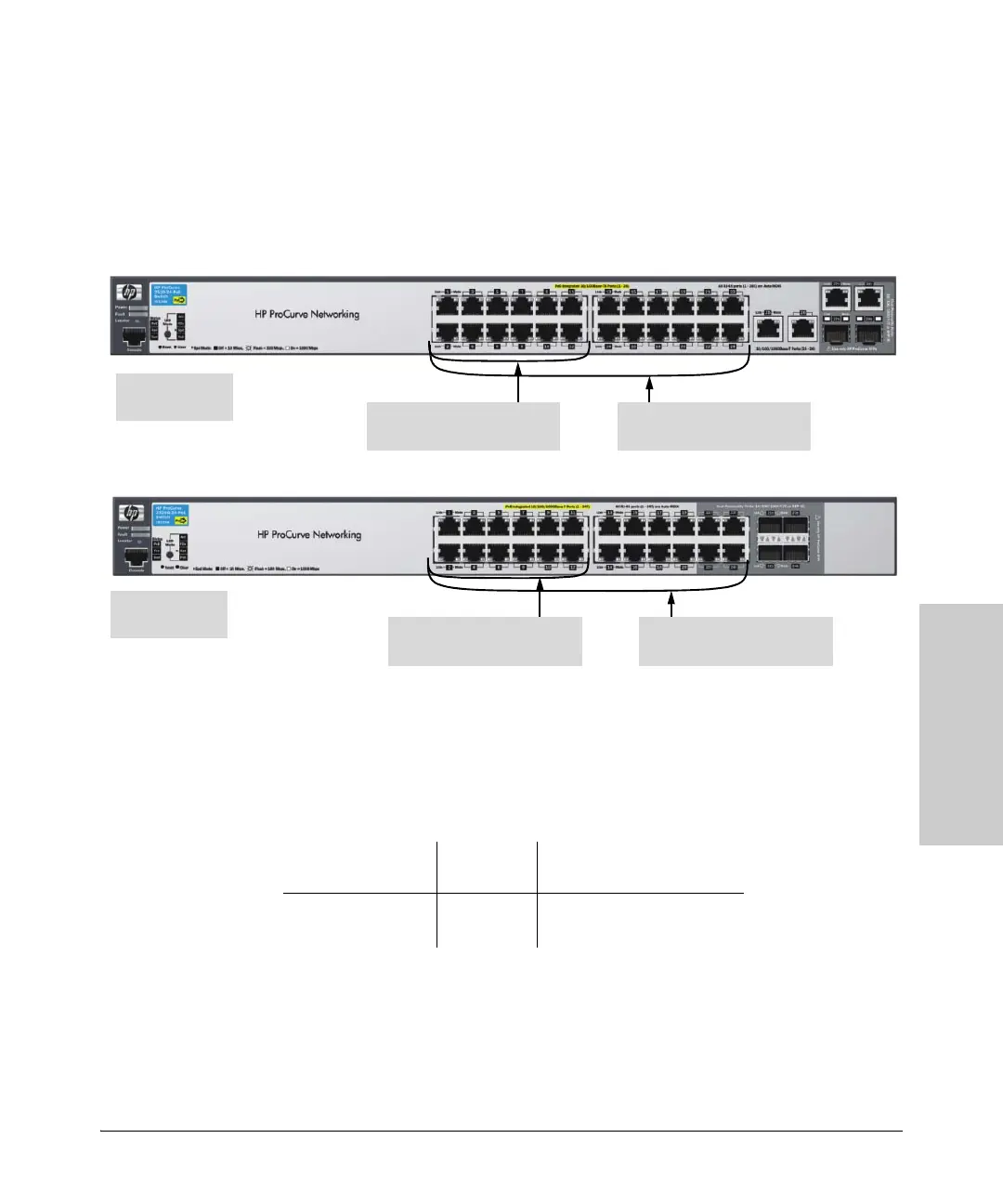

Figure 3-2. Example of a 2520-24-PoE or 2520G-24-PoE Switch
If any of the mini-GBIC ports are used the corresponding RJ-45 port will not
be supplied with PoE power. This needs to be taken into consideration when
planning per-port PoE wattage.
ProCurve Switch
2520G-24-PoE
12 ports can receive up to 15.4
watts of PoE power
24 ports can receive up to 7.5
watts of PoE power
ProCurve Switch
2520-24-PoE
12 ports can receive up to 15.4
watts of PoE power
24 ports can receive up to 7.5
watts of PoE power
Source of Power Watts
Available
# of Ports Powered and
Average watts/Port
Internal PoE Power
Supply
195 12 @ average 15.4 W each
24 @ average 7.5 W each
