7-9
Monitoring and Analyzing Switch Operation
Port Counters
Monitoring and Analyzing
Switch Operation
Displaying Port Counters from the Console Interface
To access this screen from the Main Menu, click on:
1. Status and Counters
4. Port Counters

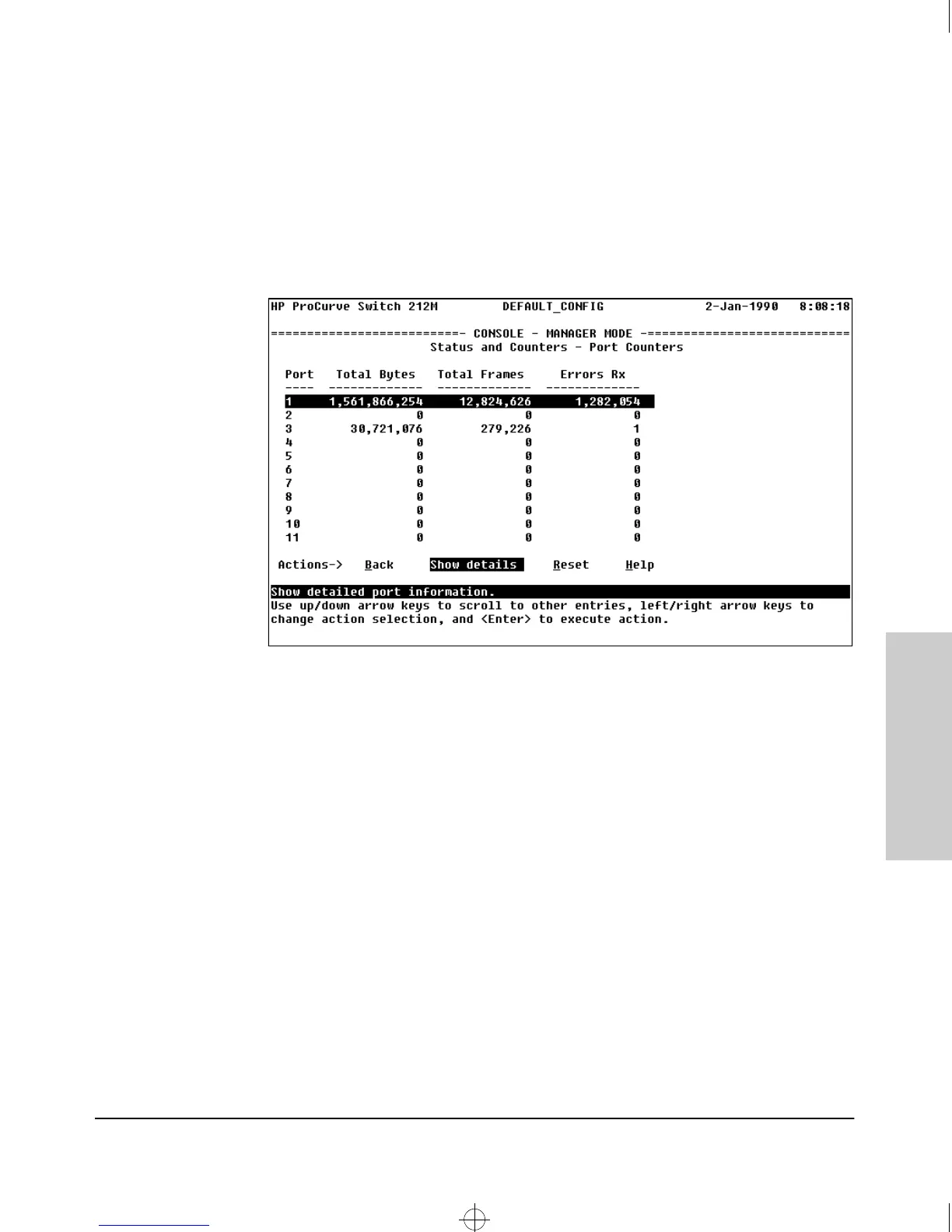

Figure 7-7. Example of Port Counters on the Console Interface
To view details about the traffic on a particular port, highlight that port number
(figure 7-7), then select Show Details. For example, selecting port 1 displays a
screen similar to figure 7-8, on the next page.
Sraswb.book : SIER_SW7.FM Page 9 Tuesday, June 30, 1998 12:20 PM
