Descriptions
HP Procurve Switch GL Modules
For the HP Procurve Series 4100GL Switches
Descriptions. The HP Procurve Switch GL Modules are components that you
can add to an HP Procurve GL switch to provide a variety of network connec-
tivity options. The following modules are available as of this printing:

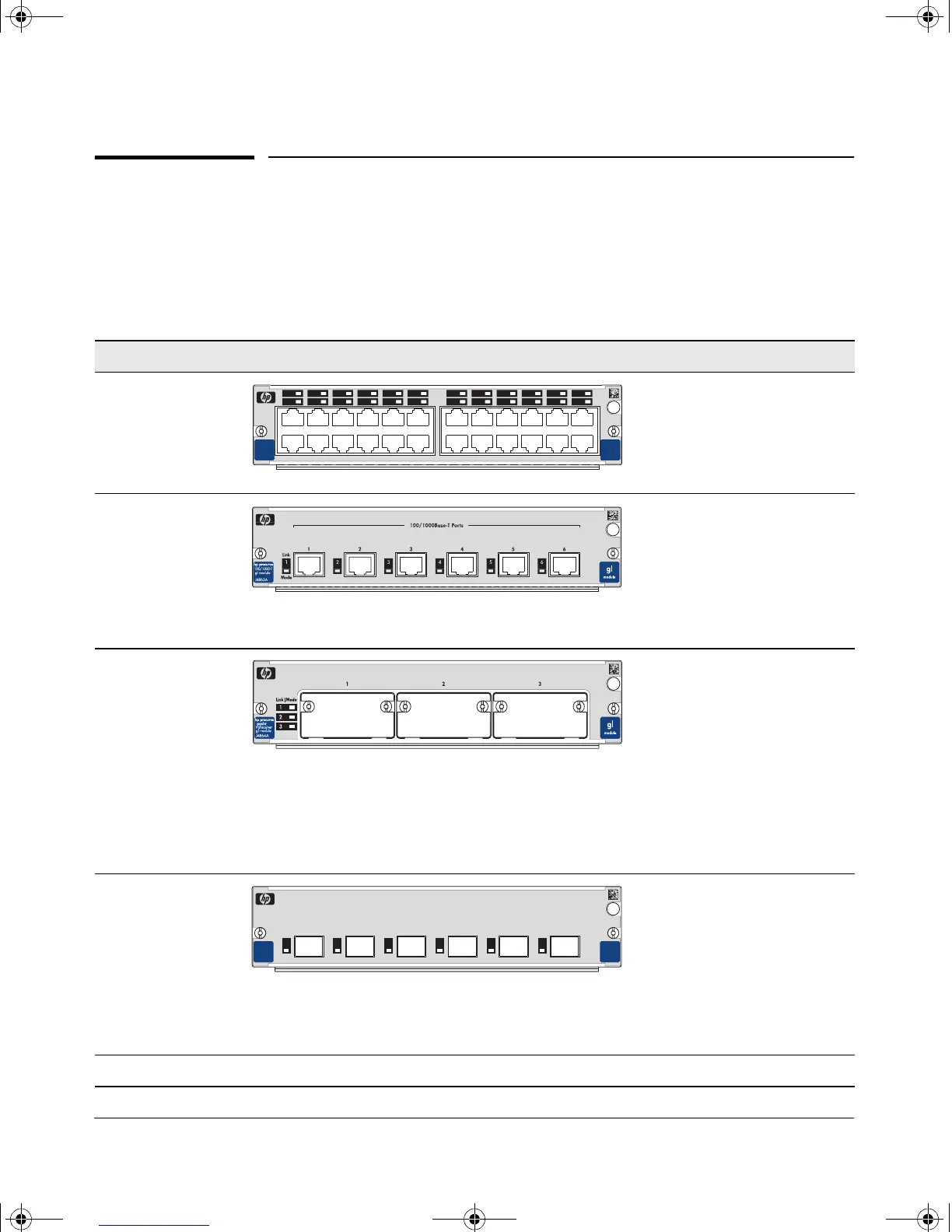

Module Description
HP Procurve Switch
10/100-TX GL Module
(J4862B)*
24 twisted-pair ports with RJ-45
connectors for 10 Mbps or 100
Mbps operation over 100-ohm
unshielded (UTP) or shielded (STP)
twisted-pair cable -- all ports have
the HP Auto-MDIX feature
HP Procurve Switch
100/1000-T GL Module
(J4863A)
6 twisted-pair ports with RJ-45
connectors for 1000 Mbps
(Gigabit) or 100 Mbps operation
over Category 5 or better 100-ohm
UTP or STP cable (category 5E
recommended for Gigabit) -- all
ports have the IEEE 802.3ab Auto
MDI/MDI-X feature
HP Procurve Switch
Gigabit Transceiver
GL Module (J4864A)
3 transceiver slots for installing
any of the supported HP Procurve
Transceivers
†
.
†
Supported HP Procurve Transceivers (as of this printing):
• 100-FX Transceiver (J4853A)
• Gigabit-SX Transceiver (J4131A or J4131B)
• Gigabit-LX Transceiver (J4132A)
• 100/1000-T Transceiver (J4834A)
• Gigabit Stacking (part of the HP Procurve Switch Gigabit
Stacking Kit -- J4116A)
HP Procurve Switch
mini-GBIC GL Module
(J4893A)*
6 mini-GBIC slots for installing any
of the supported HP Procurve
mini-GBICs**.
** Supported HP Procurve mini-GBICs (as of this printing):
• Gigabit-SX LC mini-GBIC (J4858A) • Gigabit-LX LC mini-GBIC (J4859A)
* This module requires switch software version G.05.02 or later to be installed in the switch.
24
18
23
17
22
16
21
15
19
13
20
14
7
Link|Mode
Link|Mode
1
8
2
9
3
10
4
11
5
12
6
7
12 19 24
181
hp procurve
gl module
10/100-TX
J4862B
10/100-TX Ports (1-24) all ports are HP Auto-MDIX
gl
module
Remove network cable before removing or installing transceiver
1
Mode
Link
1
Mode
Link
gl
module
hp procur ve
mini-GBIC
gl module
J4893A
2 3 4 5 6
23456
3013_ed2.book Page 1 Friday, August 9, 2002 2:02 PM
