System board connections

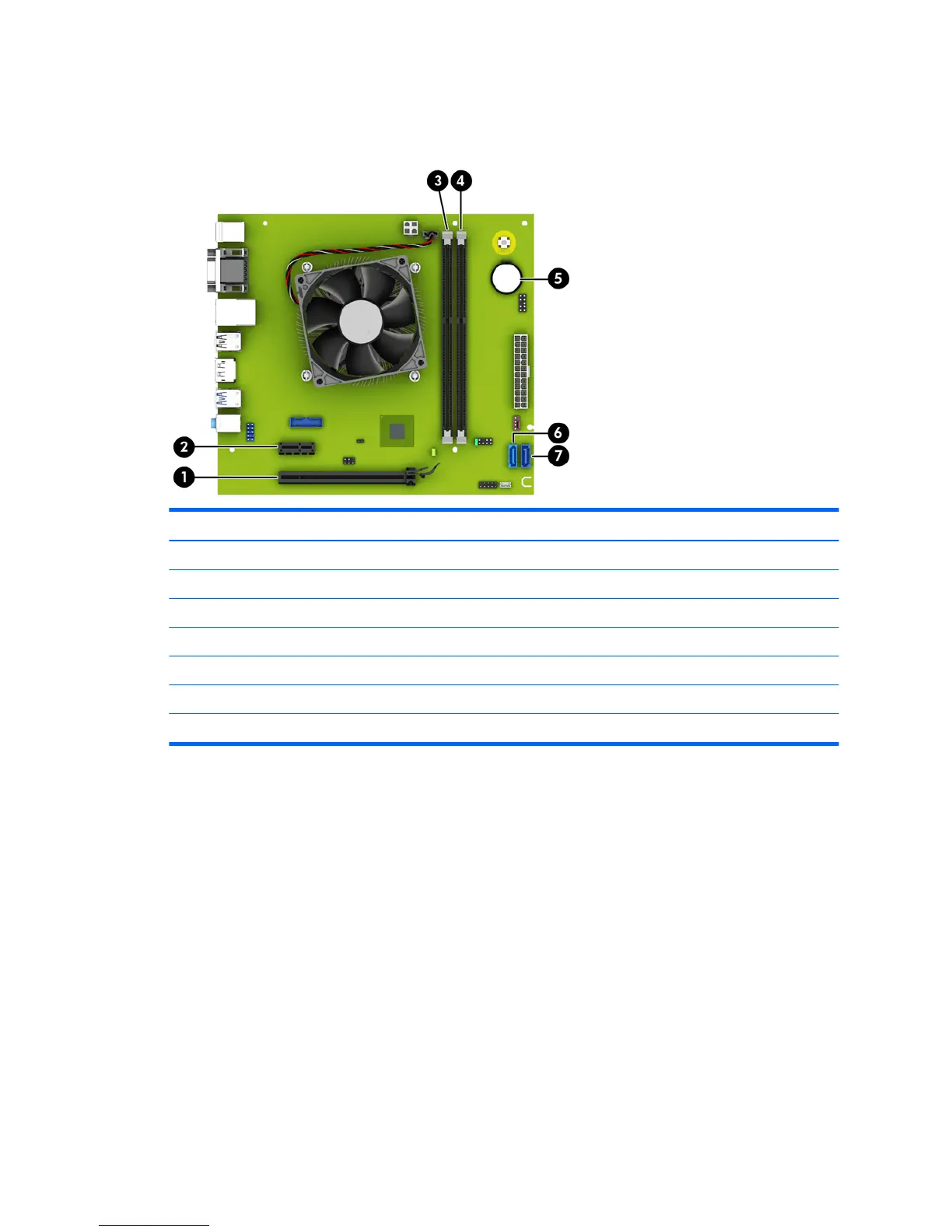

Refer to the following illustration and table to identify the system board connectors for your model.
No. System Board Connector System Board Label Color Component
1 PCI Express x16 X16PCIEXP black Expansion Card
2 PCI Express x1 X1PCIEXP1 black Expansion Card
3 DIMM3 (Channel A) DIMM3 black Memory Module
4 DIMM1 (Channel B) DIMM1 black Memory Module
5 Battery BAT black Memory Module
6 SATA 3.0 SATA1 light blue Optical Drive
7 SATA 3.0 SATA0 dark blue Primary Hard Drive
System board connections 29
