HP ProDesk 600 G1 Small Form Factor User Manual

11. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
12. Reconfigure the computer, if necessary.

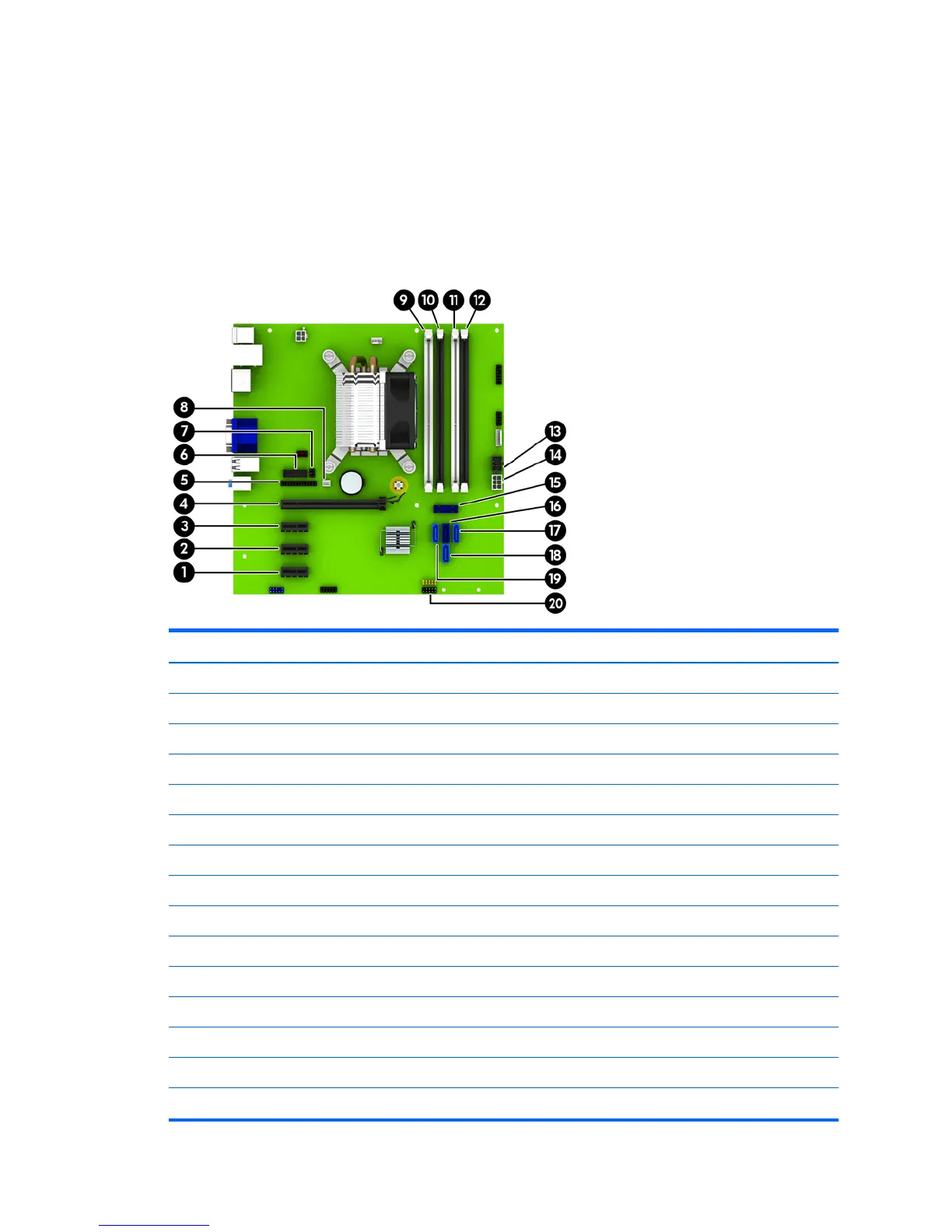

System board connections
Refer to the following illustration and table to identify the system board connectors for your model.
No. System Board Connector System Board Label Color Component
1 PCI Express x1 X1PCIEXP3 white Expansion Card
2 PCI Express x1 X1PCIEXP2 black Expansion Card
3 PCI Express x1 X1PCIEXP1 black Expansion Card
4 PCI Express x16 X16PCIEXP black Expansion Card
5 Parallel Port PAR black Parallel Port
6 Serial Port COMB black Serial Port
7 Hood Lock HLCK black Hood Lock
8 Hood Sensor HSENSE white Hood Sensor
9 DIMM4 (Channel A) DIMM4 white Memory Module
10 DIMM3 (Channel A) DIMM3 black Memory Module
11 DIMM2 (Channel B) DIMM2 white Memory Module
12 DIMM1 (Channel B) DIMM1 black Memory Module
13 Power SATAPWR0 black SATA Drives
14 Power PWR white System Board
15 USB 3.0 FRONT USB3.0 blue Front USB 3.0 Ports
System board connections
97
