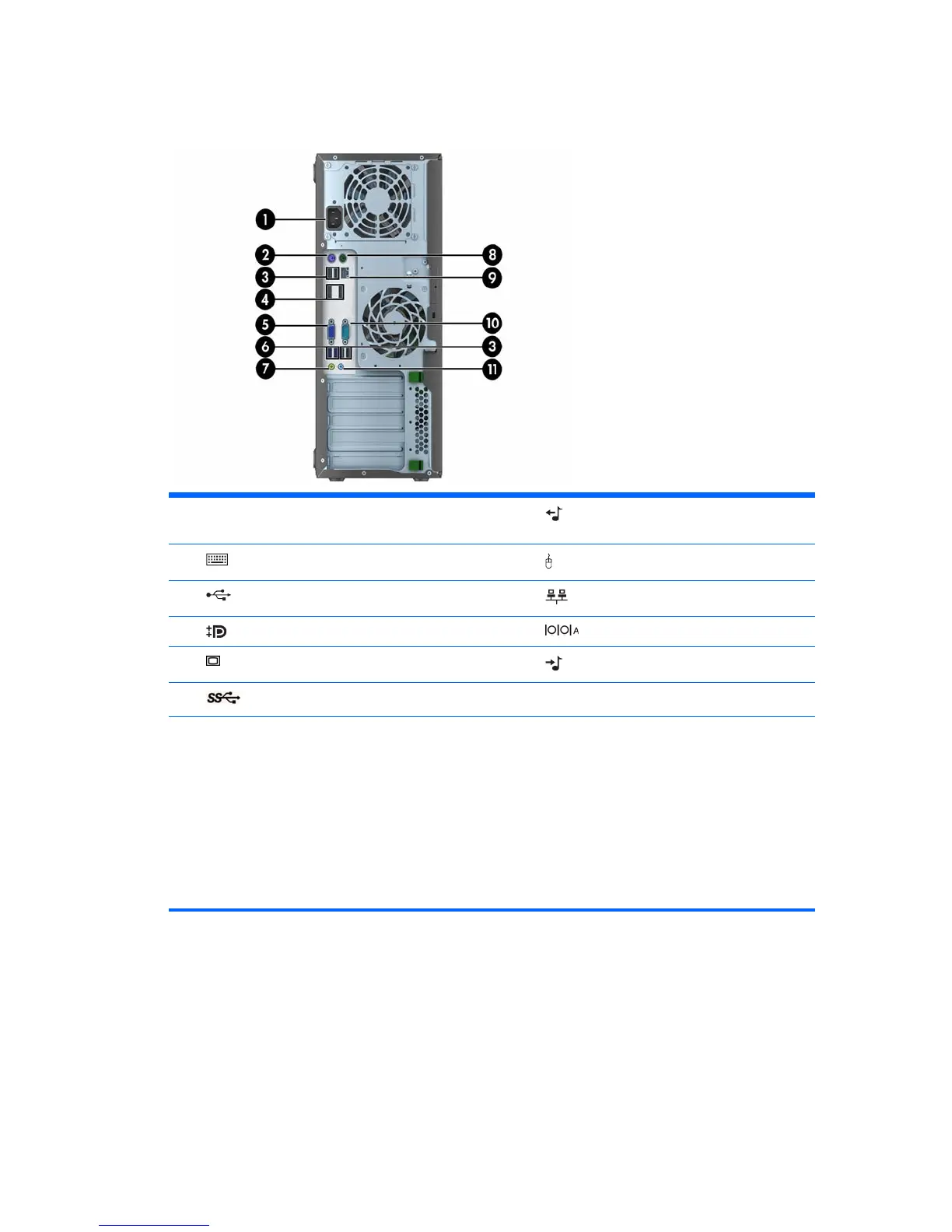

Tower (TWR) rear panel components
1 Power Cord Connector 7 Line-Out Connector for powered audio
devices (green)
2
PS/2 Keyboard Connector (purple) 8 PS/2 Mouse Connector (green)
3
USB 2.0 Ports (black) 9 RJ-45 Network Connector
4
DisplayPort Monitor Connectors 10 Serial Connector
5
VGA Monitor Connector 11 Line-In Audio Connector (blue)
6
USB 3.0 Ports (blue)
NOTE: An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking
the Audio Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and
the integrated graphics on the system board may be used at the same time. However, for such a configuration, only
the display connected to the discrete graphics card will display POST messages.
The system board graphics can be disabled by changing settings in Computer Setup.
Tower (TWR) rear panel components
5
