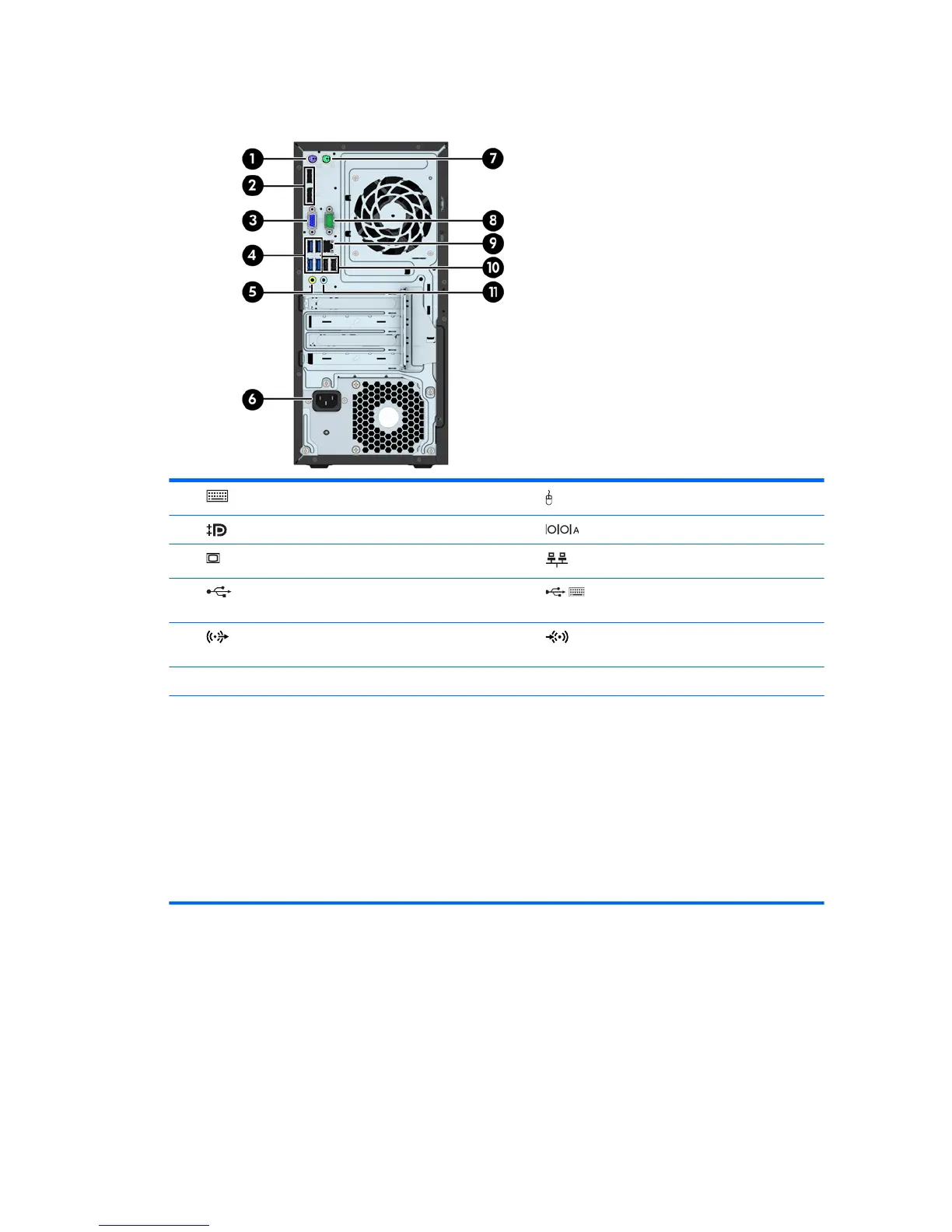

Rear panel components
1 PS/2 Keyboard Connector (purple) 7 PS/2 Mouse Connector (green)
2 DisplayPort Monitor Connectors 8 Serial Connector
3 VGA Monitor Connector 9 RJ-45 Network Connector
4 USB 3.0 Ports (blue) 10 USB 2.0 Ports with Wake from S4/S5
feature (black)
5 Line-Out Connector for powered audio devices
(green)
11 Line-In Audio Connector (blue)
6 Power Cord Connector
NOTE: An optional second serial port and an optional parallel port are available from HP.
If using a USB keyboard, HP recommends connecting the keyboard to one of the USB 2.0 ports with the wake from S4/S5
feature. The wake from S4/S5 feature is also supported on the PS/2 connectors if enabled in BIOS F10 Setup.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the
connector for a line-in device or a microphone. You can recongure the connector at any time by double-clicking the Audio
Manager icon in the Windows taskbar.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and/or the
integrated graphics on the system board may be used. The specic graphics card installed and software conguration will
determine the behavior.
The system board graphics can be disabled by changing settings in Computer Setup.
Rear panel components 3
