Component identification 11

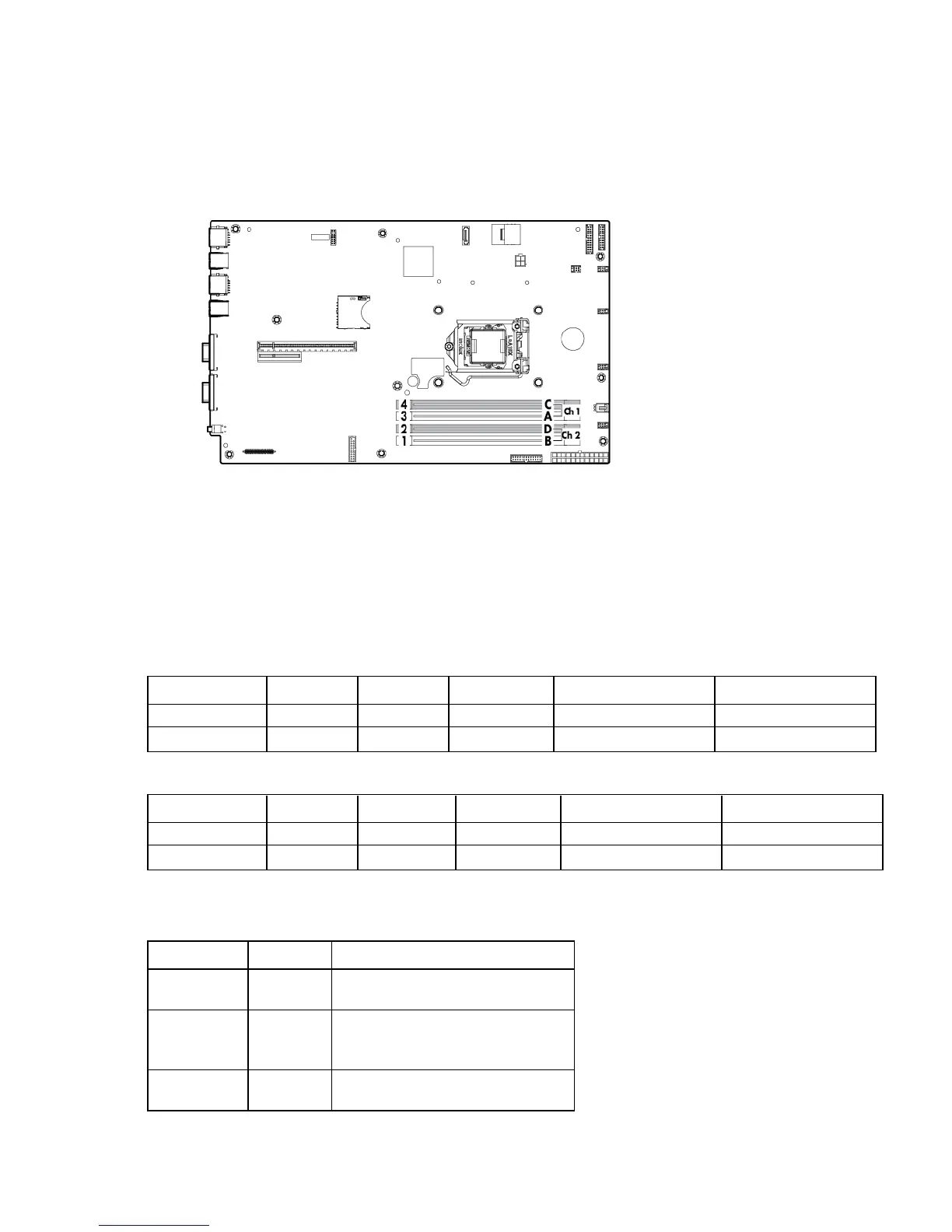

DIMM slot locations
DIMM slots are numbered sequentially (1 through 4) for the processor. The supported AMP modes use the
letter assignments for population guidelines
PCIe riser board slot definitions
The transfer rate of the PCIe riser board slot 2 depends on the processor model installed. The slot can either
run in PCIe2 (5 GT/s) or PCIe3 (8 GT/s) rate.
• Intel Xeon Processor E3-xxxx Series, Intel Core i3 Processor Series, Intel Pentium G2120, G2100T, and
G630.
Slot number Type Length Height Connector link width Negotiable link width
1
PCIe2 Half Half x8 x4
2
PCIe2 Half Full x16 x16
• Intel Xeon Processor E3-xxxxV2 Series
Slot number Type Length Height Connector link width Negotiable link width
1
PCIe2 Half Half x8 x4
2
PCIe3 Half Full x16 x16
System maintenance switch
Switch Default Function
1
Off Off = No function
On = iLO security is disabled
2
Off Off = System configuration can be
changed
On = System configuration is locked
5
Off
Off = Power-on password is enabled
On = Power-on password is disabled

HP ProLiant DL320e Specifications

General

Bus type	DMI
Stepping	E1
FSB Parity	No
Processor code	SR0PH
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V2
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor codename	Ivy Bridge
Motherboard chipset	Intel® C204
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Design Power (TDP)	69 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	31
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	- \
HDD interface	-
Total storage capacity	0 GB
Maximum storage capacity	12 TB
Number of HDDs installed	0
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Graphics card	G200
Graphics card family	Matrox
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Power supply	350 W
Power requirements	100 - 240 V
Power supply input frequency	50 - 60 Hz
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	65734
Intel TSX-NI version	0.00
Intel Identity Protection Technology version	1.00
On-board graphics card model	Not available

Weight and Dimensions

Depth	750 mm
Width	434.6 mm
Height	43.2 mm
