HP ProLiant DL320e User Manual

Component identification 14
Item LED Status Definition
Flashing blue The drive carrier firmware is being updated or requires an update.
2
Activity ring Rotating green Drive activity
Off No drive activity
3
Do not remove Solid white Do not remove the drive. Removing the drive causes one or more of
the logical drives to fail.
Off Removing the drive does not cause a logical drive to fail.
4
Drive status Solid green The drive is a member of one or more logical drives.
Flashing green The drive is rebuilding or performing a RAID migration, stripe size
migration, capacity expansion, or logical drive extension, or is
erasing.
Flashing
amber/green
The drive is a member of one or more logical drives and predicts
the drive will fail.
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.

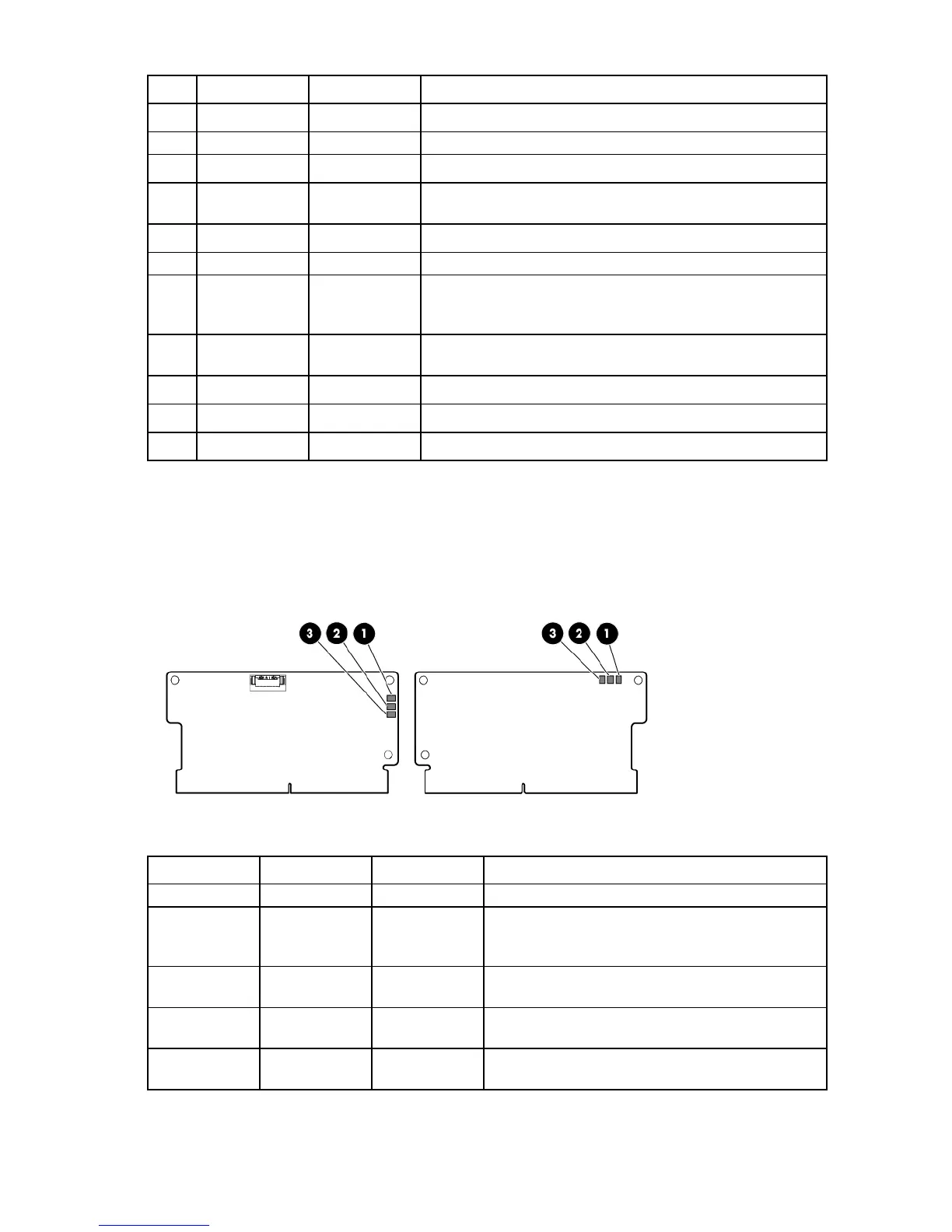

FBWC module LED definitions
The FBWC module has three single-color LEDs (one amber and two green). The LEDs are duplicated on the
reverse side of the cache module to facilitate status viewing.
1 - Amber 2 - Green 3 - Green Interpretation
Off
Off Off The cache module is not powered.
Off
Flashing 0.5 Hz Flashing 0.5 Hz The cache microcontroller is executing from within its
boot loader and receiving new flash code from the host
controller.
Off
Flashing 1 Hz Flashing 1 Hz The cache module is powering up, and the capacitor
pack is charging.
Off
Off Flashing 1 Hz The cache module is idle, and the capacitor pack is
charging.
Off
Off On The cache module is idle, and the capacitor pack is
charged.

HP ProLiant DL320e Specifications

General

Bus type	DMI
Stepping	E1
FSB Parity	No
Processor code	SR0PH
Processor cache	8 MB
Processor cores	4
Processor model	E3-1220V2
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200 v2
Processor socket	LGA 1155 (Socket H2)
Processor codename	Ivy Bridge
Motherboard chipset	Intel® C204
Processor frequency	3.1 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	1x16+1x4, 1x8+3x4, 2x8+1x4
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Design Power (TDP)	69 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	31
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Memory clock speeds supported by processor	1333, 1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
HDD size	- \
HDD interface	-
Total storage capacity	0 GB
Maximum storage capacity	12 TB
Number of HDDs installed	0
Memory slots	4x DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Graphics card	G200
Graphics card family	Matrox
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	2
PCI Express slots version	3.0
Power supply	350 W
Power requirements	100 - 240 V
Power supply input frequency	50 - 60 Hz
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 9144 m
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	ENERGY STAR
Chassis type	Rack (1U)
Processor ARK ID	65734
Intel TSX-NI version	0.00
Intel Identity Protection Technology version	1.00
On-board graphics card model	Not available

Weight and Dimensions

Depth	750 mm
Width	434.6 mm
Height	43.2 mm
