HP Spectre 13 User Manual

Solid-state drive connector board
NOTE: The solid-state drive connector board spare part kit does not include the solid-state drive connector
board cable. The solid-state drive connector board cable is available using spare part number 941842-001.
Description Spare part number
Solid-state drive connector board 941840-001
Before removing the solid-state drive connector board, follow these steps:
1. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and then
unplugging the AC adapter from the computer.
2. Disconnect all external devices from the computer.
3. Remove the bottom cover (see Bottom cover on page 30).
4. Remove the battery (see Battery on page 32).
5. Remove the solid-state drive (see Solid-state drive on page 33).

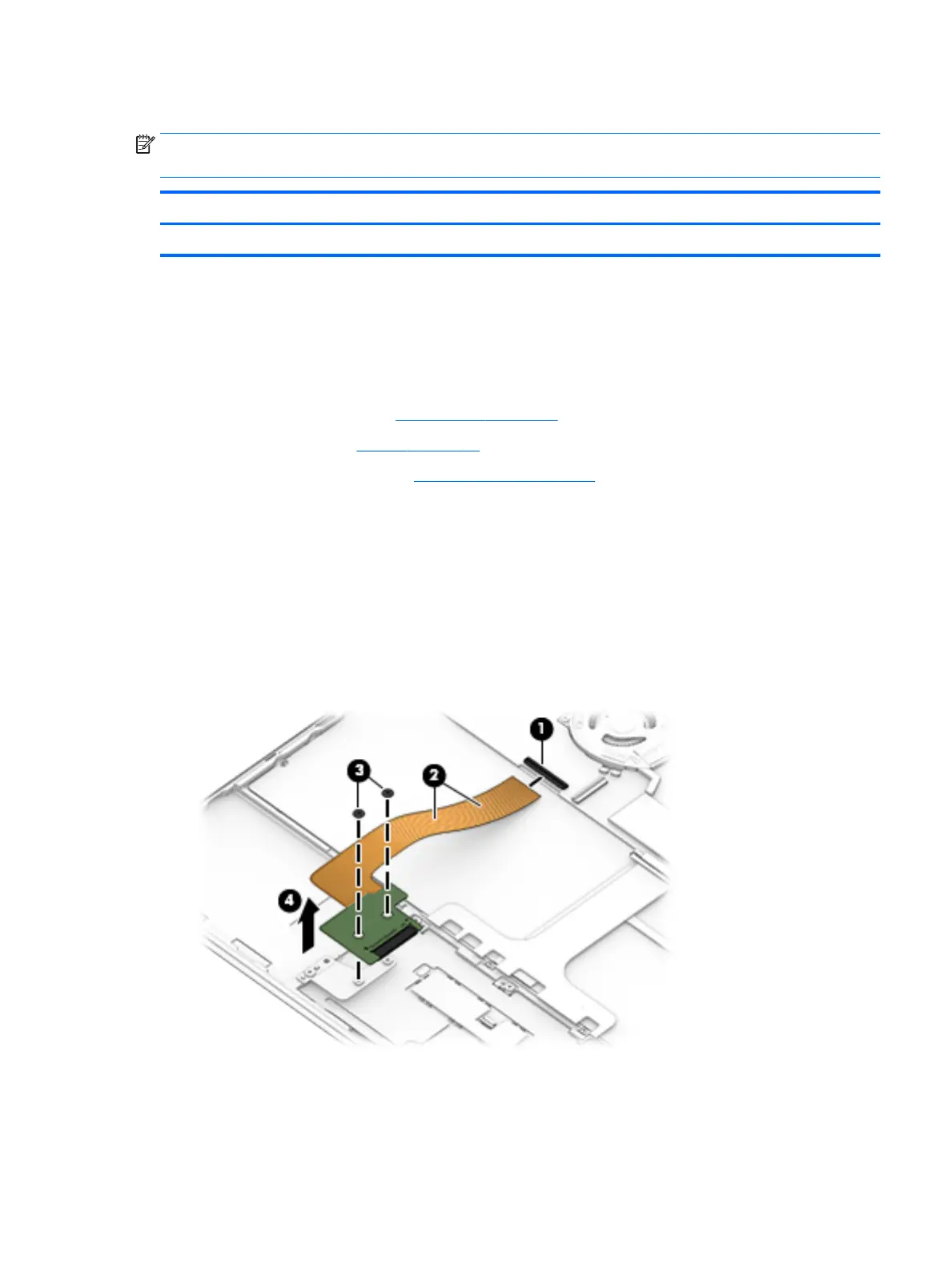

Remove the solid-state drive connector board:
1. Release the ZIF connector (1) to which the solid-state drive connector board cable is connected, and then
disconnect the solid-state drive connector board cable from the system board.
2. Detach the solid-state drive connector board cable (2) from the keyboard/top cover. (The solid-state drive
connector board cable is attached to the keyboard/top cover with double-sided adhesive.)
3. Remove the two Phillips M2.0×1.8 screws (3) that secure the solid-state drive connector board to the solid-
state drive bracket.
4. Remove the solid-state drive connector board (4).
5. If it is necessary to remove the solid-state drive brackets:
a. Remove the two Phillips M2.0×1.8 screws (1) that secure the solid-state drive brackets to
the keyboard/top cover.
Component replacement procedures 35

HP Spectre 13 Specifications

General

Form factor	Clamshell
Product type	Laptop
Product color	Silver
Housing material	Aluminium, Carbon fibre
Country of origin	China
Memory slots	1x SO-DIMM
Internal memory	8 GB
Memory clock speed	1866 MHz
Memory form factor	On-board
Internal memory type	LPDDR3-SDRAM
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	PCI Express
Storage media	SSD
SSD form factor	M.2
Card reader integrated	No
Total storage capacity	1024 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
LED backlight	Yes
Display surface	Gloss
Display diagonal	13.3 \
Native aspect ratio	16:9
On-board graphics card ID	0x5916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 620
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1050 MHz
Speakers manufacturer	Bang & Olufsen
Number of built-in speakers	2
WWAN	Not installed
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Charging port type	DC-in jack
USB 2.0 ports quantity	0
USB Sleep-and-Charge ports	3
Cable lock slot type	Kensington
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Battery capacity	38 Wh
Battery life (max)	8 h
Number of battery cells	4
Pointing device	Touchpad
Bus type	OPI
Stepping	H0
Tjunction	100 °C
Processor cache	4 MB
Processor model	i7-7500U
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor socket	BGA 1356
Processor codename	Kaby Lake
Configurable TDP-up	25 W
Processor frequency	2.7 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.9 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor code	SR2ZV
Processor ARK ID	95451
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	229 mm
Width	325 mm
Height	10.4 mm
Weight	1110 g
