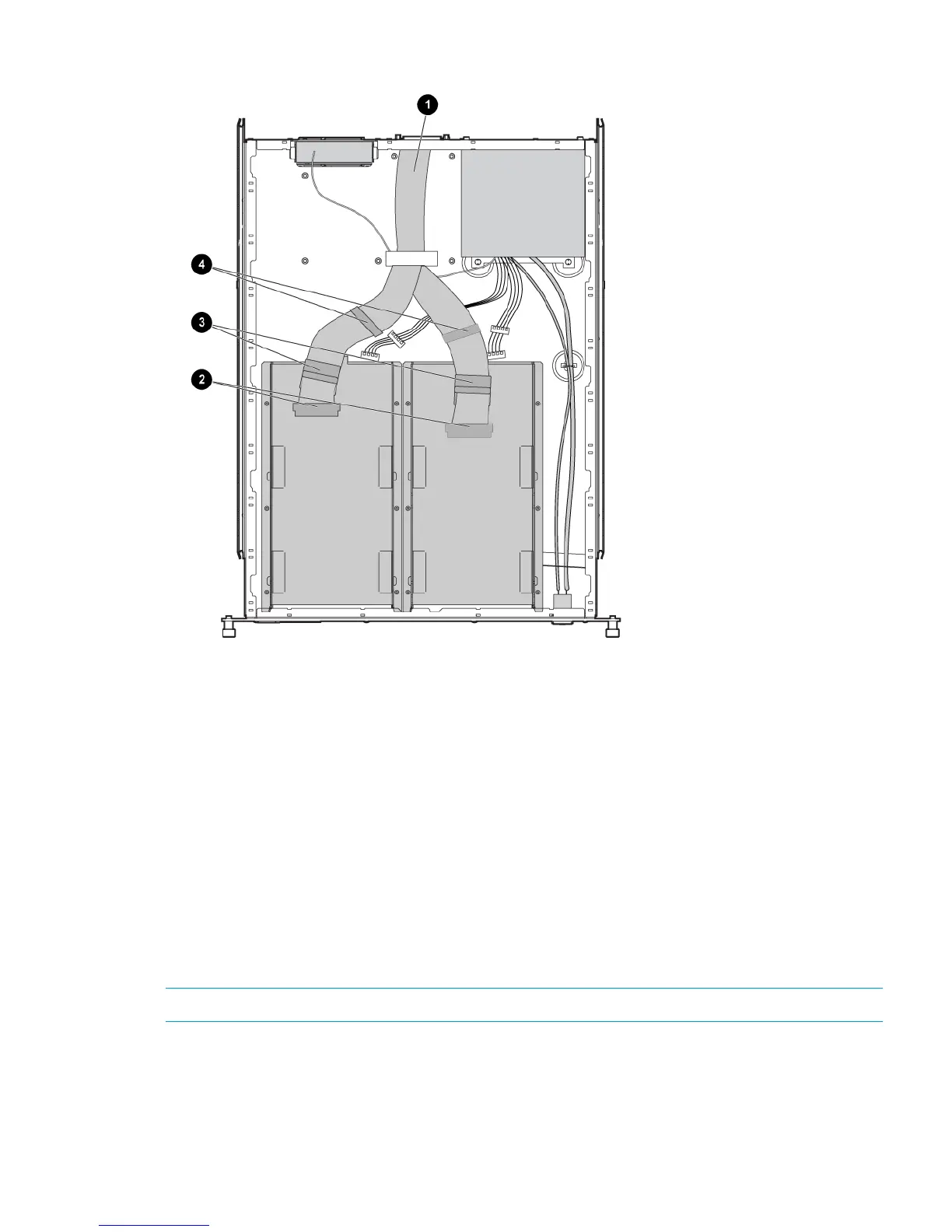

Figure 16 Cabling SCSI devices
2. SCSI terminator1. Internal SCSI cables (2 shown)
4. Second SCSI connector (only used if 2 devices per bus,
not recommended)
3. SCSI connector (always used)
Two Devices per SCSI Bus
To ensure maximum performance, one device per SCSI bus is the recommended configuration for
LTO–3 and LTO–4 drives.
If adding a second device for configurations using a single SCSI bus.
1. Unplug the SCSI cable from device 1.
2. Pass the end of the cable through internal chassis openings.
3. Plug the end port into device 2.
4. Then plug the middle port into device 1.
NOTE: The SCSI terminator is at the end of the cable and should be behind device 2.
SCSI Drive Installation 15
