Figure 17 Measuring with the template
3. Repeat steps 1 and 2 on the back of the rack.
Installing the Rails and Enclosure
To install the rails and enclosure:
1. From the rear of the rack, insert the front tabs of the spring-loaded rack rail into the proper
holes.
2. Press the rail forward and insert the rear tabs of the spring-loaded rack rail into the proper
holes. The rail locks into place securely.

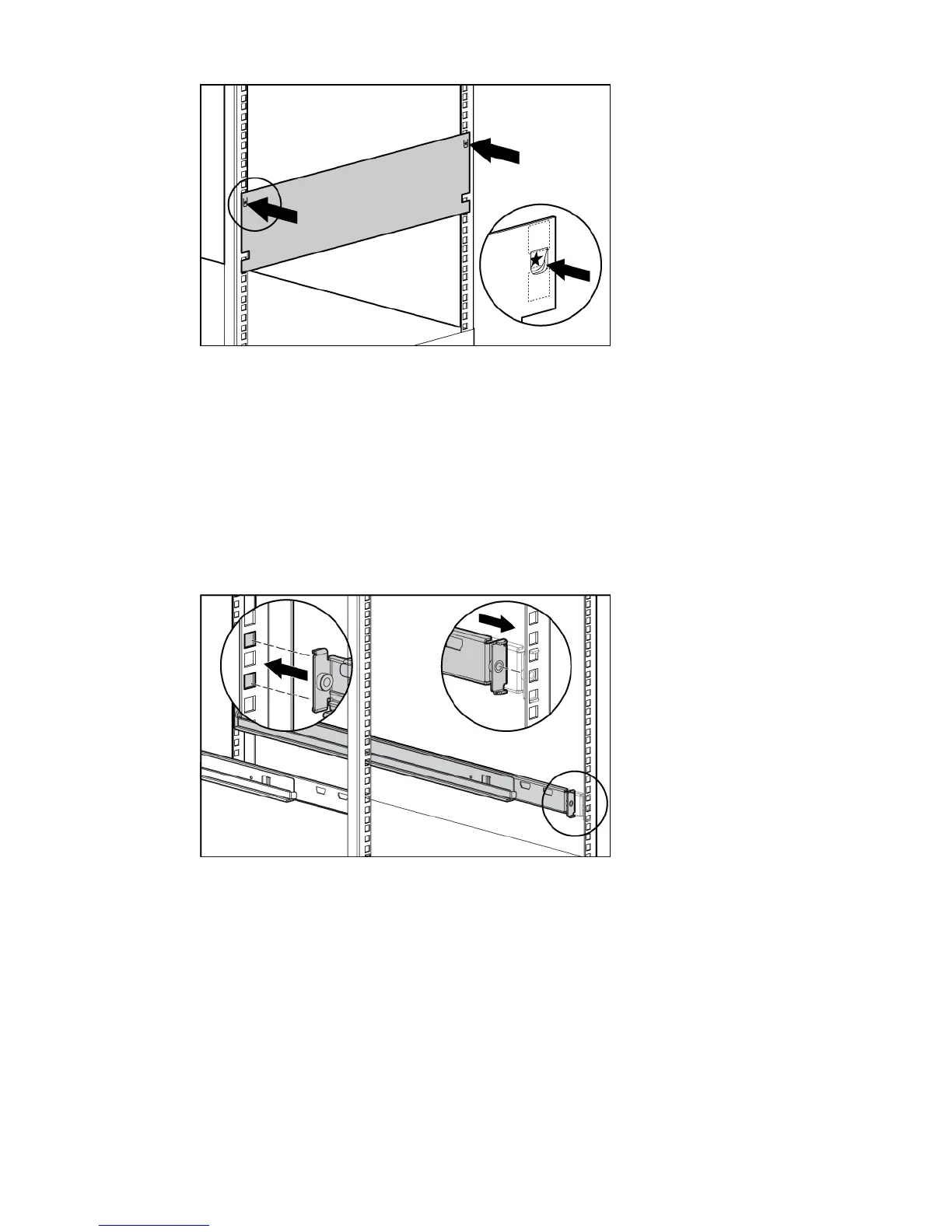

Figure 18 Aligning and inserting the spring-loaded rack rail (rear view)
3. Repeat Step 1 and Step 2 for the second spring-loaded rack rail.
4. From the rear of the rack, align the cable reel with the hole in the right spring-loaded rack rail
and secure it with an M6 x 1.0-12L Phillips screw.
Installing the 3U Rack-mount Enclosure 17
