Replacing the Metal Side Cover and Side Access Panel
To replace the metal side cover:
1. Slip the front edge of the metal side cover under the lip on the chassis, lower the front edge, and
then press the metal side cover down into place (1).
2. Insert and tighten the four screws (2).

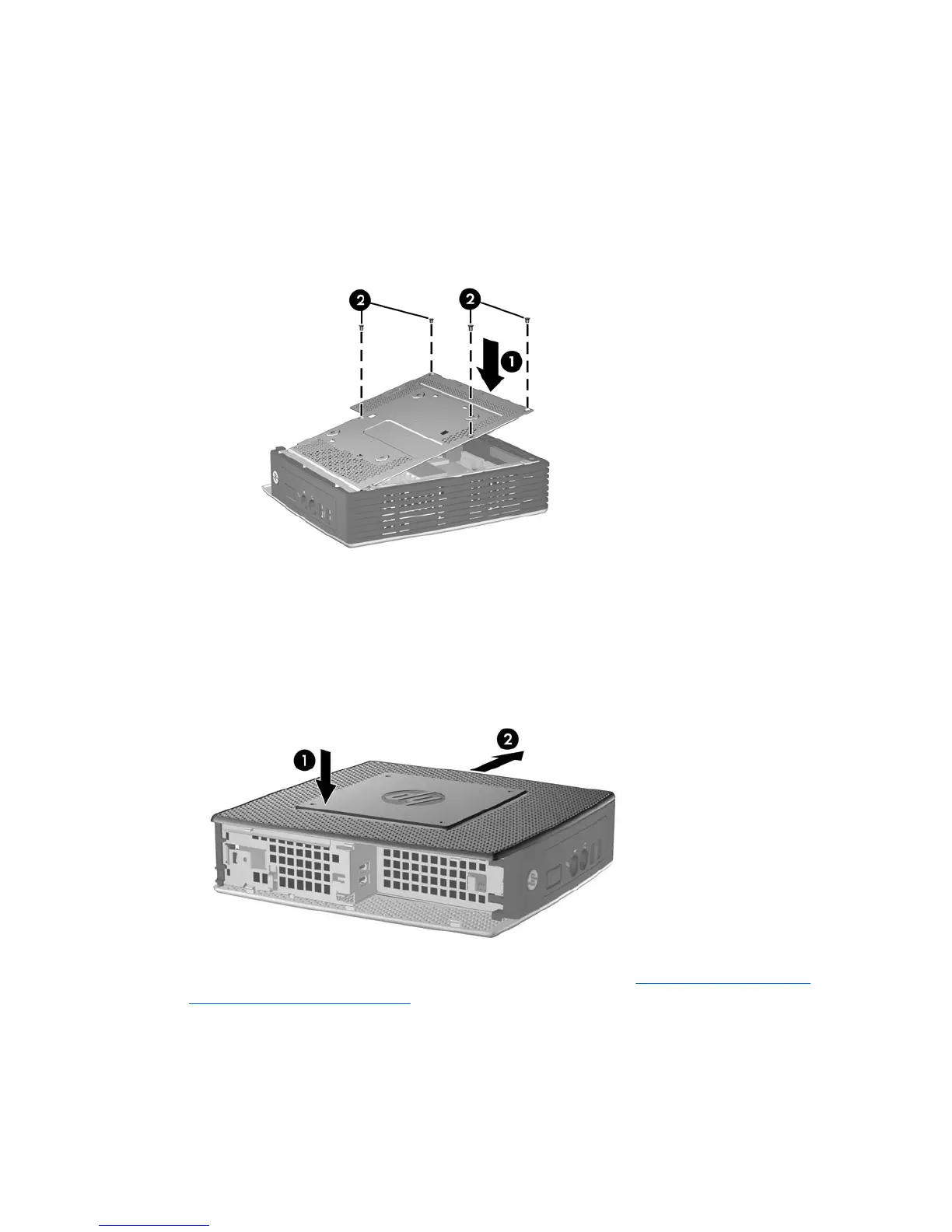

Figure 2-5 Replacing the metal side cover
To replace the access panel:
1. Align the tabs on the access panel with the slots in the chassis and place the access panel on the
side of the unit, offset about 3 mm (1/8 inch) toward the top of the unit (1).
2. Slide the access panel toward the bottom of the unit until it is flush with the bottom of the chassis
(2).
3. Replace the secure compartment cover. For more information, see Replacing the Secure USB
Compartment Cover on page 12.
14 Chapter 2 Hardware Changes
