HP t510 User Manual

3. Slide the side of the mounting device attached to the thin client (1) over the other side of the
mounting device (2) on the device on which you want to mount the thin client. An audible 'click'
indicates a secure connection.

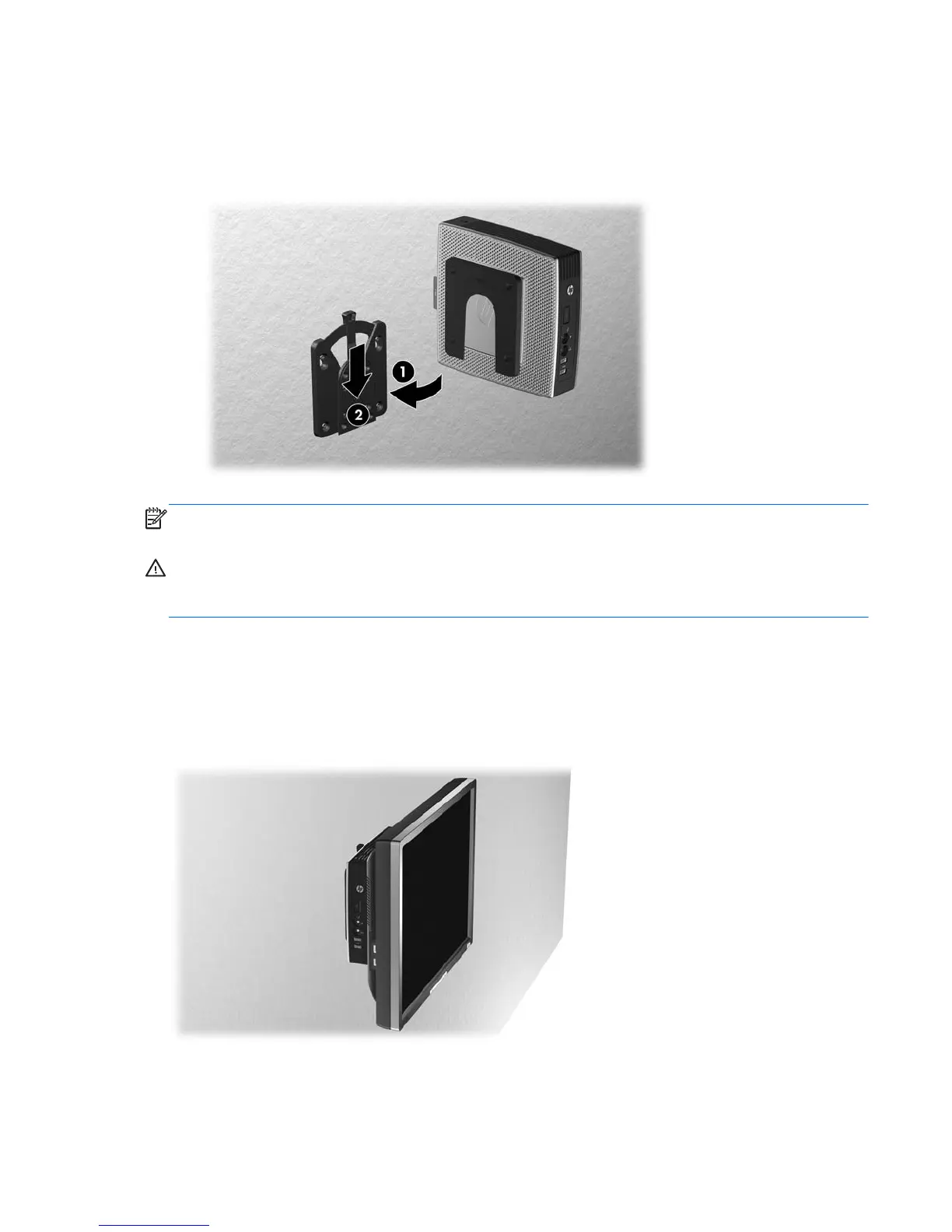

Figure C-4 Connecting the thin client
NOTE: When attached, the HP Quick Release automatically locks in position. You only need to slide
the lever to one side to remove the thin client.
CAUTION: To ensure proper function of the HP Quick Release and a secure connection of all
components, make sure both the release lever on one side of the mounting device and the rounded
opening on the other side face upward.
Supported Mounting Options
The following illustrations demonstrate some of the supported and not supported mounting options for
the mounting bracket.
Figure C-5 Thin client mounted with flat panel on wall
HP Quick Release
25

HP t510 Specifications

General

Processor cores	2
Processor model	U4200
Processor family	VIA Eden
Motherboard chipset	VIA VX900
Processor frequency	1 GHz
Storage media	Flash
Card reader integrated	No
Total storage capacity	1 GB
Internal memory	2 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Graphics card	Chromotion HD 2.0
Networking features	Gigabit Ethernet
Graphics card family	VIA
Dimensions (W x D x H) with stand	58.4 x 215.9 x 219.7 mm
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Operating system installed	-
Power supply	65 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Audio system	24-bit
Sustainability certificates	ENERGY STAR
Product color	Black
Country of origin	China

Weight and Dimensions

Depth	215.9 mm
Width	58.4 mm
Height	209 mm
Weight	1490 g
