Replacing an M.2 storage module
Two M.2 storage module sockets can be installed in the thin client:
●
A 42 mm, 60 mm, or 80 mm M.2 primary storage module may be installed in one socket.
●
A 42 mm M.2 secondary storage module may be installed in the other socket.
To remove an M.2 ash storage module:
1. Remove/disengage any security devices that prohibit opening the thin client.
2. Remove all removable media, such as USB ash drives, from the thin client.
3. Turn o the thin client properly through the operating system, and then turn o any external devices.
4. Disconnect the AC power cord from the AC outlet, and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as
the system is plugged into an active AC outlet. You must disconnect the AC power cord to avoid damage to
the internal components of the thin client.
5. Remove the stand from the thin client.
6. Lay the unit at on a stable surface with the right side up.
7. Remove the thin client access panel. See Removing and replacing the access panel on page 10
8. Locate the M.2 socket on the system board. See Locating internal components on page 13.

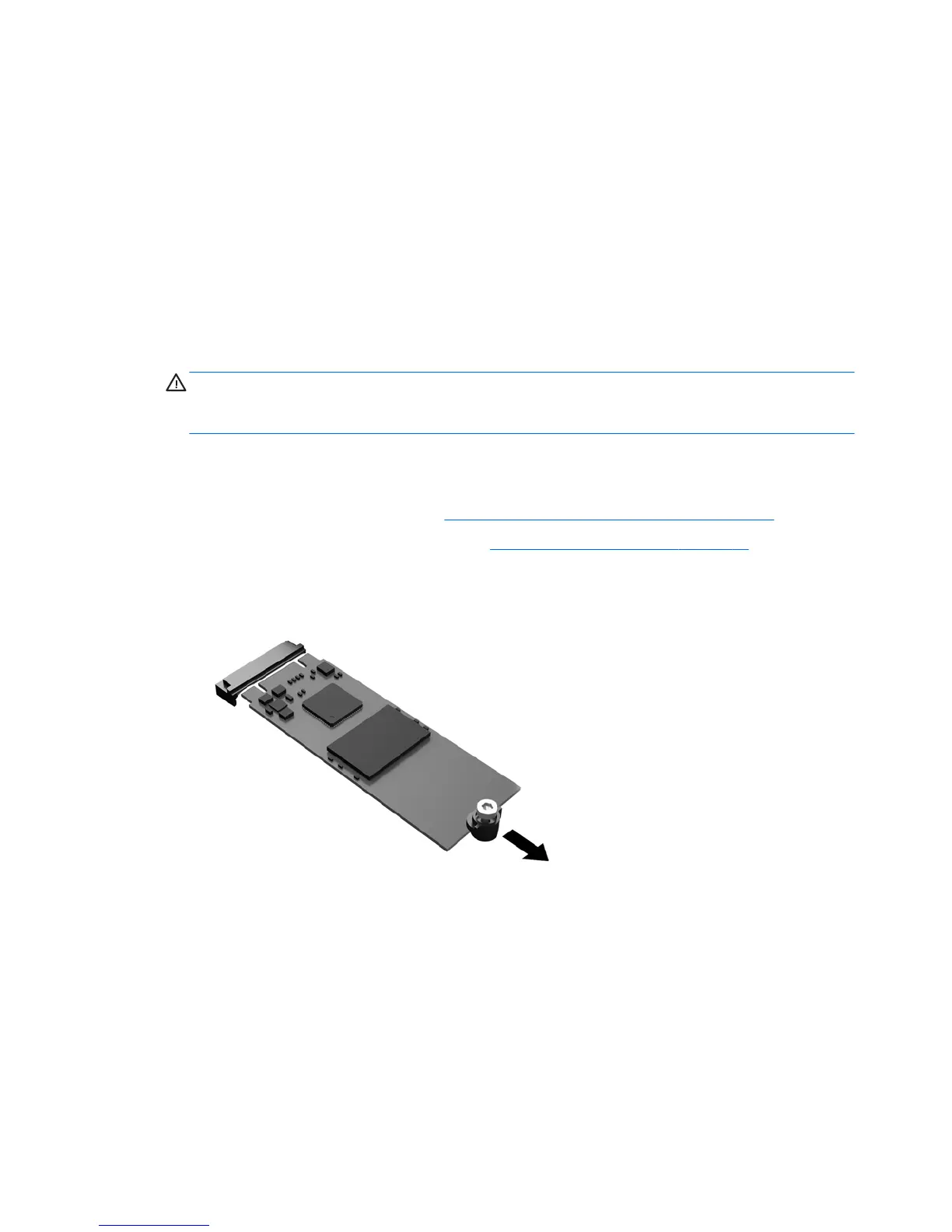

9. Loosen the screw securing the storage module until the end of the module can be raised.
10. Pull the storage module out of the socket.
14 Chapter 3 Hardware changes
