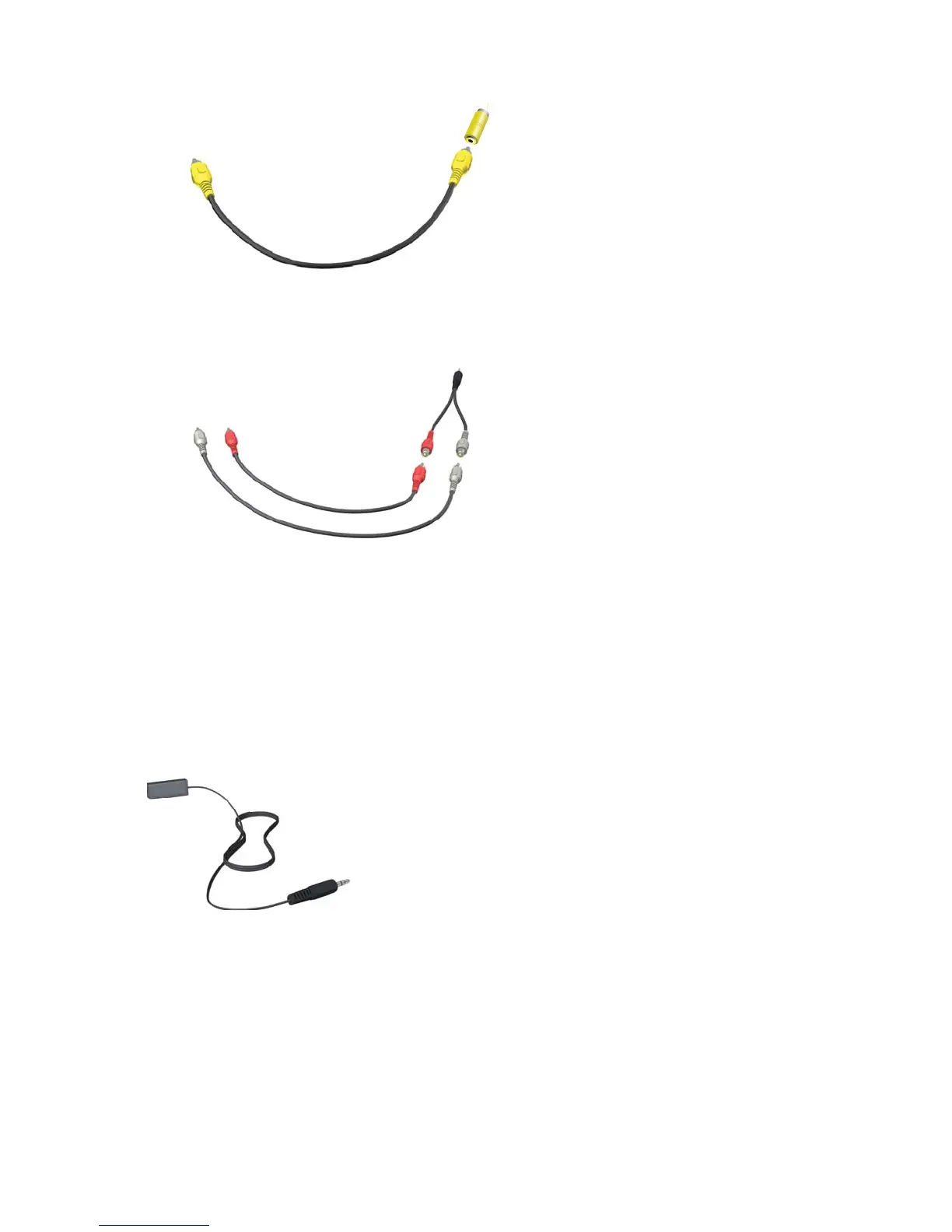

You may need a composite video to S-Video adapter (sold separately) to connect the set-top box Video
Out to the S-Video In connector (A).
.
2 For S-Video, connect audio cable from your set-top box to the Audio Line In connector (B) on the back
of the computer. Use a Y cable to combine RCA left and right channels (white and red).
Setting up for computer to communicate with a set-top box
(optional step)
You need to configure the computer connections so it can communicate with your set-top box.
Connect an IR emitter (blaster) cable to the computer and your set-top box to use the remote control
properly.
The IR emitter cable is a remote control sensing device that connects to the computer and covers the remote
sensor on a set-top box. When you are selecting TV channels in Windows Media Center, it enables the
remote control to work with your set-top box.
1 Connect the IR emitter cable (A) to the IR Out connector (D) on the back of the computer.
2 Remove the paper from the backing tape on the end of the cable (B), and then press the end of the
cable over the remote IR sensor (receiver) window on the set-top box (C). To locate the remote infrared
sensor window, shine a flashlight through the plastic on the front of the set-top box.
