Table 4 FICON/zHPF physical specifications (continued)
FICON/zHPFItem
Single Mode/9um
Multi Mode/50 or 62.5um
Cable
Distance
Single Mode/9um
10 km, 20 km (with RPQ)
Long wave
Multi Mode/ 62.5um
300m (1Gbps) / 150m (2Gbps) / 75m (4Gbps)
Multi Mode/ 50um
500m (1Gbps) / 300m (2Gbps) / 150m (4Gbps)
Short wave
LC-duplex (see Figure 1 (page 10))Connector
Point-to-Point
Switched Point-to-Point
Topologies

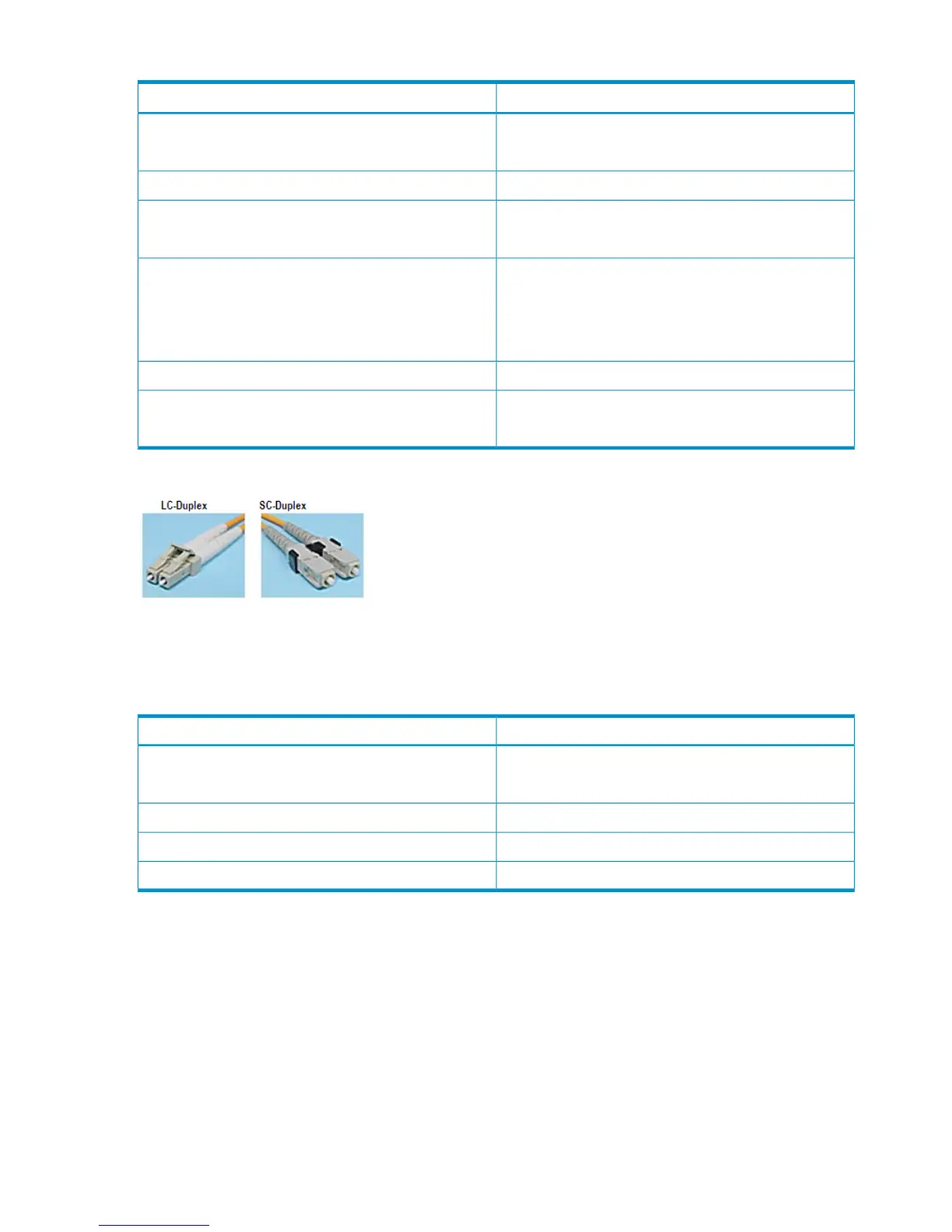

Figure 1 Fiber connectors
FICON/zHPF logical specifications
The following table compares the logical specifications of FICON/zHPF and ESCON.
Table 5 FICON/zHPF logical specifications
FICON/zHPFItem
Pipelining
Protocol interlock is reduced.
CCW handling
Multiple I/Os execute concurrently per one channelNumber of concurrent I/Os
16,384 devices per channelAddressing
Full-duplexData transfer
Connectivity improvements in FICON/zHPF:
• The interlock between the host and RAID is lowered in terms of the protocol.
• Throughput is increased using multiple I/O process and bi-directional data transfer.
• Increases in the number of the connectable devices per channel.
FICON/zHPF operating environment
The following table lists the operating environment required for FICON/zHPF. For more information
about FICON/zHPF operating environments, including supported hosts and operating environments,
see the IBM Redbooks.
10 FICON/zHPF host attachment
