AP4050DN-HD
Hardware Installation and Maintenance Guide 2 AP Installation
Issue 01 (2016-04-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
Ensure that the AP is securely installed on the mounting bracket and there must be 200 mm space
above and around the AP for maintenance.
The angle-adjustable mounting bracket can adjust the AP's angle within ±60° at the vertical and
horizontal directions.

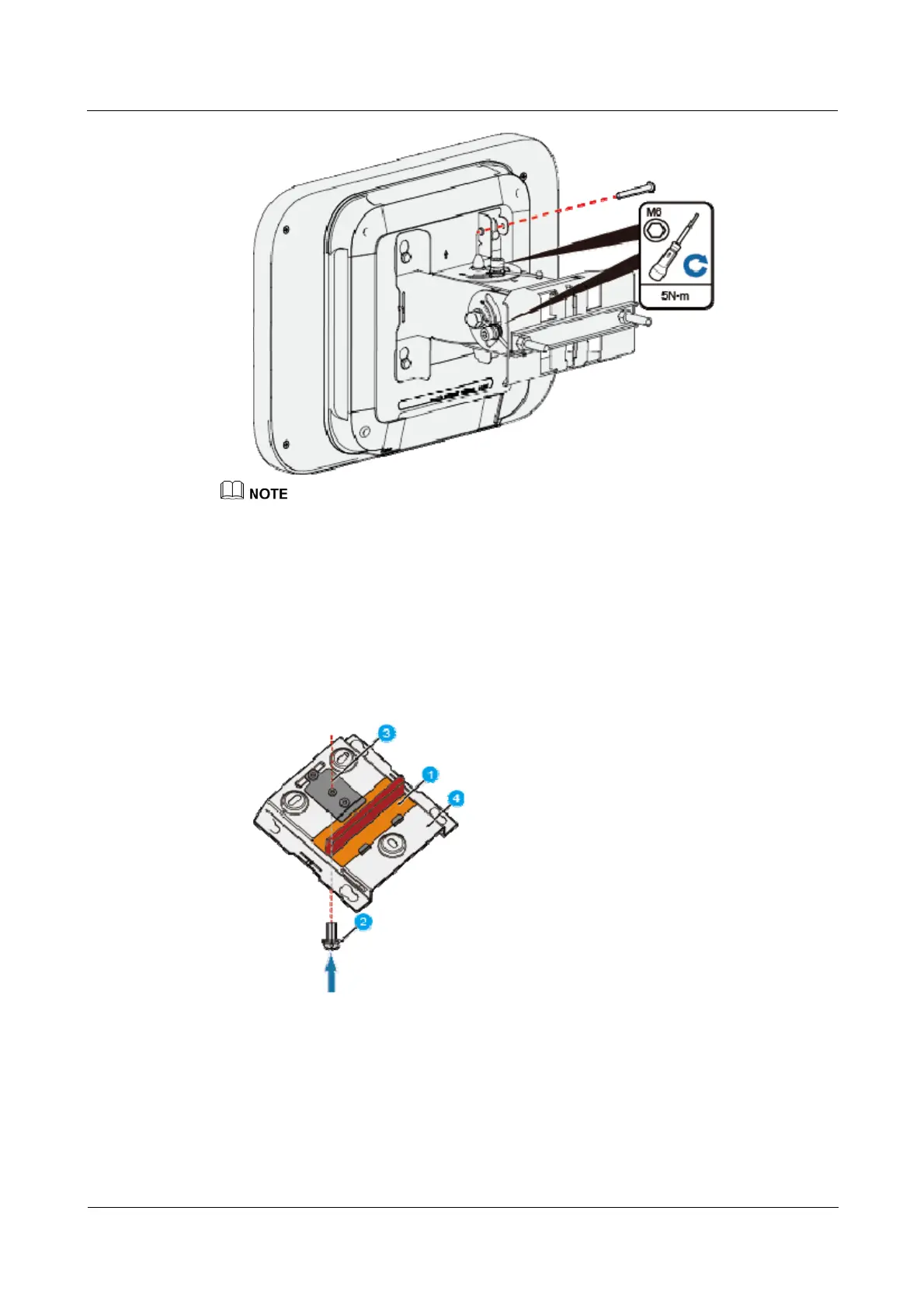

2.5.3 Installing the device on a T-rail
The AP can be installed on a T-rail indoors using a fixed mounting bracket.
1. Remove two ceiling tiles around the T-rail, use screws to fix the adjustable buckle to the
mounting bracket, hook the adjustable buckle to the T-rail, and secure the screw on the
adjustable buckle to fasten the mounting bracket and T-rail.
2. Connect the cables. For details, see 2.6 Cable Connection.
3. Hang the AP on the mounting holes by aligning the mounting screws at the rear of the
AP with the mounting holes on the bracket and push the AP horizontally to secure the
AP.
