User Manual
EchoLife HG520 Home Gateway
Chapter 5 Advanced Setup
Huawei Technologies Proprietary
36
5.3 Configuring NAT
Three functions are supported in NAT: Virtual Servers,Port
Triggering, and DMZ Host.
5.3.1 Virtual Servers Configuration

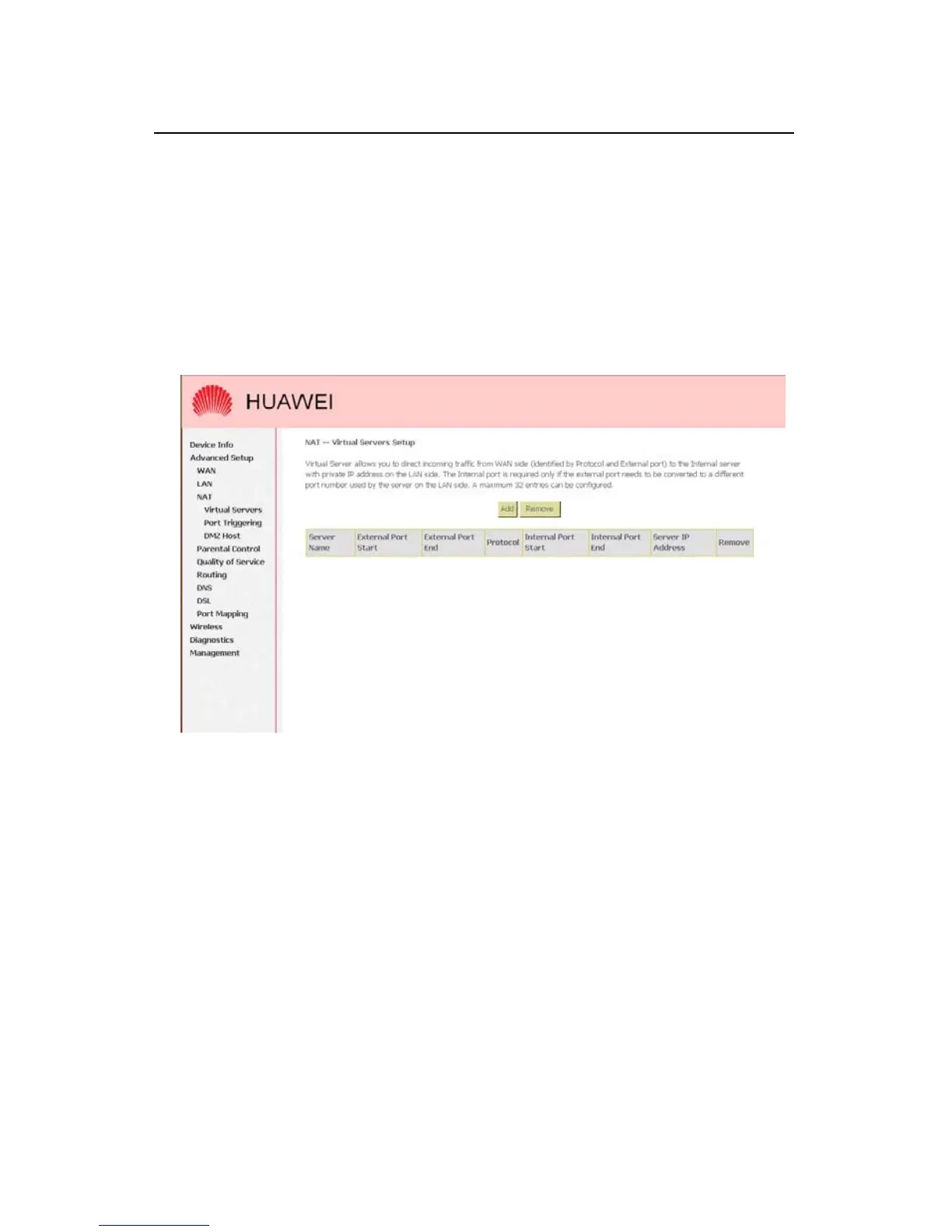

Figure 5-2 Advanced Setup – NAT
Virtual Server allows you to direct incoming traffic from WAN side
(identified by Protocol and External port) to the Internal server with
private IP address on the LAN side. The Internal port is required only if
the external port needs to be converted to a different port number
used by the server on the LAN side. Up to 32 entries can be
configured.
