User Manual
EchoLife HG520 Home Gateway
Chapter 5 Advanced Setup
Huawei Technologies Proprietary
49
5.6.1 Default Gateway Configuration

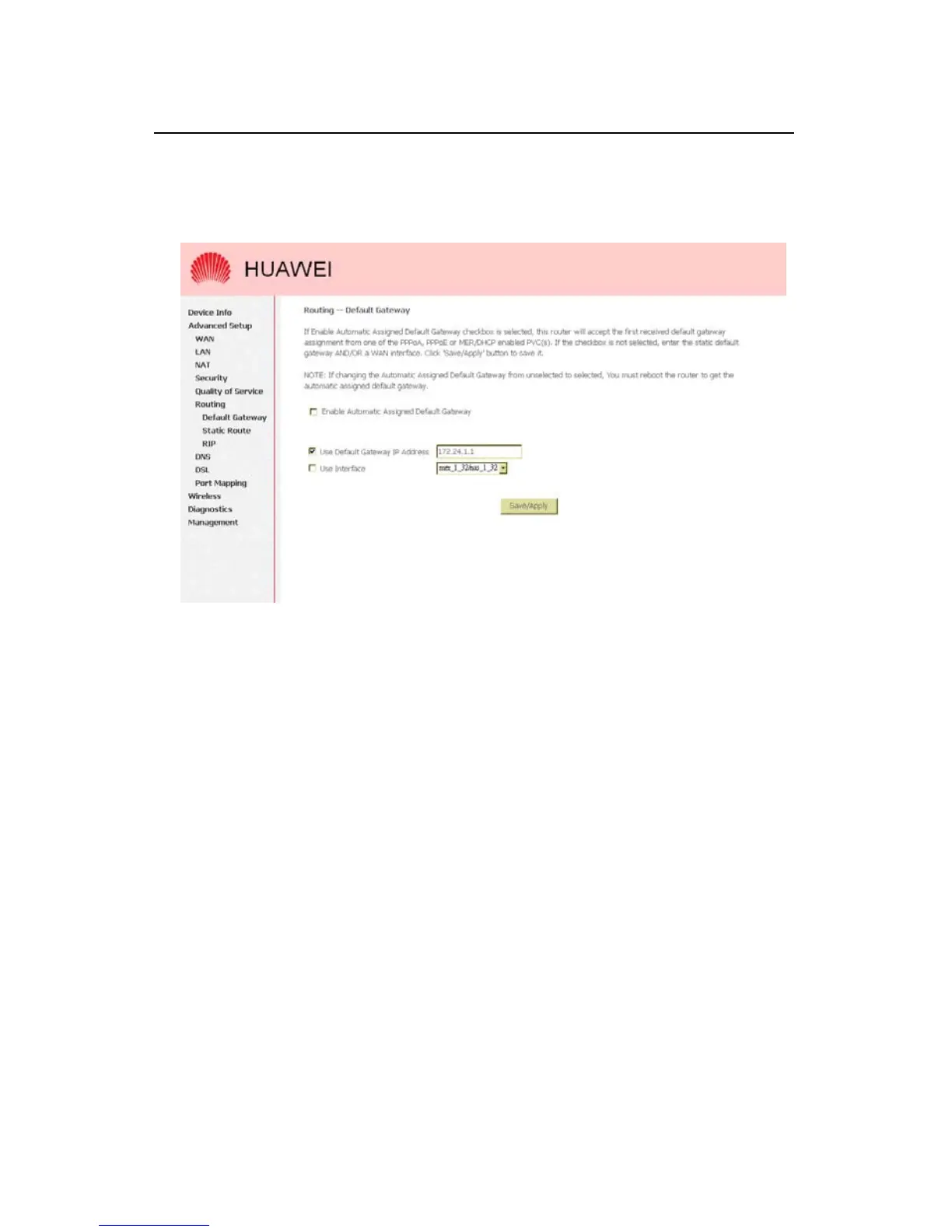

Figure 5-15 Advanced Setup – Routing – Default Gateway
1) If “Enable Automatic Assigned Default Gateway” checkbox
is selected, HG520 will accept the first received default
gateway assignment from one of the PPPoA, PPPoE or
MER/DHCP enabled PVC(s).
2) If the checkbox is not selected, enter the static default
gateway AND/OR a WAN interface.
3)
Click <Apply> button to save it.
