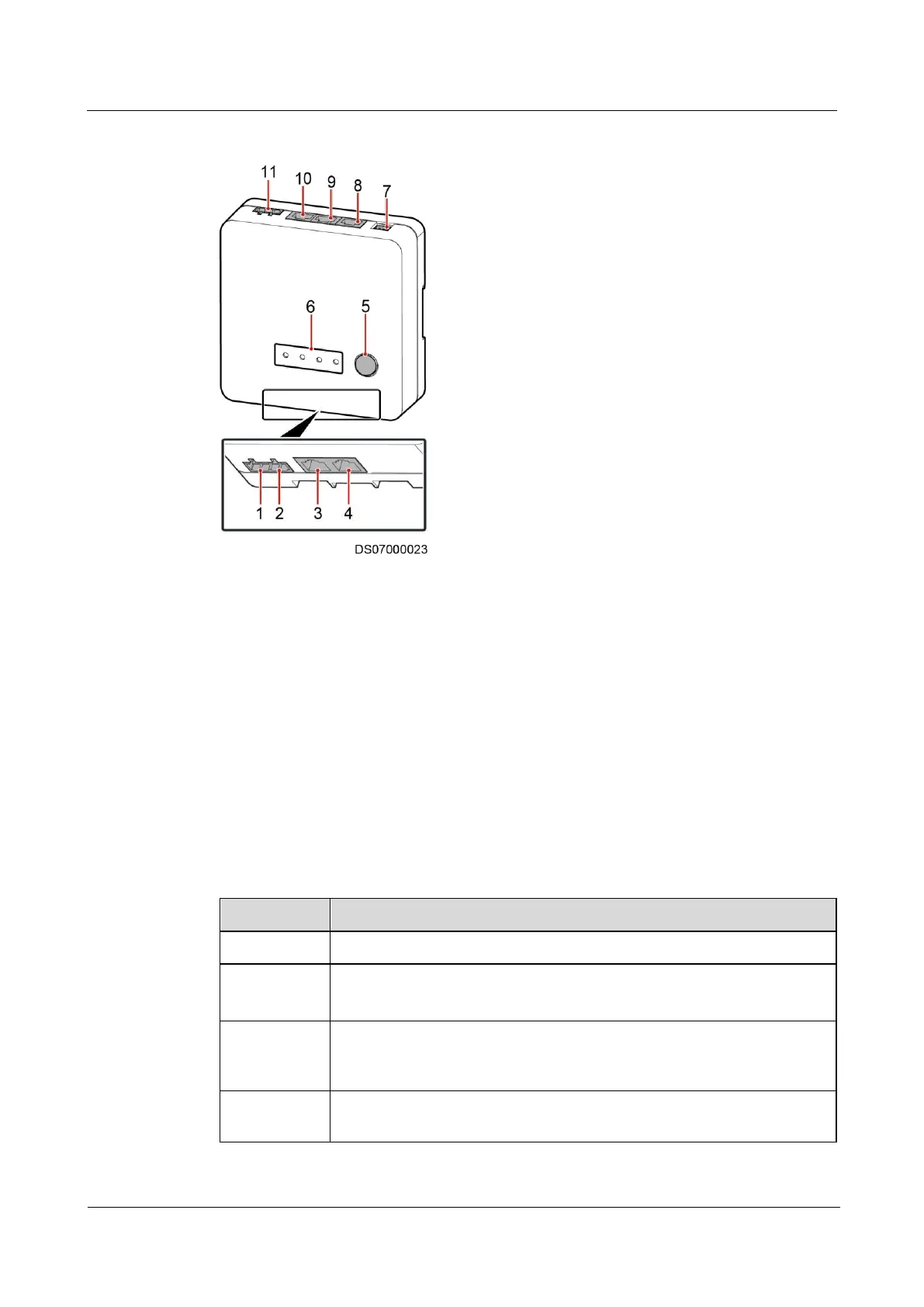

Figure 3-53 Skylight actuator
(1) LOCK/GND
magnetic lock DO
output port
(2) BUTTON/GND
window open button DI
input port
(3) AI/DI_1 sensor
input port
(4) AI/DI_2 sensor
input port
(5) BLINK button
(6) Status indicator
(7) Address DIP
switch
(8) COM1 RS485
port
(9) COM2 RS485
port
(10) PoE port
(11) 48 V power
port
Specifications
Table 3-46 lists the skylight actuator environmental specifications.
Table 3-46 Skylight actuator technical specifications
Item
Specifications
Power input
36–60 V DC input voltage, phoenix terminal
PoE port
⚫
FE communication with the rate of 10/100M
⚫
36–60 V DC power input
Wireless
communicatio
n
One wireless port that complies with IEEE802.15.4, mutual backup with
FE communication
AI/DI port
Two AI/DI ports for detecting fire extinguishing linkage signals; smoke
detection signals also supported
