5.5 (Optional) Installing the Power Cable of the
Tracking System
Precautions
● The tracking system obtains power from the AC three-phase power grid. The
rated voltage of the power supply is the rated output voltage of the solar
inverter.
● Keep
inammable materials away from the power cable.
● The power cable must be protected with a conduit to prevent short circuits
caused by insulation layer damage.
● Connect the power cable of the tracking system before the AC output power
cable. Otherwise, reworking will be caused.
Procedure
Step 1 Prepare a cable.
Step 2 Remove the corresponding rubber rings.
Step 3 Connect the power cable of the tracking system.

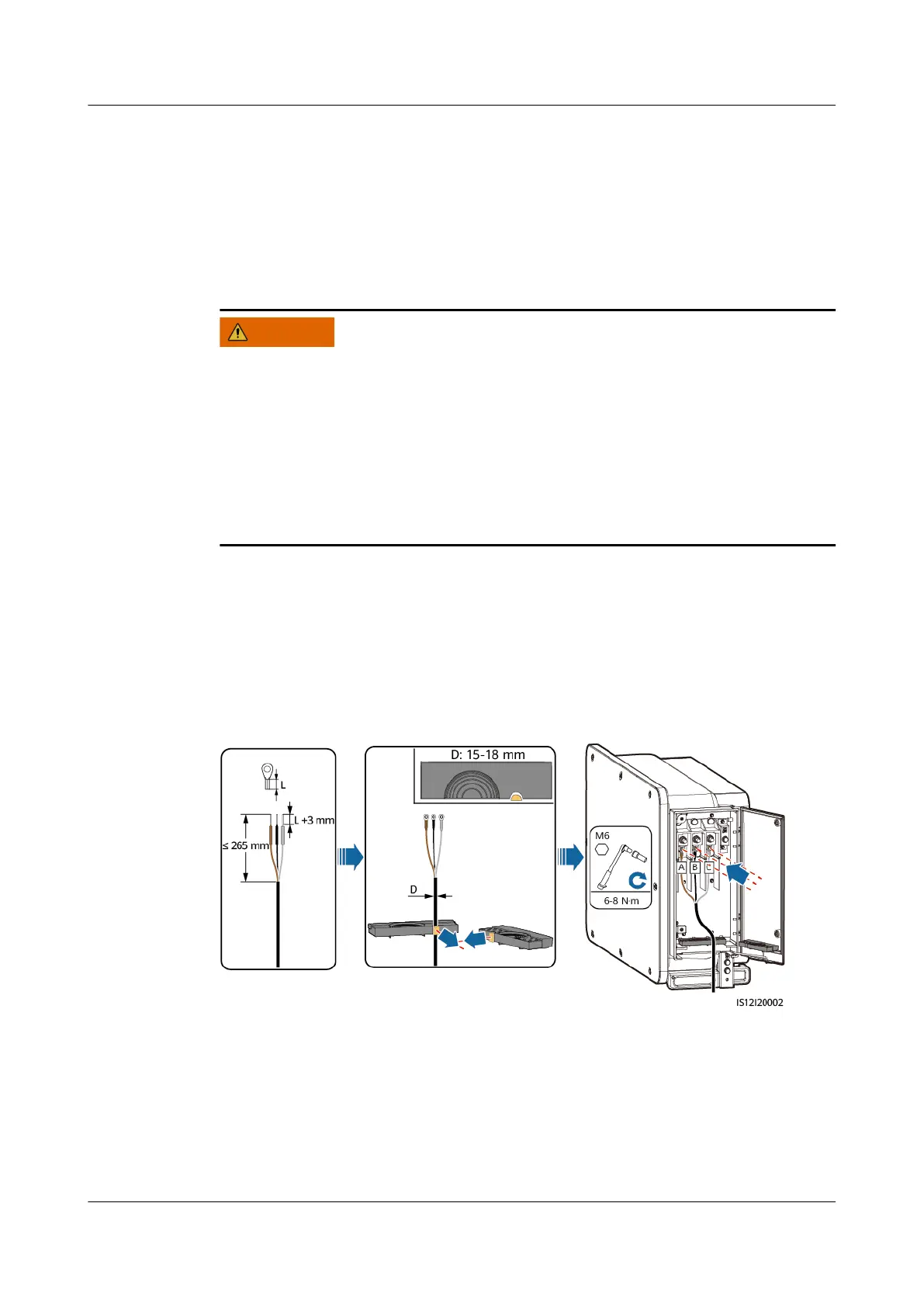

Figure 5-11 Connecting the power cable of the tracking system
----End
