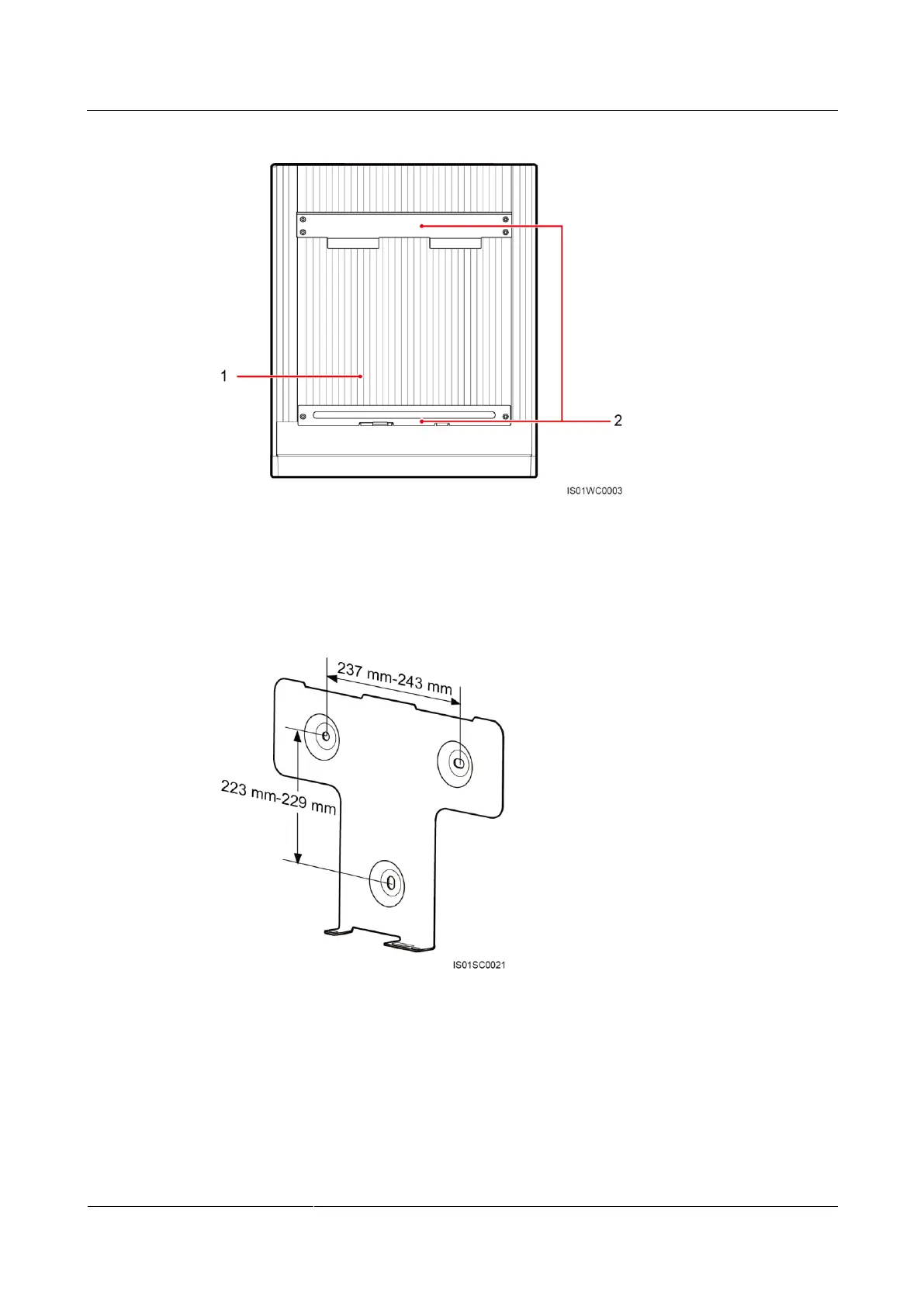

Figure 4-5 SUN2000 rear view
Figure 4-6 shows the dimensions of holes in the rear panel of the SUN2000.
Figure 4-6 Dimensions of holes in the SUN2000 rear panel
Procedure
Step 1 Determine the positions for drilling holes using the rear panel in the packing case, and mark
the hole positions using a marker, as shown in Figure 4-7.
