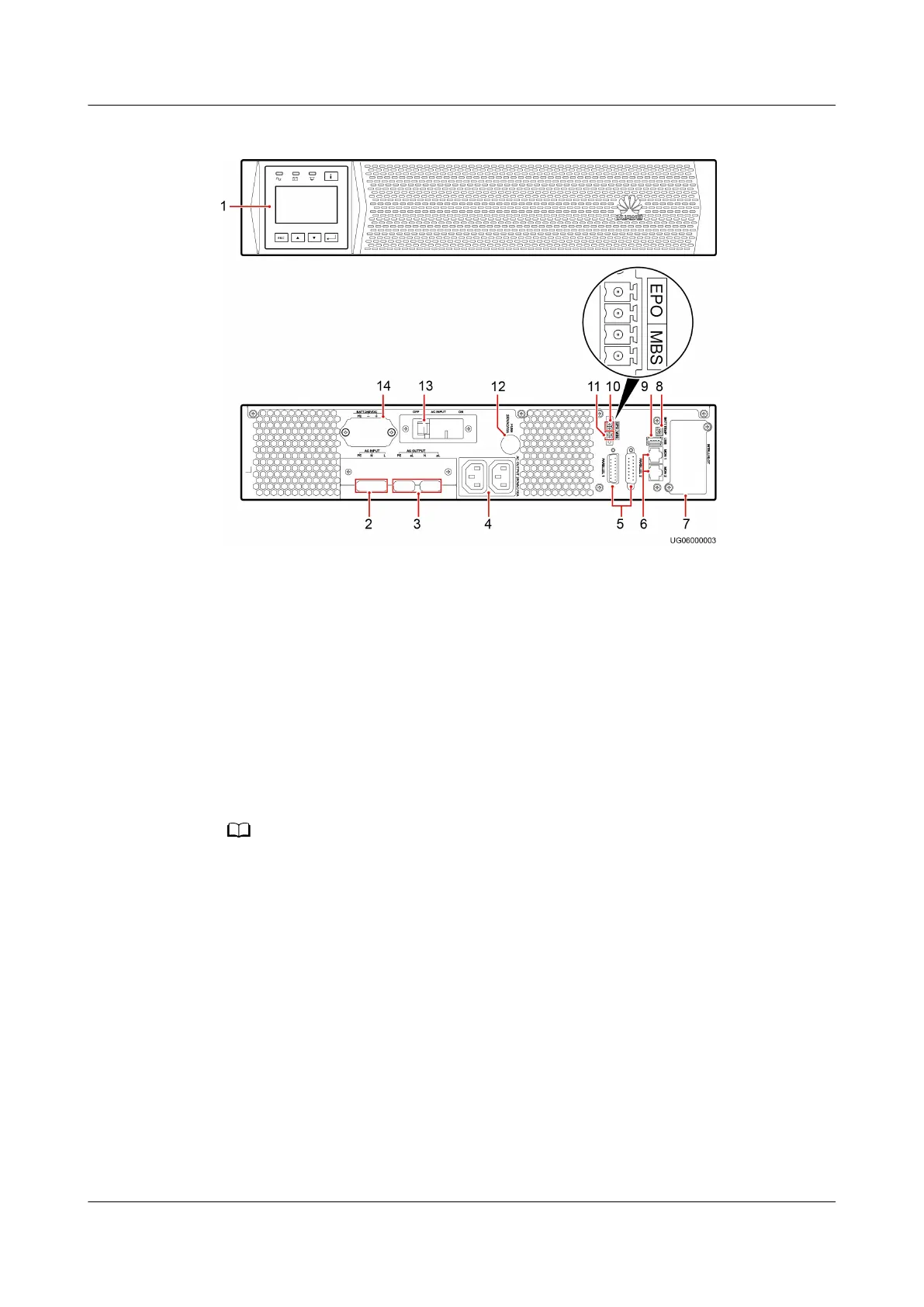

Figure 2-3 Front and rear views of the UPS2000-G-6 kVA
(1) Control panel (2) AC input port (3) AC output ports
(pL and sL)
(4) Output sockets
(5) Parallel ports (6) Control area
network (CAN)
communications ports
(MON1 and MON2)
(7) Optional card slot (8) Battery
temperature sensor
port
(9) USB port (security
protection mechanism
supported)
(10) Emergency
power-o (EPO) port
(11) Maintenance
bypass port (MBS)
(12) Fuse base
(13) Input circuit
breaker
(14) Battery port
● The total load current supported by the two output sockets (C13) cannot exceed 10 A.
● The fuse used on the UPS2000-G-6 kVA meets the 250V-10A-IEC
specications.
