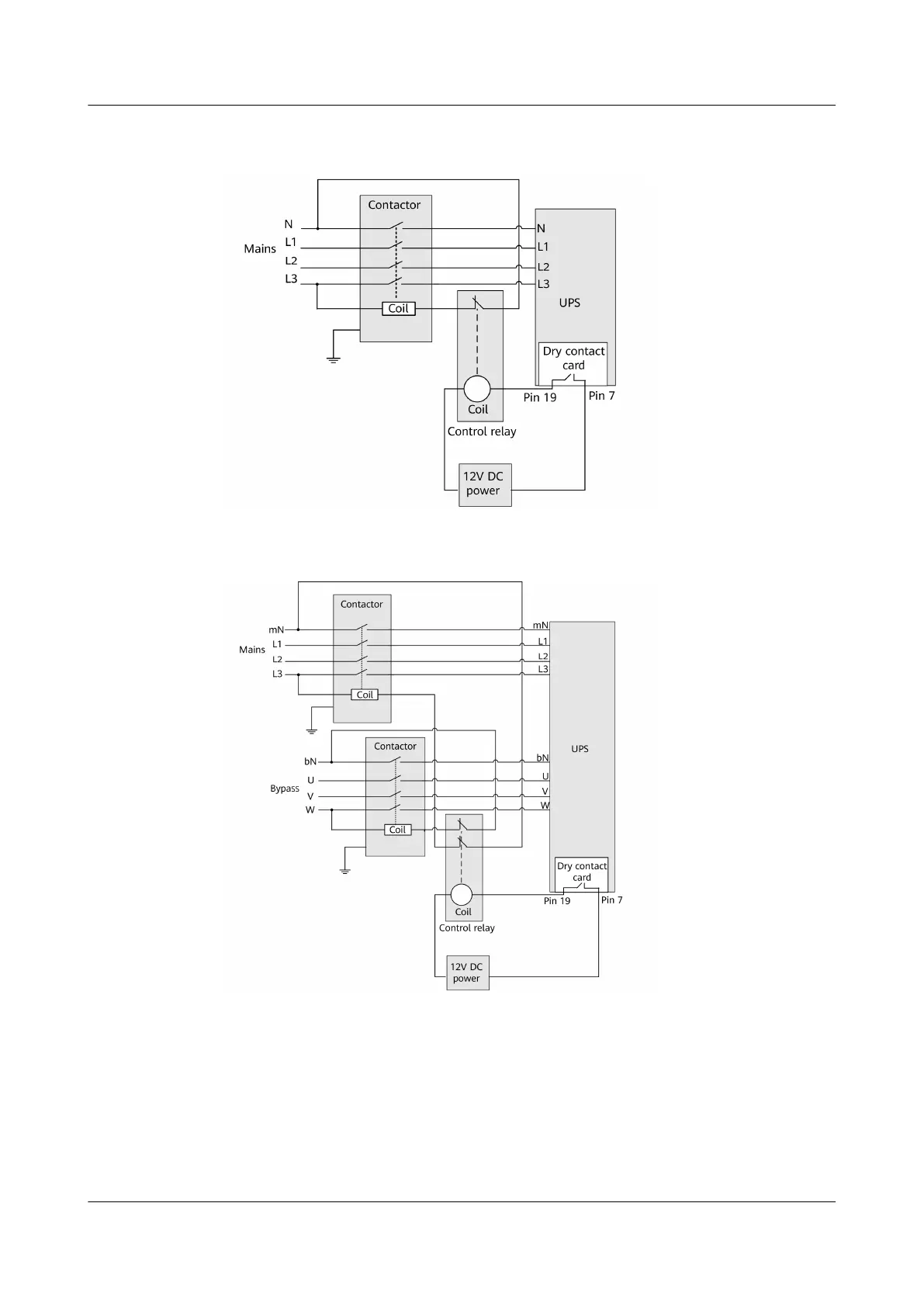

Figure 3-8
Bypass backf
eed protection connections for the UPS2000-G-10 kV
A
(three-phase input single-phase output)
Figure 3-9
Bypass backf
eed protection connections for the UPS2000-G-15 kV
A/20
kV
A (three-phase input thr
ee-phase output)
UPS2000-G- (6 kVA-20 kV
A)
User Manual
3 Installation
Issue 18 (2021-07-16)
Copyright © Huawei T
echnologies Co., Ltd.
38
45
47
Table of Contents
About this Document
3
Table of Contents
6
1 Safety Information
9
General Safety
9
Personnel Requirements
11
Electrical Safety
12
Installation Environment Requirements
13
Mechanical Safety
14
Equipment Operating Environment
14
Battery Safety
16
2 Quick Introduction
19
Model Description
19
Working Principle
20
Conceptual Diagram
20
Working Modes
20
Appearance
22
Optional Components
26
3 Installation
33
Preparations
33
Site
33
Tools
36
Power Cables
38
Unpacking and Checking
42
Installation Procedure
43
Installing a Backfeed Protection Device
43
Backfeed Protection Device Specifications
43
Feedback Prevention Connections (with Dry Contract Control)
45
Verifying the Installation
47
4 Control Panel
49
Introduction
49
Indicators
50
Functional Buttons
51
Lcd
52
LCD Startup Screen
53
LCD Menu Hierarchy
55
Status Screen
56
Alarms Screen
63
Settings Screen
64
Basic Settings Screen
65
Communication Card Screen
65
System Parameters Screen
68
Battery Parameters Screen
77
Restoring Factory Settings
90
Control Screen
90
About Screen
93
5 Operations
95
Checking before Powering on the UPS
95
Single UPS Operations
95
Installing Cables
95
Starting the UPS
96
Shutting down the UPS
100
Performing EPO
101
Parallel System Operations
101
Installing Cables
101
Starting the Parallel System
103
Shutting down the Parallel System
106
Performing EPO
107
6 Communications
109
Optional Communications Components
109
SNMP Card
109
Modbus Card
110
Dry Contact Card
110
7 Routine Maintenance
111
UPS Maintenance
111
Battery Maintenance
113
8 Troubleshooting
118
9 Technical Specifications
121
Physical Specifications
121
Environmental Specifications
121
Mains Input Electrical Specifications
122
Bypass Input Electrical Specifications
124
Output Electrical Specifications
125
Battery Electrical Specifications
126
ECO Specifications
132
Parallel System Specifications
132
Safety Regulations and EMC
132
A Parallel Parameter List
134
B UPS Differences
135
C LCD Menus and Parameters
138
D Alarm Handling
151
E Cleaning or Replacing the Air Filter (6 Kva and 10 Kva)
181
F Alarm Handing of Battery Maintenance Notification
183
G Battery Shallow Discharge Test
185
H Battery Capacity Test
188
I Transferring the UPS that Has Generated an Alarm to Normal Mode and Clearing the Alarm Tone
191
J Acronyms and Abbreviations
192
