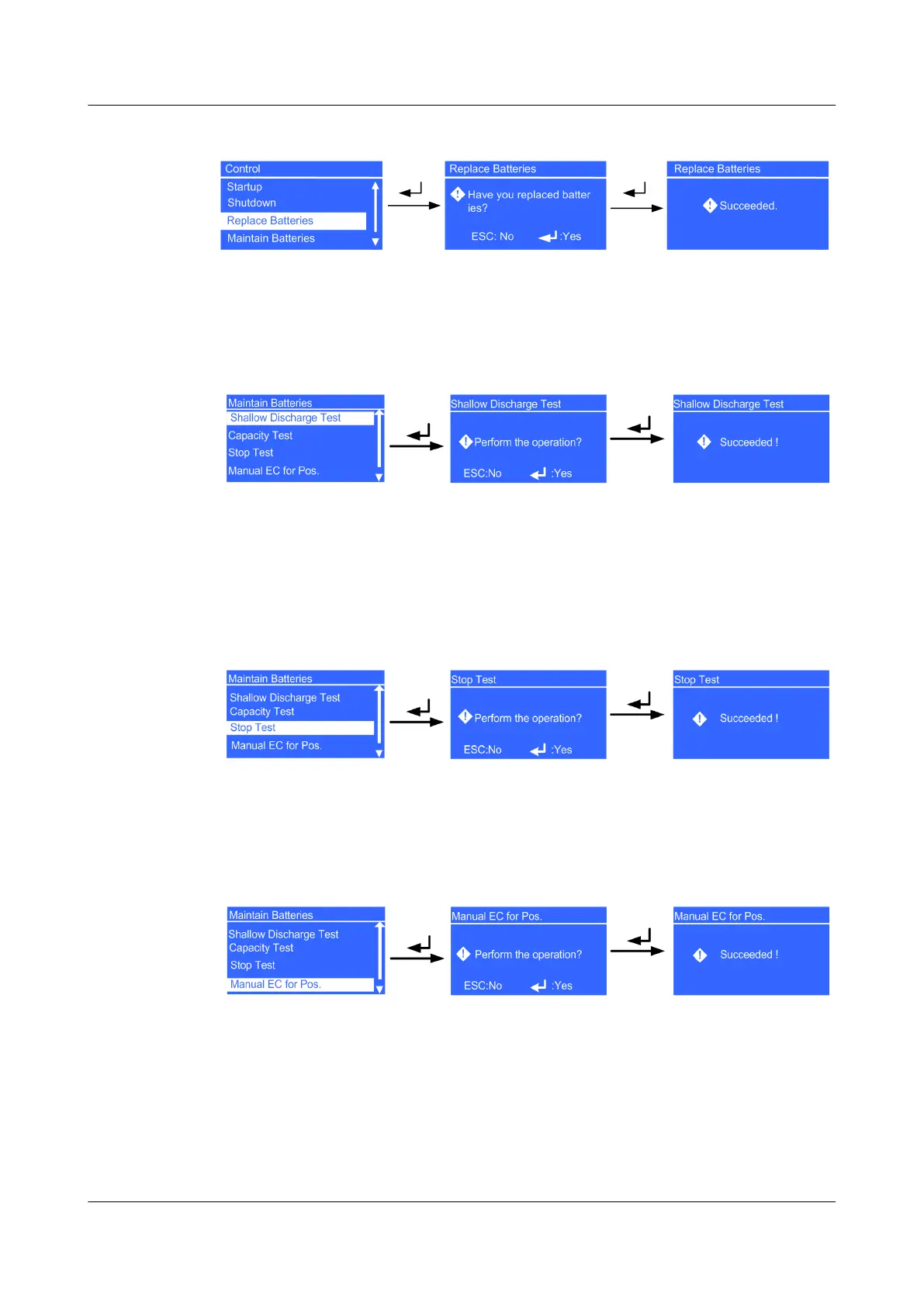

Figure 4-46 Replace Batteries screen
Maintain Batteries Menu
● Shallow Discharge Test menu
Figure 4-47 Shallow Discharge Test screen
● Capacity Test menu
After you completely discharge batteries, the load ratio must be in the range
of 0%–100%.
● Stop Test
Figure 4-48 Stop Test screen
Stop the shallow discharge test or capacity test.
● Manual EC for Pos. menu
Figure 4-49 Manual EC for Pos. screen
Perform equalized charging on batteries forcibly. For the 6 kVA and 10 kVA UPSs,
perform manual equalized charging. For the 15 kVA and 20 kVA UPSs, batteries in
positive and negative groups are manually switched to equalized charging
respectively.
● Manual FC for Pos. menu
UPS2000-G- (6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 83
