3.4 Cable Connection
3.4.1 Connecting Cables to the Top Air-ow Cabinet Used for
a Single-Cabinet UPS
Step 1 Remove the cable trough cover and fan interconnection terminal protective cover,
and put them away.

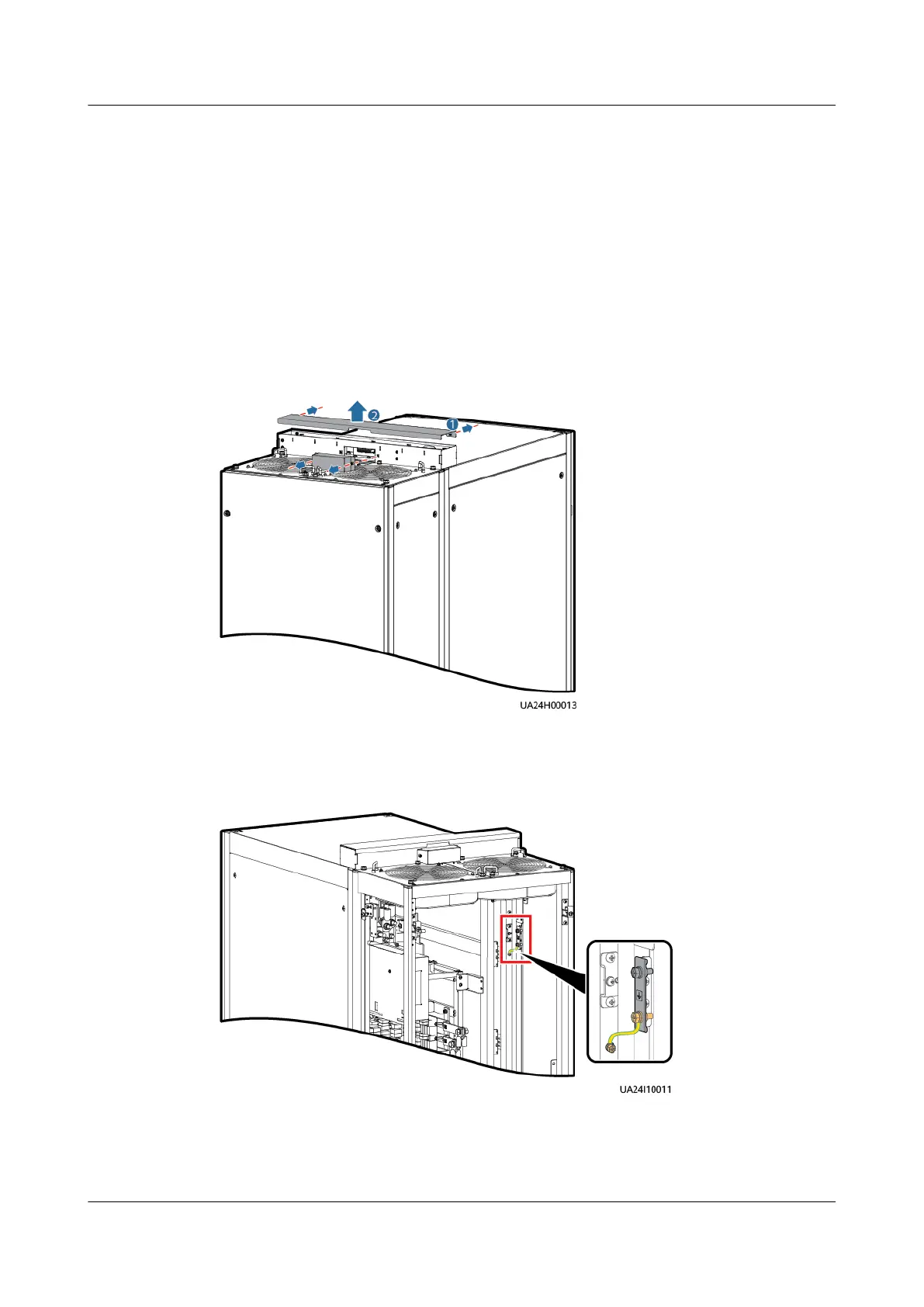

Figure 3-25 Removing the cable trough cover and fan interconnection terminal
protective cover
Step 2 Connect the ground cable of the top air-ow cabinet to the nearest beam of the
UPS cabinet.
Figure 3-26 Connecting the ground cable of the top
air-ow cabinet
Step 3 Connect the power cable and signal cable of the top air-ow cabinet to the UPS.
1. Pull out the power cable (04093521-07) from the cable trough of the top air-
ow cabinet, bind the cable along the post of the top air-ow cabinet, and
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 24
