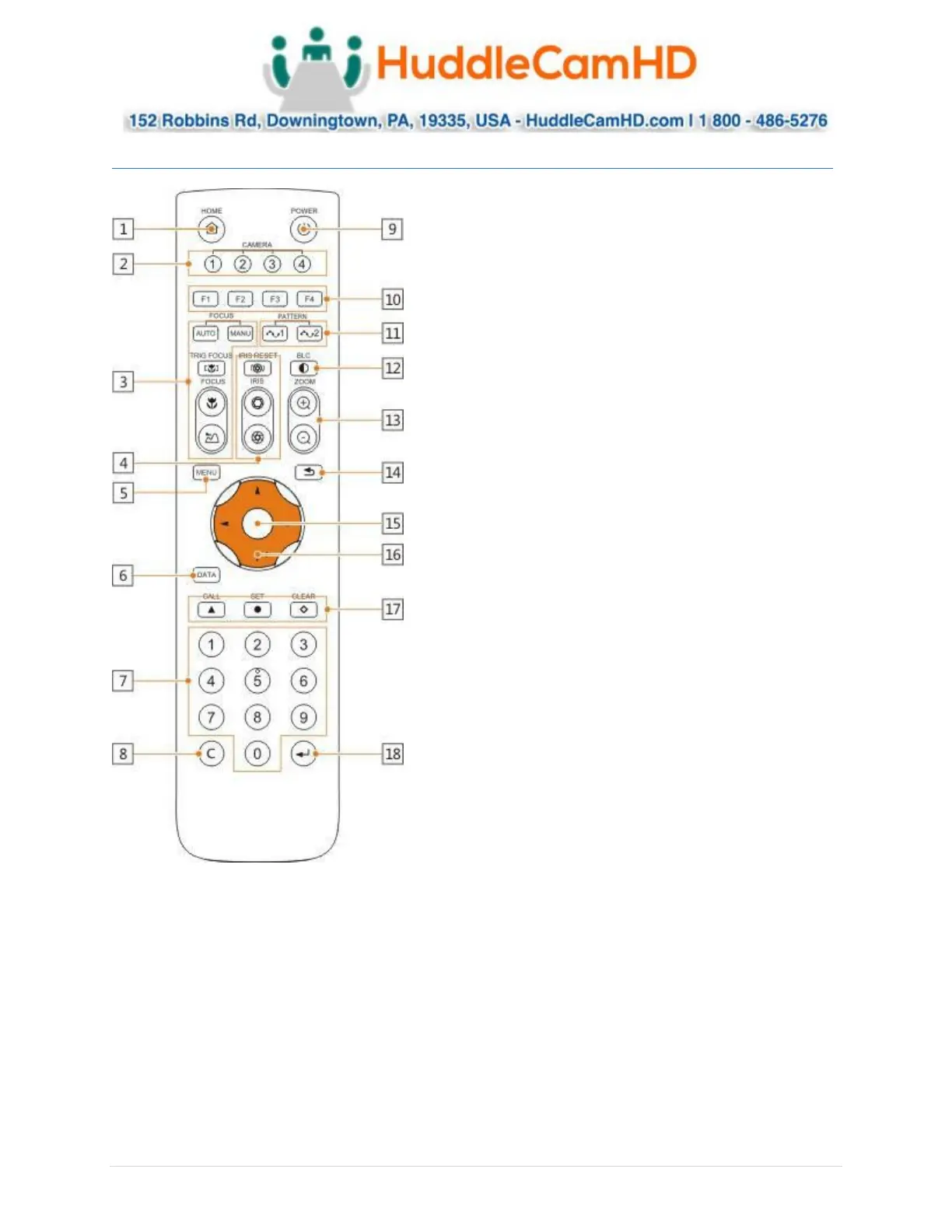

Using the IR Remote .
1. HOME Button
Press the HOME Button to send the camera to the
initial position where pan and tilt is 0.
2. Camera Selection Button
Use to switch between IR channels for multiple
camera control. For example, 4 is address 4.
3. Focus
Use “AUTO” or “MANU” to select auto or manual
focus. Trig Focus enables auto focus whenever the
camera is zoomed. Near/Far allows for focus
adjustment while in manual focus.
4. Iris
Press Iris Reset to set iris back to default value or
use Open/Close to open and close the Iris.
5. Menu
Use to open/close the OSD Menu.
6. Data Button
Use the Data Button to enable/disable display of
pan/tilt angle, zoom time, and other prompt
messages.
7. Number Keys
Used for inputting numbers such as preset number.
8. Cancel Button
Cancel number input.
9. Power Button
User to power on/off the camera.
10. Shortcut Buttons (F1, F2, F3, F4)
Use these buttons for shortcut commands. (Shown
below)
11. Pattern Buttons
Use to activate Pattern Scan 1 and Pattern Scan 2
12. BLC Button
Use to enable/disable Backlight Compensation.
13. Zoom buttons
Use to zoom in or zoom out.
14. Back Button
Use the Back Button to go back to the previous menu
15. OK Button
In OSD Menu: select the corresponding option
Out of OSD Menu: adjust pan/tilt control speed
