PRESENTATION
Presentation
Congratulation on your choice of a first-class quality
product.
Four models equipped with engines from Briggs &
Stratton are described in this operator’s manual.
Rider 11 and Rider 11 Bio has an in-line gearbox
with five forward gears and one reverse gear.
On the Rider 13 and Rider 13 Bio the power trans-
mission from the engine is handled by a hydrostatic
gearbox which enables stepless variation of the
speed.

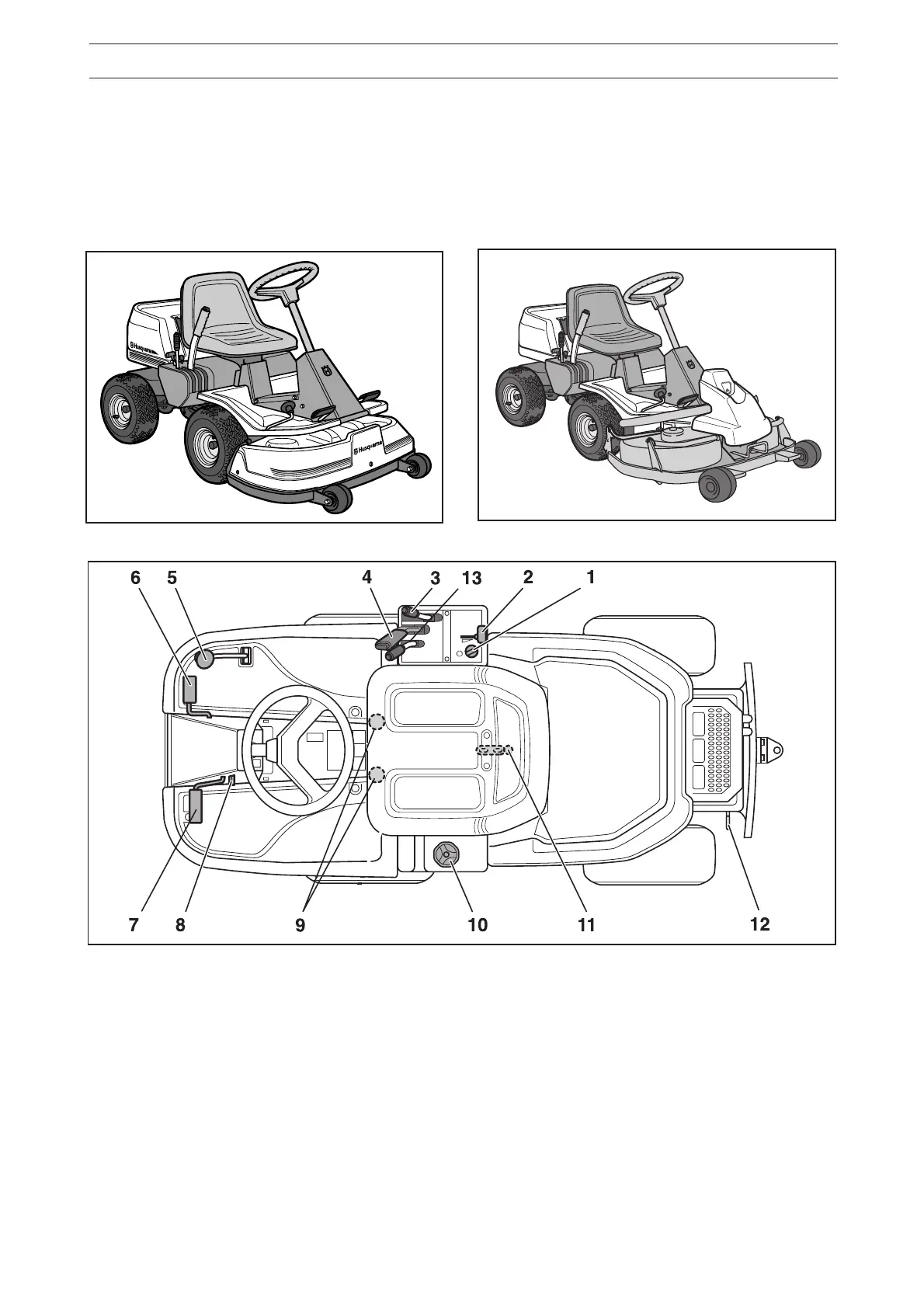

Location of the controls
1. Ignition lock
2. Throttle/Choke lever
3. Adjustment of cutting height
4. Lifting lever, cutting unit
5. Speed control for reversing
(only on 13 and 13 Bio)
6. Speed limiter for driving forwards on
13 and 13 Bio
Parking brake on 11 and 11 Bio
7. Parking brake on 13 and 13 Bio
Clutch pedal on 11 and 11 Bio
8. Lock button for parking brake (left side on
13 and 13 Bio, right side on 11 and 11 Bio)
9. Seat adjustment
10. Fuel tank cap
11. Main lock (under seat)
12. Lever for disengagement of drive
(only on 13 and 13 Bio)
13. Gear lever on 11 and 11 Bio
