MAINTENANCE

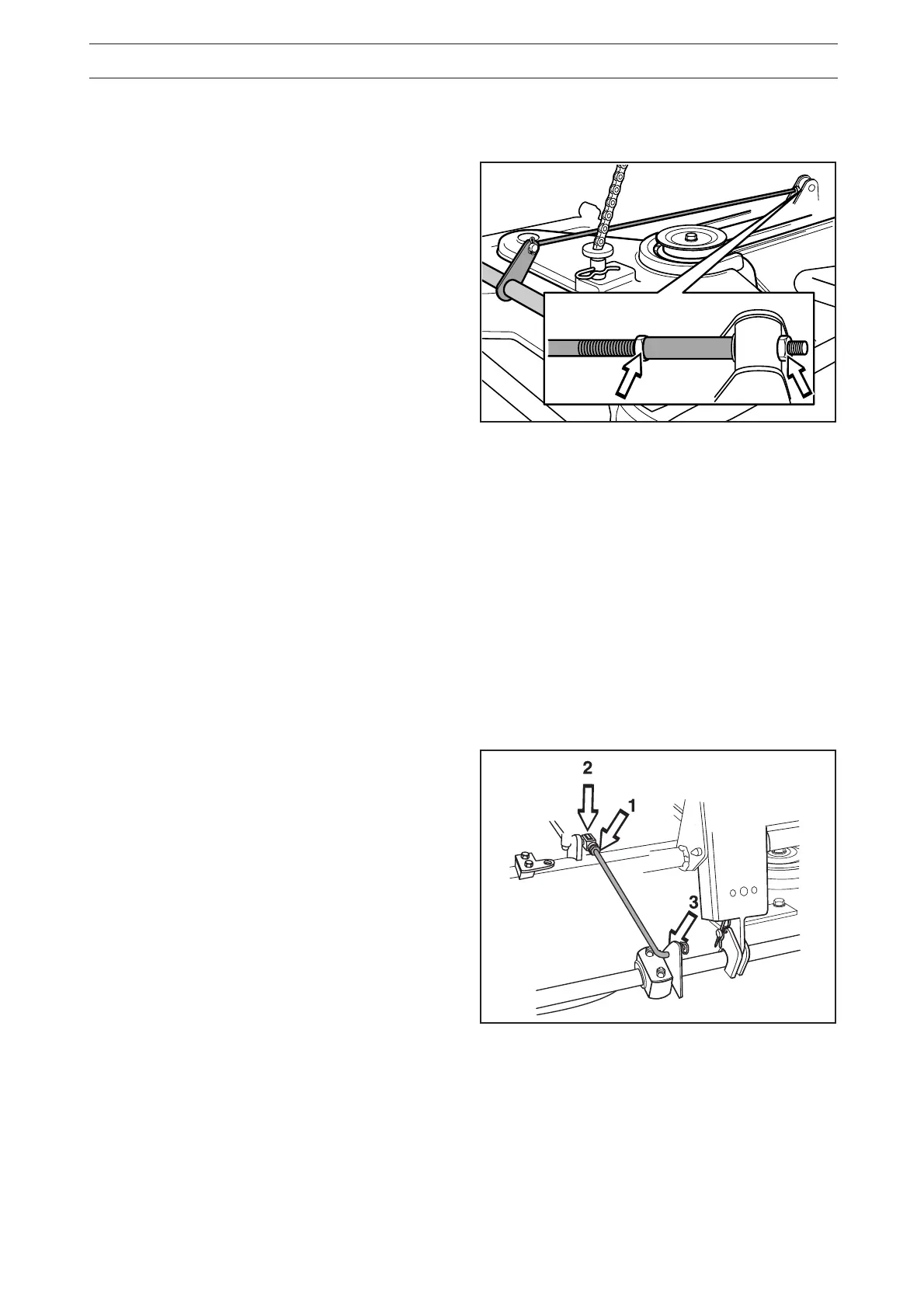

Adjustment of the cutting unit’s
parallelism for the Rider 11 Bio
and Rider 13 Bio
1. Check the tyre air pressure. It should be 60 kPa
(0,6 kp/cm
2
/8,5 PSI).
2. Dismantle the front hood and right-hand fender
as described on page 22-23.
3. Vertical adjustment of the cutting unit is made
with the adjusting nuts on the back edge of the
lift-strut.
4. Raise the cutting unit at the front edge by
shortening the lift-strut.
Lower the cutting unit at the front edge by
lengthening the lift-strut.
5. Tighten the nuts against each other after the
adjustment.
6. On completion of the adjustment the unit’s
parallelism should be re-checked.
7. Fit the right-hand fender and the front hood.
Adjusting the alignment of the
cutting unit for the Rider 11 Bio
and Rider 13 Bio
1. Check the tyre air pressure. It should be 60 kPa
(0,6 kp/cm
2
/8,5 PSI).
2. Remove the front hood and right-hand fender as
described on page 22-23.
3. Unscrew the nut (1) from the parallel strut.
Remove the clip (2) and the parallel strut.
4. Turn the fork anticlockwise to raise the cover’s
rear edge, clockwise to lower the cover’s rear
edge.
5. Once adjustment is complete, refit the parallel
strut and clip and tighten the nut.
6. Recheck the alignment of the cutting unit after
adjustment.
7. Refit the right-hand fender and hood.
