REV B 6-2 114242
lift arm. Figure 6-5
16. Loosen the 5/16" jam nut on the adjuster lift chain, and
back the adjuster bolt out to allow the adjuster to move
up and down freely. Figure 6-5
17. Tighten the adjuster bolt until the chain just becomes
tight. Then tighten just enough to carry the weight of the
front of the deck on that side—to check, move the blocks
back and forth; they should move with a slight drag.
Figure 6-1
18. Tighten the adjuster bolt jam nut to prevent the adjuster
bolt from moving. Figure 6-5
19. Tighten the hardware holding the chain and adjuster onto
the deck lift arm.Figure 6-5
20. Go to the right rear of the deck.
21. Make sure that there is still slack in the chain. If not,
loosen the two nuts on the block holding the threaded rod
until there is slack in the deck lift chain. Figure 6-6
22. Tighten the appropriate nut until the chain just becomes
tight, and carries most of the deck weight. Check by
moving the block—it should move with a slight drag.
Figure 6-1
23. Tighten the other nut on the opposite side of the block,
and jam them tightly together against the block.
24. Go to the left rear of the deck
25. Make sure that there is still slack in the chain. If not,
loosen the two nuts on the block holding the threaded rod
until there is slack in the deck lift chain. Figure 6-6
26. Tighten the appropriate nut until the chain just becomes
tight, and carries most of the deck weight. Check by
moving the block—it should move with a slight drag.
Figure 6-1
27. Tighten the other nut on the opposite side of the block,
and jam them tightly together against the block.
28. Compress the deck lift assist springs so that there is 1/2”
(12.7mm) of space between the front nut on the spring
and the rear nut on the deck lift block. Typical both sides.
Figure 6-7
29. When completed, all chains will be tight, and deck
cutting height will be set to the deck height indicator.
Blades
Mower blade maintenance
Check the mower blades daily, they are the key to power effi-
ciency and well groomed turf. Keep the blades sharp. A dull
blade will tear rather than cut the grass, leaving a brown ragged

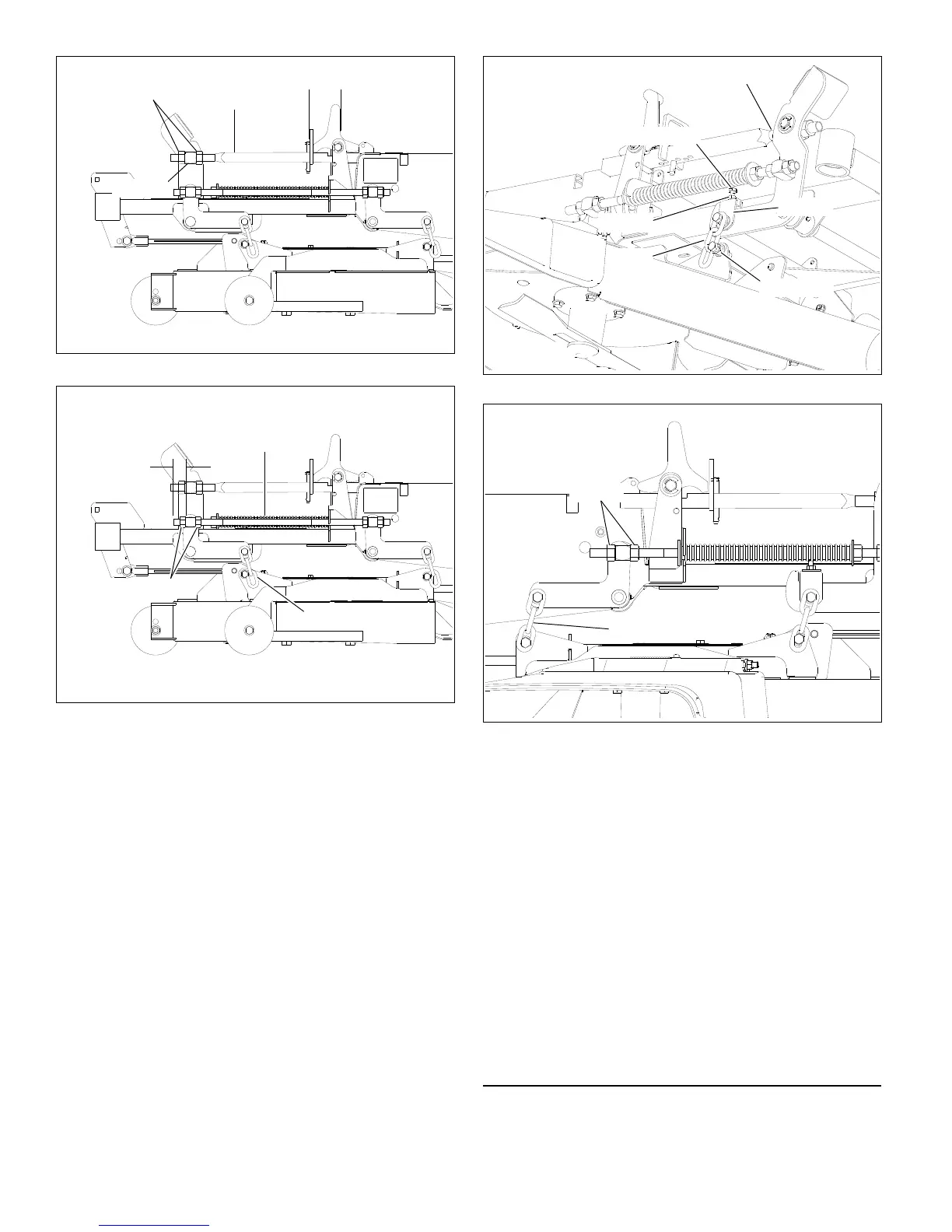

Figure 6-3
Figure 6-4
Nuts
Height in-
dicator bar
Lift block
Clamp here
Nuts
Deck lifting rod
1”
(25.4mm)
Deck lifting chain
Figure 6-5
Figure 6-6
Jam Nut
Deck lift arm
Adjuster bolt
Chain
Flange nuts
Adjuster
To Next Page
