System description
The Powermax30 is a highly portable, 30-amp, hand-held plasma cutting system appropriate for a
wide range of applications.
The standard Powermax30 includes one complete set of the consumables needed for cutting
(retaining cap, swirl ring, nozzle, electrode), a spare electrode, a spare nozzle, an air fitting reducer
(1/4 FPT x 1/8 NPT), a consumables holder, an Operator Manual, and a Quick Setup Card. The
Powermax30 with the deluxe carrying case includes 3 spare electrodes, 3 spare nozzles, a
retaining cap, a swirl ring, a deflector, silicone lubricant, 3 o-rings, gloves, a circle cutting guide,
and a carrying strap in addition to the consumables holder, air fitting reducer, Operator Manual, and
Quick Setup Card.
The power cords on the CSA units have a quick disconnect adapter and are shipped with a
120V/15A (NEMA 5-15P) plug and a 240V/20A (NEMA 6-50P) plug in addition to the twist-lock
240V/20A (NEMA L6-20P) plug wired to the system. The CE units are shipped without a plug on
the power cord. See Section 3, Power cord considerations, for more information.
You can order additional consumables and accessories – such as the carrying case, carrying strap,
and circle cutting guide – from any Hypertherm distributor. See Section 5, Maintenance and Parts,
for a list of spare and optional parts.

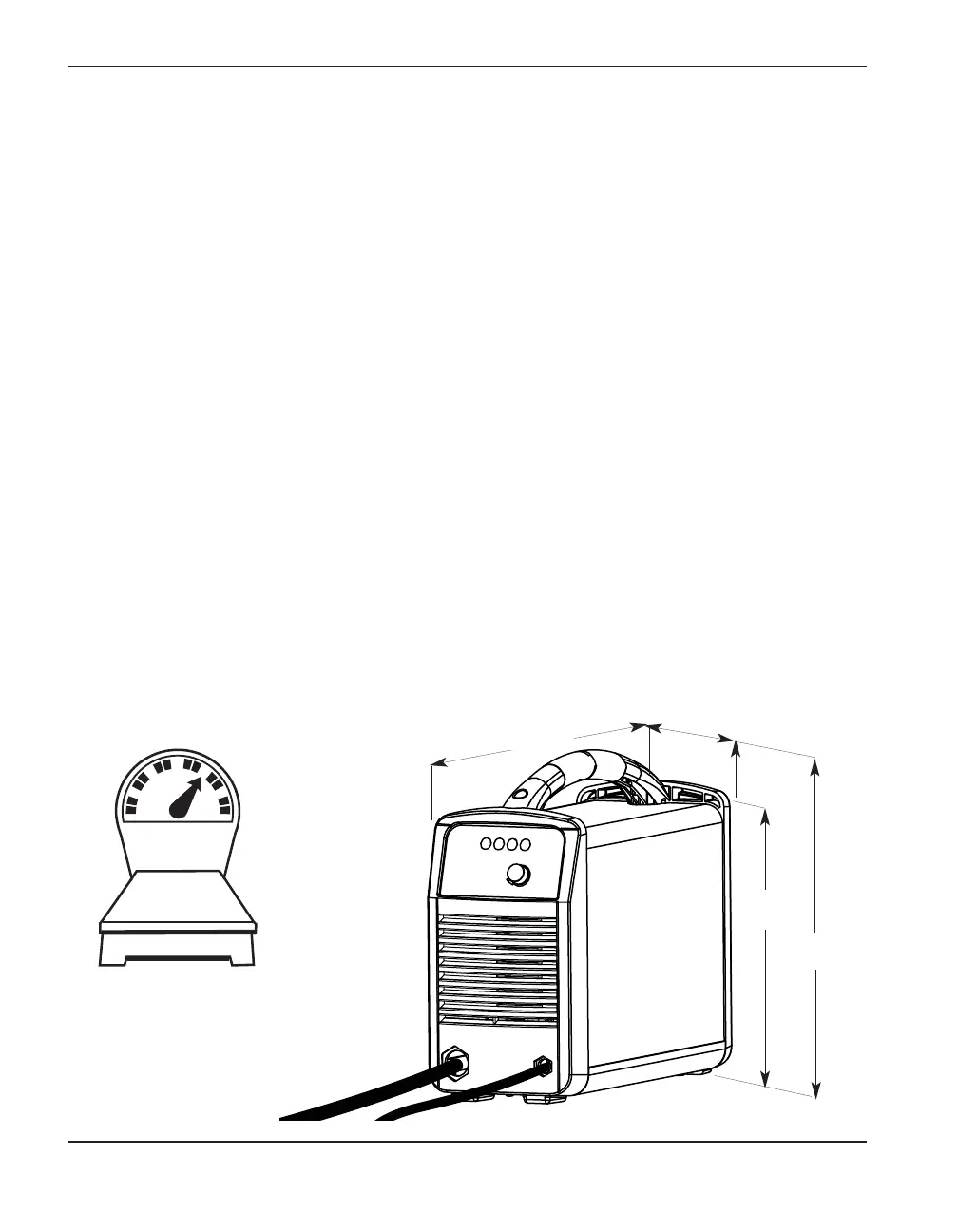

Power supply dimensions and weight
Weight includes the hand torch
and 15 ft (4.57 m) lead.
20.65 lb
9.37 kg
13"
(330 mm)
5.5"
(140 mm)
10.0"
(267 mm)
11.5"
(292.1 mm)
