2. DRIVE SYSTEM
GEAR SHIFT LEVER
Neutral starting
Engine can be started only when the shifting lever is in neutral position.
Shifting FWD/REV lever
Forward
Push the lever forward then forward solenoid valve operates and oil comes to forward clutch thus
the truck will run forward.
Reverse
Pull the lever backward then reverse solenoid valve operates and oil comes to reverse clutch thus
the truck will run backward.
OIL LEAKAGE
Check that there is no oil leakage from torque converter, transmission or control valve. If oil oozes
out and forms drops, replace packing.
(1)
(2)
ΗΗ
Θ
1)
2)

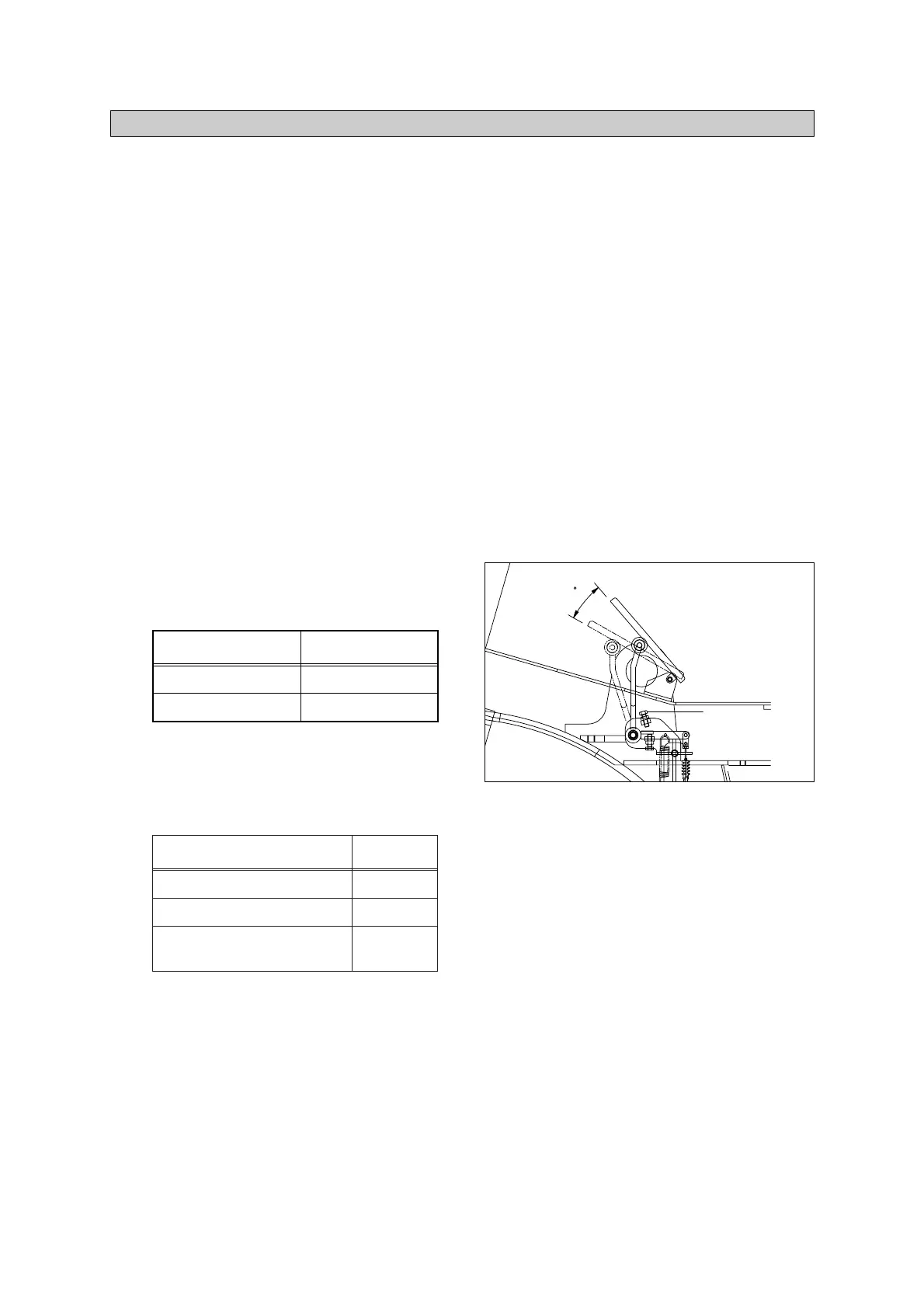

ADJUSTMENT OF PEDAL
Accelerator pedal
Adjust the stopper bolt(1) so that pedal
operation range is "A
Á
".
((1)
3)
D255ATA01
Model
15D/18D/20DA-7E
20D/25D/30D/33D-7E
Operation range(A
Á
)
20.9
22.6
Depress the accelerator pedal until
reaching high idle rpm of the engine in
order to adjust the stopper bolt(1) and fix
it.
ö
Model
15D/18D/20DA-7E
20D/25D/30D/33D-7E
20DF/25DF/30DF/33DF-7
35DF-7
Cable stroke
35.9
39.1
32
Unit:
mm
