3. TRAVEL SYSTEM
TIRES
Check tire pressure using tire gauge : SEE 5-3 CHECK BEFORE STARTING ENGINE
(1)
A
B
1.6 mm Min
(0.06 in)
1)
Check visually for cracks and damage to
tread and side wall. If crack or damage is
serious, replace tire.

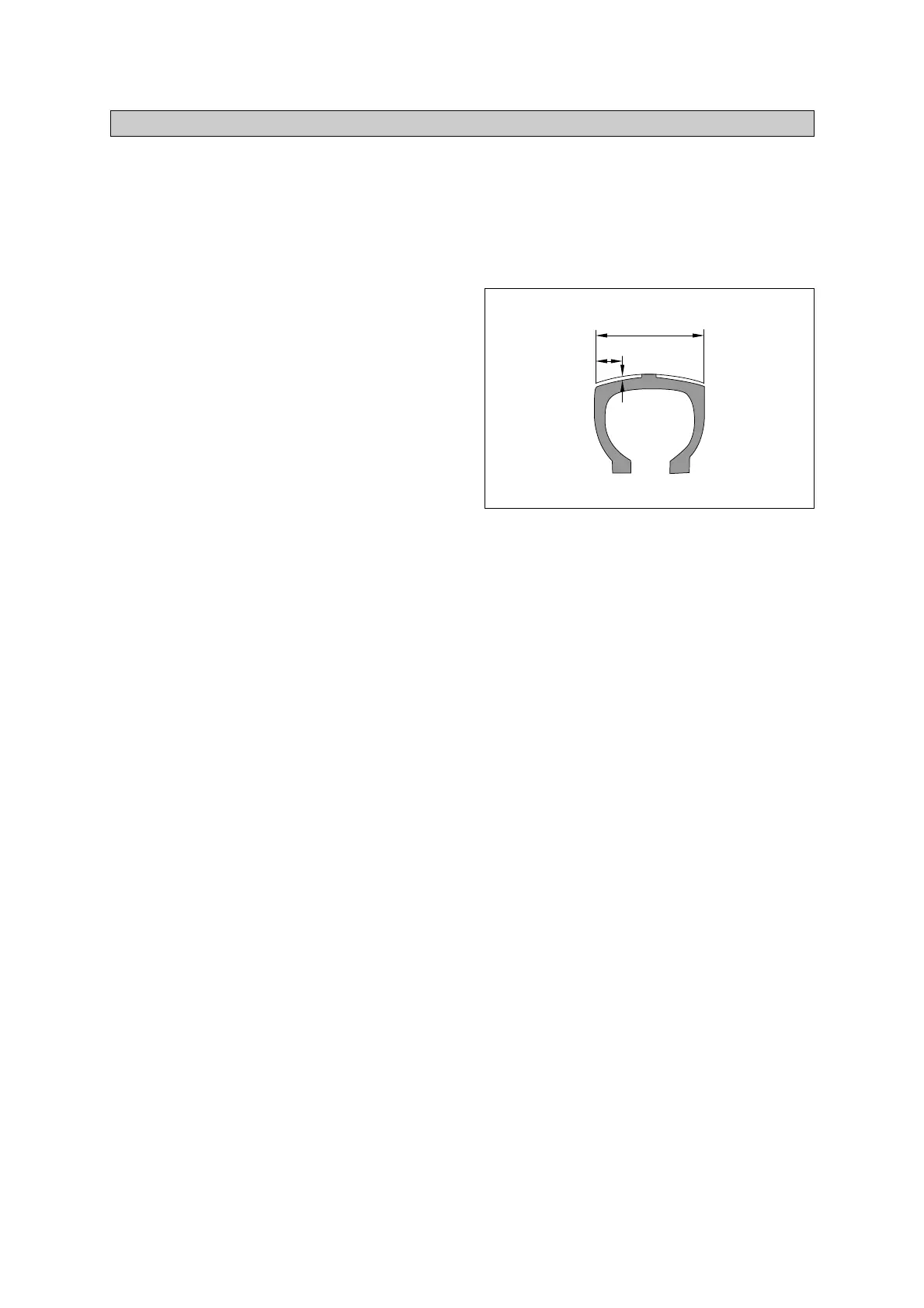

Wear
Measure tread of pneumatic tires(tires
with air). Depth of tread must be at least
1.6
mm (0.06in) at point 1/4 across width of
tread. A/B
ô4.
Check tire visually for uneven wear,
stepped wear or any other abnormal
wear. Check also for pieces stuck in tire.
(2)
(3)
(4)
HUB NUTS
Use wrench to check for loose hub nuts.
Tighten any loose hub nuts to specified tightening torque : SEE 8.SPECIFICATION
2)
RIM SIDE RING
Check rim side ring for deformation or cracks. Check visually or use crack detection method.
 Rear rim connecting nut torque : SEE 8.SPECIFICATION
33)
D35ATA15
STEERING AXLE
Push axle from one side or measure front to rear clearance with feeler gauge. Check that
clearance is within 2
mm . If clearance is more than 2 mm , insert shim to reduce clearance to within
0.7
mm .
 Mounting bolt torque : SEE 8.SPECIFICATION
Measure clearance between center pin and bushing. Check that clearance is within 0.5mm(0.02in).
If clearance is more than 0.5
mm , replace the bushing.
(1)
(2)
4)
DRIVE AXLE
Check that there is no deformation or crack around mounting bolts of front axle and main frame
and at welds. Check visually or use crack detection method.
Mounting bolt torque :
SEE 8.SPECIFICATION
5)
