09
9-
17
T
ype A
OGSR076067
OGSR076067
OGSR076066
OGSR076066

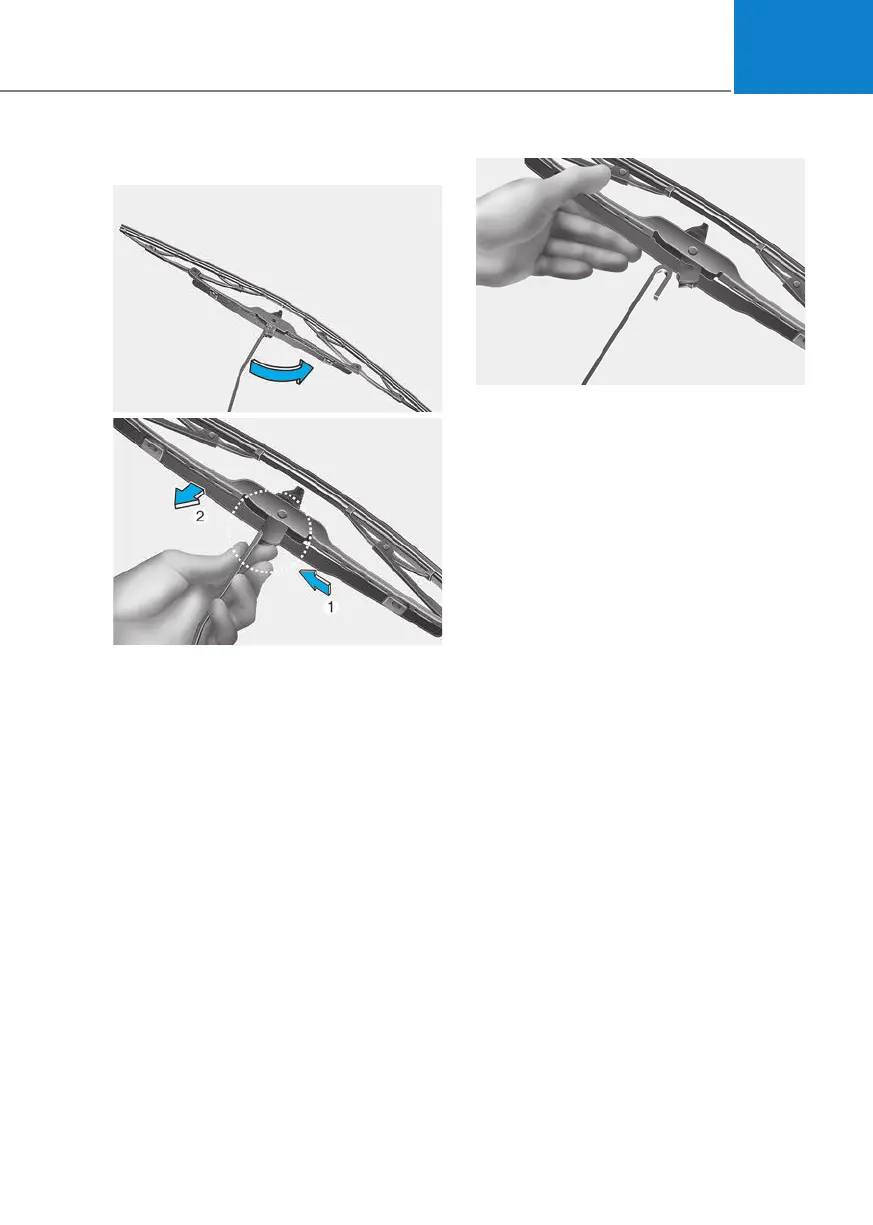

1.
Lift up the wiper blade clip. Then lift
up the wiper blade.
2.
While pushing the lock (1), pull down
the wiper blade (2).
OGSR076068
OGSR076068
3.
Remo
ve the wiper blade fr
om the
wiper arm.
4.
Install a new wiper blade assembly in
the re
verse or
der of remo
val.
5.
Return the wiper arm on the
windshield.
637
639
Table of Contents
Table of Contents
6
Foreword / Starting Your Electric Vehicle
7
Electric Vehicle
12
Characteristics of Electric Vehicles
12
Battery Information
12
Main Components of Electric Vehicle
13
High Voltage Battery (Lithium-Ion Battery)
13
High Voltage Battery Warmer System
14
EV Mode
15
EV Mode Screen
15
Solar Roof Information
16
Energy Information
16
Next Departure
17
Charging and Climate
18
Vehicle to Load (V2L)
19
Nearby Charging Stations
24
EV Settings
25
Charge Types for Electric Vehicle
28
Charging Information
28
Charging Time Information
28
Charging Types
29
Charge Indicator Lamp for Electric Vehicle
30
Charging Status
30
Charging Connector Lock
31
Locking Charging Cable
31
Scheduled Charging
32
Charging Electric Vehicle
33
Electric Charging Door
33
Charging Precautions
34
How to Check the Symbol on the Charging Label
35
Electric Charging Label
36
Electric Charging Label Symbol Table
37
Disconnecting Charging Connector in Emergency
38
AC Charge
38
DC Charge
41
Portable Charge
44
Charging the Electric Vehicle (Abrupt Stop)
56
Action to be Taken When Charging Stops Abruptly
56
Driving Electric Vehicle
57
How to Start the Vehicle
57
How to Stop the Vehicle
57
Virtual Engine Sound System
58
Distance to Empty
58
Tips for Improving Distance to Empty
59
ECO Driving
60
Electricity Use
60
Power/Charge Gauge
61
State of Charge (SOC) Gauge for High Voltage Battery
61
Aux. Battery Saver
62
Warning and Indicator Lights (Related to Electric Vehicle)
63
Cluster Display Messages
65
Safety Precautions for Electric Vehicle
71
If an Accident Occurs
71
Other Precautions for Electric Vehicle
72
High Voltage Cut-Off Switch
73
2. Vehicle Information
74
Vehicle Information
74
Exterior Overview (I)
75
Exterior Overview (II)
76
Interior Overview (I)
77
Interior Overview (II)
78
Instrument Panel Overview (I)
79
Instrument Panel Overview (II)
80
Instrument Panel Overview (III)
81
Motor Compartment
82
Dimensions
83
Electric Vehicle Specifications
83
Bulb Wattage
84
Tires and Wheels
85
Air Conditioning System
86
Available Front Trunk Weight
86
Load and Speed Capacity Tires
86
Vehicle Weight and Luggage Volume
86
Recommended Lubricants and Capacities
87
Vehicle Certification Label
88
Vehicle Identification Number (VIN)
88
Motor Number
89
Tire Specification and Pressure Label
89
Air Conditioner Compressor Label
90
Declaration of Conformity
90
Refrigerant Label
90
3. Seats & Safety System
91
Seats & Safety System
91
Air Bag Hazards
92
Always Wear Your Seat Belt
92
Control Your Speed
92
Driver Distraction
92
Important Safety Precautions
92
Keep Your Vehicle in Safe Condition
92
Restrain All Children
92
Seats
93
Safety Precautions
96
Front Seats
97
Rear Seats
106
Headrest
110
Seat Warmers
114
Air Ventilation Seats
117
Seat Belt Safety Precautions
120
Seat Belts
120
Seat Belt Warning Light
121
Seat Belt Restraint System
123
Additional Seat Belt Safety Precautions
127
Care of Seat Belts
129
Child Restraint System (CRS)
130
Our Recommendation: Children at Middle Position
130
Selecting a Child Restraint System (CRS)
131
Installing a Child Restraint System (CRS)
133
Air Bag - Supplemental Restraint System
142
Where Are the Air Bags
145
How Does the Air Bags System Operate
150
What to Expect after an Air Bag Inflates
153
Why Didn't My Air Bag Go off in a Collision
154
SRS Care
159
Additional Safety Precautions
160
Air Bag Warning Labels
160
4. Instrument Cluster
161
Instrument Cluster
161
Instrument Cluster
164
Gauges and Meters
165
Instrument Cluster Control
165
Instrument Panel Illumination
165
Speedometer
165
Power/Charge Gauge
166
State of Charge (SOC) Gauge for High Voltage Battery
166
Outside Temperature Gauge
167
Distance to Empty
168
Odometer
168
Ready Indicator
169
Reduction Gear Shift Indicator
169
Regenerative Braking Level Indicator
169
Service Warning Light
169
Warning and Indicator Lights
169
Charging Connector Indicator Light
170
High Voltage Battery Level Warning Light
170
Power down Indicator Light
170
Seat Belt Warning Light
170
Air Bag Warning Light
171
Parking Brake & Brake Fluid Warning Light
171
Regenerative Brake Warning Light
171
Anti-Lock Brake System (ABS) Warning Light
172
Electronic Brake Force Distribution (EBD) System Warning Light
172
Electric Power Steering (EPS) Warning Light
173
Master Warning Light
173
Electronic Parking Brake (EPB) Warning Light
174
Low Tire Pressure Warning Light
174
Forward Safety Warning Light
175
Lane Safety Indicator Light
175
Wheel Drive (4WD) Warning Light
175
Icy Road Warning Light
176
LED Headlight Warning Light
176
Electronic Stability Control (ESC) Indicator Light
177
Electronic Stability Control (ESC) off Indicator Light
177
Immobilizer Indicator Light
177
High Beam Indicator Light
178
Light on Indicator Light
178
Low Beam Indicator Light
178
Rear Fog Indicator Light
178
Turn Signal Indicator Light
178
AUTO HOLD Indicator Light
179
High Beam Assist Indicator Light
179
LCD Display Messages
179
Low Key Battery
179
Press Brake Pedal to Start Vehicle
179
Press START Button While Turning Wheel
179
Shift to P
179
Check BRAKE SWITCH Fuse
180
Check Smart Key System
180
Key Not Detected
180
Key Not in Vehicle
180
Press START Button Again
180
Press START Button with Key
180
Shift to P to Start Vehicle
180
Door, Hood, Tailgate Open Indicator
181
Lights
181
Low Tire Pressure
181
Check Haptic Steering Wheel System
182
Check Headlamp LED
182
Check Headlight
182
Check Turn Signal
182
Low Washer Fluid
182
Wiper
182
Charging Door Open
183
Remaining Time
183
Shift to P to Charge/Shift to P to Start Charging
183
Unplug Vehicle to Start
183
Charging Stopped. Check the AC/DC Charger
184
Charging Stopped. Check the Cable Connection
184
Charge Immediately. Power Limited
185
Check Regenerative Brakes
185
Low EV Battery
185
Battery Discharging Due to Additional Electrical Devices
186
Instrument Cluster
186
Power Limited Due to Low EV Battery Temperature. Charge Battery
186
EV Battery Overheated! Stop Vehicle
187
Power Limited
187
Check Active Air Flap System
188
Check Electric Vehicle System
188
Check Virtual Engine Sound System
188
Stop Vehicle and Check Power Supply
188
LCD Display
189
LCD Display Control
189
View Modes
189
Driving Assist View
190
Turn by Turn (TBT) View
190
After Recharging
191
Utility View
191
Accumulated Info
192
Additional Information Display
193
Setting Your Vehicle
194
Vehicle Settings (Infotainment System)
194
5. Convenience Features
195
Convenience Features
195
Accessing Your Vehicle
199
Smart Key
199
Immobilizer System
206
Door Locks
208
Operating Door Unlocks from Outside the Vehicle (Manual Type)
208
Operating Door Locks from Outside the Vehicle (Manual Type)
210
Operating Door Lock/Unlock from Inside the Vehicle
212
Automatic Door Lock and Unlock Features
214
Deadlocks
214
Child-Protector Rear Door Locks
215
Electronic Child Safety Lock
215
Vehicle Auto-Shut off Function
217
Theft-Alarm System
218
System Operation
219
System Setting
219
System Precautions
220
Integrated Memory System
221
Storing Memory Positions
221
Recalling Memory Positions
222
Resetting the System
222
Seat Easy Access
223
Memory Seat Configurations
224
Recalling Memory Positions
224
Storing Memory Positions
224
Electric Power Steering (EPS)
225
Steering Wheel
225
Horn
226
Tilt/Telescopic Steering
226
Heated Steering Wheel
227
Inside Rearview Mirror
228
Mirrors
228
Outside Rearview Mirrors
229
Reverse Parking Aid
231
Digital Side Mirror (DSM)
233
DSM Warnings and Indicators
234
Operating the Digital Side Mirrors
234
Adjusting the DSM Cameras
235
Displaying the Guidelines
235
Folding/Unfolding the DSM Cameras
236
Switching to Wide View When Backing up
237
DSM Camera Defroster
238
Setting the DSM Screen Brightness
238
Digital Center Mirror (DCM)
239
System Component
241
How to Change the Mode
242
Display Settings (Digital Mirror Mode)
243
Windows
247
Power Windows
249
Vision Roof
252
Resetting the Vision Roof
254
Solar Roof
255
Solar Roof Operation
255
Solar Roof Malfunction
257
Exterior Features
258
Hood
258
Front Trunk
259
Power Tailgate
260
Smart Tailgate
265
Convenience Features
268
Electric Charging Door
268
Augmented Reality HUD
269
Head-Up Display Settings
269
Head-Up Display Information
270
Precautions While Using the Head-Up Display
271
Exterior Lights
273
Lighting
273
Interior Lights
277
High Beam Assist (HBA)
281
High Beam Assist Settings
281
High Beam Assist Malfunction and Limitations
282
High Beam Assist Operation
282
Front Windshield Wipers
284
Wipers and Washers
284
Front Windshield Washers
286
Automatic Climate Control System
287
Automatic Temperature Control Mode
288
Climate
288
Manual Temperature Control Mode
290
System Operation
299
System Maintenance
300
To Defog Inside Windshield
302
Windshield Defrosting and Defogging
302
Defogging Logic
303
To Defrost Outside Windshield
303
Rear Window Defroster
304
Auto Defogging System
305
Climate Control Additional Features
305
Auto Dehumidify
306
Auto. Controls that Use Climate Control Settings (for Driver's Seat)
307
Recirculating Air When Washer Fluid Is Used
307
Smart Ventilation
307
Center Console Storage
308
Storage Compartment
308
Glove Box
309
Cup Holder
310
Interior Features
310
Sunvisor
311
Power Outlet
312
USB Charger
313
Wireless Smart Phone Charging System
315
Cluster Fascia Side Panel
316
Vehicle to Load (V2L) (if
316
Clock
317
Coat Hook
317
Floor Mat Anchor(S)
317
Rear Side Window Sunshades
318
Cargo Security Screen
319
Antenna
321
Infotainment System
321
Steering Wheel Remote Controls
321
USB Port
321
Infotainment System
322
6. Driving Your Vehicle
324
Driving Your Vehicle
324
Before Driving
326
Before Entering the Vehicle
326
Before Starting
326
Start/Stop Button
327
Start/Stop Button Positions
328
Starting the Vehicle
329
Turning off the Vehicle
330
Remote Start
331
Reduction Gear
332
Reduction Gear Operation
332
Cluster Display Messages
336
Good Driving Practices
338
Regenerative Braking System
339
One Pedal Driving
340
I-Pedal
341
Smart Recuperation System
342
Smart Recuperation System Setting
342
To Activate Smart Recuperation System
342
How to Operate
344
Smart Recuperation System will be Temporarily Cancelled When
344
To Resume Smart Recuperation System
344
Vehicle-To-Vehicle Distance Recognition Sensor (Front Radar)
345
Limitations of the System
346
System Malfunction
346
Braking System
349
Power-Assist Brakes
349
Disc Brakes Wear Indicator
350
Electronic Parking Brake (EPB)
350
Auto Hold
355
Anti-Lock Brake System (ABS)
358
Electronic Stability Control (ESC)
360
Vehicle Stability Management (VSM)
363
Hill-Start Assist Control (HAC)
364
Emergency Stop Signal (ESS)
365
Multi-Collision Brake (MCB)
365
Good Braking Practices
366
Emergency Precautions
369
Drive Mode
371
Drive Mode Integrated Control System (2WD)
371
Drive Mode
373
Drive Mode Integrated Control System (4WD)
373
Drive Modes Characteristic
375
Active Air Flap
376
Malfunction
376
Hazardous Driving Conditions
377
Rocking the Vehicle
377
Special Driving Conditions
377
Driving at Night
378
Driving in the Rain
378
Smooth Cornering
378
Driving in Flooded Areas
379
Highway Driving
379
Reducing the Risk of a Rollover
380
Snow or Icy Conditions
381
Winter Driving
381
Winter Precautions
384
Trailer Towing
385
If You Decide to Pull a Trailer
386
Trailer Towing Equipment
389
Driving with a Trailer
390
Maintenance When Towing a Trailer
393
Overloading
394
Vehicle Weight
394
Driver Assistance System
395
8. Emergency Situations
586
Emergency Situations
586
Hazard Warning Flasher
587
If the Vehicle Stalls at a Crossroad or Crossing
587
If the Vehicle Stalls While Driving
587
In Case of an Emergency While Driving
587
Confirm the EV Battery Is Not Low on the Charge Gauge
588
If the Vehicle will Not Start
588
If You Have a Flat Tire While Driving
588
Jump Starting (12V Battery)
589
Check Tire Pressure
592
Tire Pressure Monitoring System (TPMS)
592
Tire Pressure Monitoring System
593
Low Tire Pressure Position and Tire Pressure Telltale
594
Low Tire Pressure Warning Light
594
Changing a Tire with TPMS
595
TPMS (Tire Pressure Monitoring System) Malfunction Indicator
595
If You Have a Flat Tire (with Tire Mobility Kit)
597
Introduction
597
Notes on the Safe Use of the Tire Mobility Kit
598
Components of the Tire Mobility Kit
599
Using the Tire Mobility Kit When a Tire Is Flat
600
How to Adjust Tire Pressure
603
Towing
604
Towing Service
604
Removable Towing Hook
605
Fire Extinguisher
606
First Aid Kit
606
Tire Pressure Gauge
606
Triangle Reflector
606
Pan-European Ecall System (for EUROPE)
611
Information on Data Processing (for UAE)
617
Information on Data Processing(for Europe)
617
UAE Ecall System (for UAE)
619
9. Maintenance
622
Maintenance
622
Motor Compartment
624
Maintenance Services
625
Owner Maintenance Precautions
625
Owner's Responsibility
625
Owner Maintenance
626
Owner Maintenance Schedule
627
Scheduled Maintenance Services
628
Maintenance under Severe Usage Conditions
631
Explanation of Scheduled Maintenance Items
632
Coolant
633
Brake Fluid
634
Checking the Brake Fluid Level
634
Checking the Washer Fluid Level
635
Reduction Gear Fluid
635
Washer Fluid
635
Filter Inspection
636
Filter Replacement
636
Blade Inspection
637
Blade Replacement
637
Wiper Blades
637
Battery Capacity Label
641
Battery Recharging
641
For Best Battery Service
641
Reset Items
642
Recommended Cold Tire Inflation Pressures
643
Tire Care
643
Check Tire Inflation Pressure
644
Tire Rotation
645
Tire Replacement
646
Wheel Alignment and Tire Balance
646
Tire Maintenance
647
Tire Sidewall Labeling
647
Tire Traction
647
Wheel Replacement
647
Low Aspect Ratio Tires
650
Fuses
651
Instrument Panel Fuse Replacement
652
Motor Compartment Panel Fuse Replacement
653
Fuse/Relay Panel Description
654
Light Bulbs
664
Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL) Replacement
665
Headlamp Aiming
667
Side Repeater Lamp Replacement
667
Rear Combination Lamp Replacement
671
High Mounted Stop Lamp Replacement
672
License Plate Lamp Replacement
672
Front Trunk Lamp Replacement
673
Interior Light Replacement
673
Appearance Care
675
Exterior Care
675
Interior Care
680
Other manuals for Hyundai IONIQ 5
Emergency Response Guide
29 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Hyundai IONIQ 5 and is the answer not in the manual?
Ask a question
Hyundai IONIQ 5 Specifications
General
Brand
Hyundai
Model
IONIQ 5
Category
Automobile
Language
English
Related product manuals
Hyundai IONIQ 6
28 pages
Hyundai IONIQ EV
607 pages
Hyundai IONIQ 5 N
64 pages
Hyundai IONIQ HYBRID
24 pages
Hyundai IONIQ 6 2023
582 pages
Hyundai Ioniq EV 2020
605 pages
Hyundai IONIQ ELECTRIC
546 pages
Hyundai IONIQ Hybrid 2017
553 pages
Hyundai Ioniq Hybrid 2020
630 pages
Hyundai IONIQ HYBRID 2019
16 pages
Hyundai IONIQ ELECTRIC 2019
497 pages
Hyundai IONIQ 6 ELECTRIC 2023
21 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
