Maintenance
9-50
Rear combination lamp
replacement

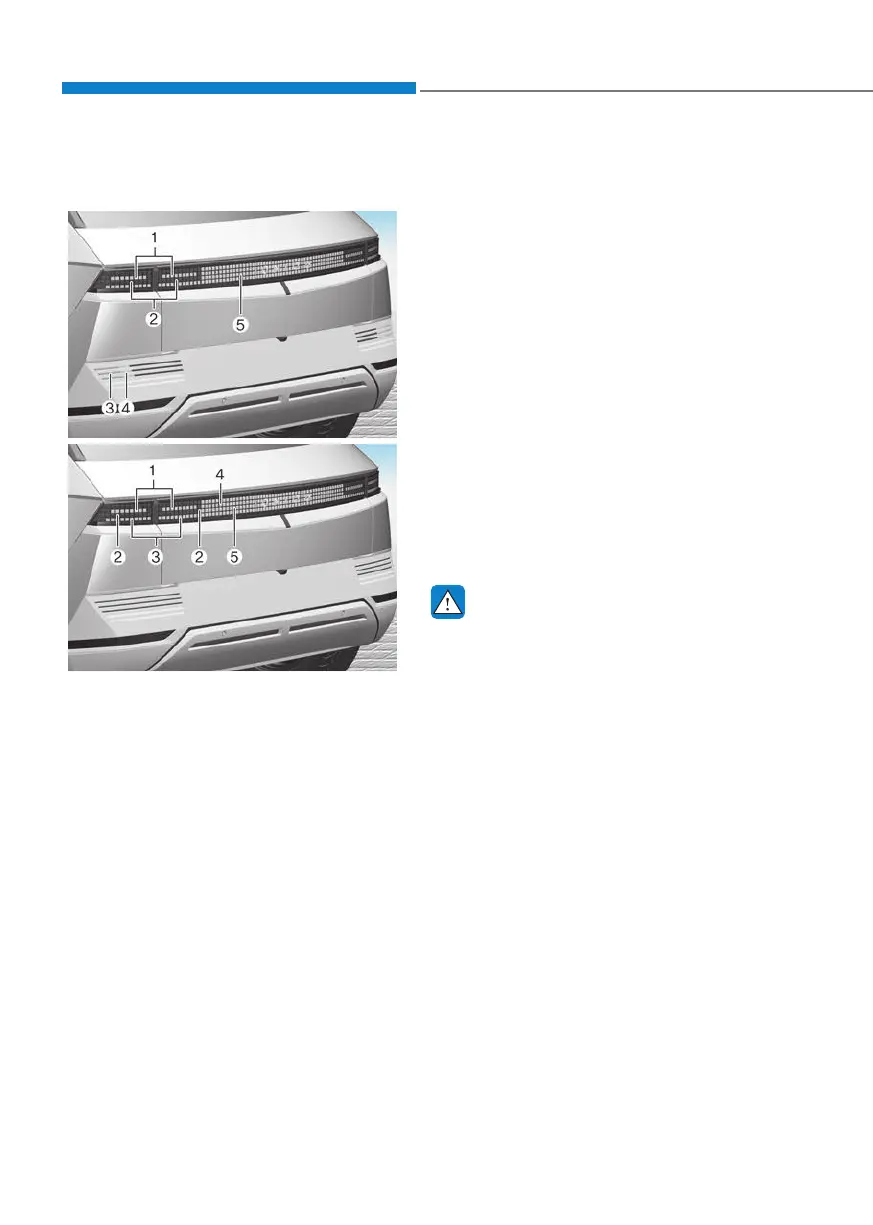

 Type AType A
ONE1091017LONE1091017L
 Type BType B
ONE1091018LONE1091018L
(1) Stop lamp
(2) Rear lamp/Stop lamp
(3) Turn signal lamp
(4) Reverse lamp
- Type A: Bulb
- Type B: LED (if equipped)
(5) Rear fog lamp
If the LED lamp does not operate,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Turn signal lamp, Back-up lamp
(bulb type)
1. Disconnect the negative battery
cable.
2. Loosen the retaining clips under the
bumper and screws on the wheel
house trim.
3. Prey trim under the bumper toward
the vehicle.
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb by pulling it straight
out.
6. Insert a new bulb in the socket.
7. Reinstall the light assembly to the
body of the vehicle.
WARNING
• Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
• Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
• Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
• A bulb should be operated only when
installed in a turn signal lamp.
• If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
• Replacing the bulb may cause
damage to the bulb relevant parts
of the vehicle, and also may cause
injuries. To replace the turn signal
lamp, we recommend to visit an
authorized HYUNDAI dealer.
