2.2.5 Repositioning the air filter brackets
All appliances are delivered with the filter bracket positioned for an appliance installed with a left or
bottom return air supply opening. If you install the appliance with a right return air supply
orientation for ducting, you will need to reposition the air filter brackets in the opposite position.

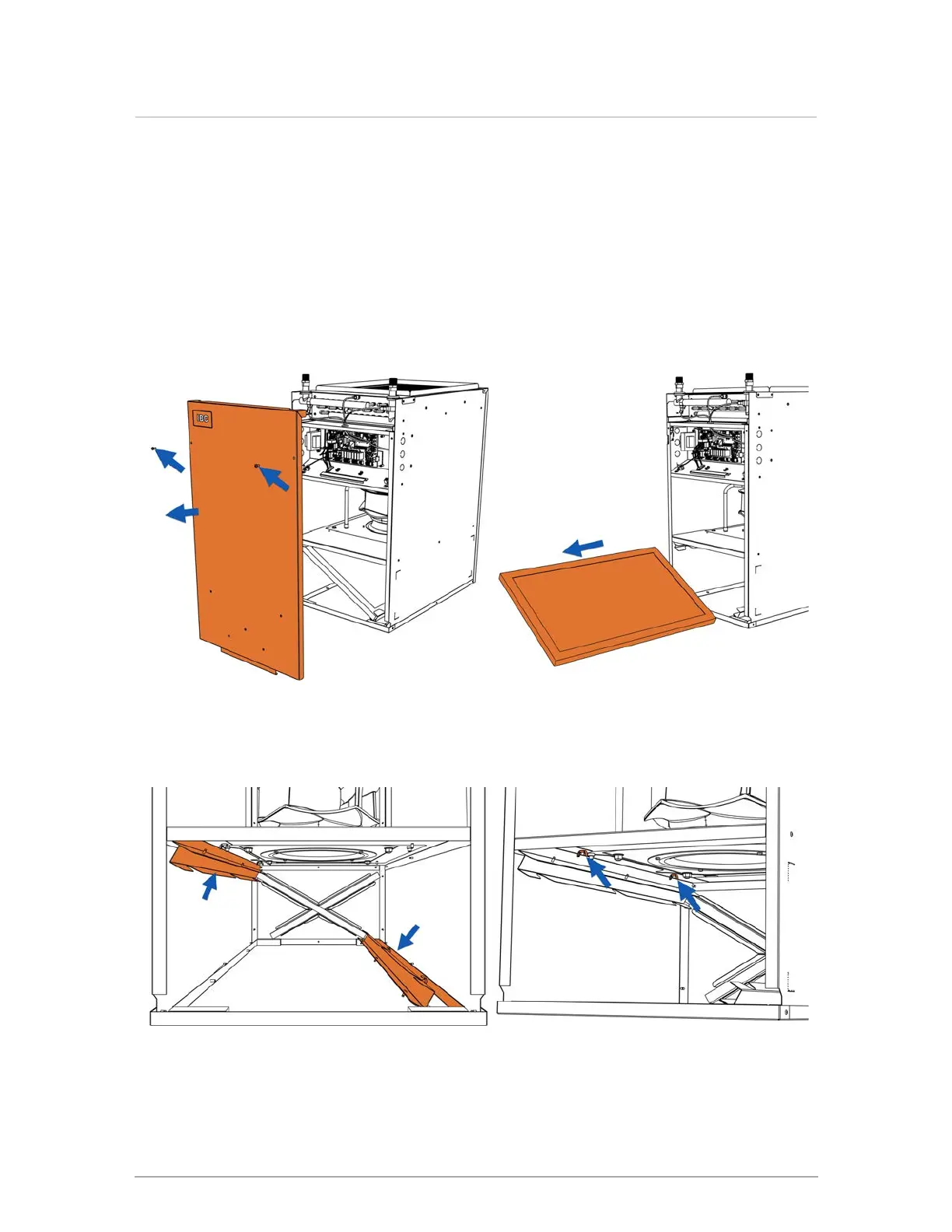

To reposition the filter:
1.
Remove the two screws from the front
cover of the appliance, and set aside.
2.
Slide out the filter.
The filter brackets highlighted below will need to
be repositioned.
3.
Remove the two wing nuts securing
the upper left bracket, and set them
aside.
24
Section: Installation
