Figure 80 on page 327 shows the drive gear in standby. The tractor assembly is put in standby when paper is
being fed from a rear tractor, manual sheet feed, or the automatic sheet feeder.
Drive Gear
(In Drive
Position
For Front
Installation)
Idler
Gear
Motor
Printer Front
Tractor Drive
Gear

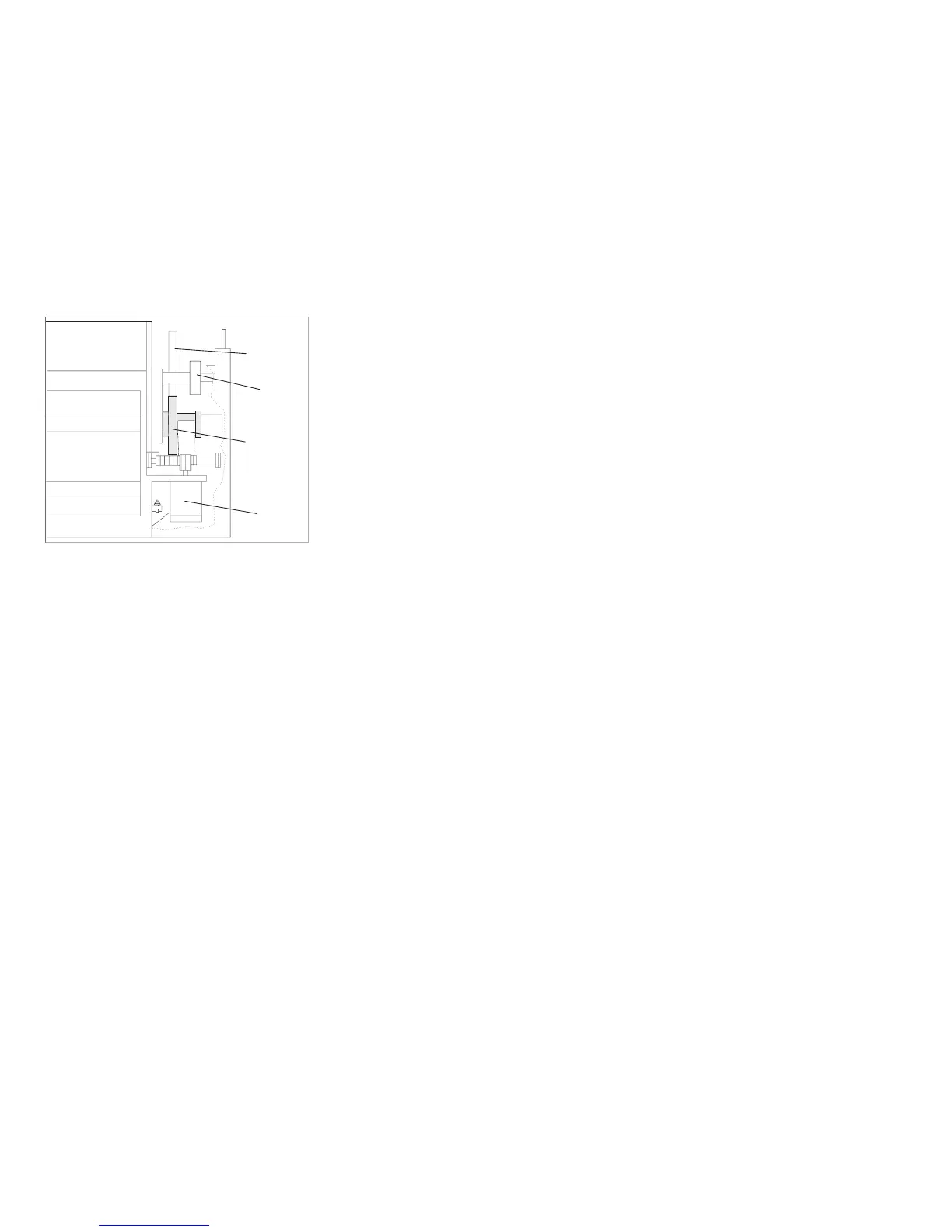

Figure 79. Tractor In Drive Position, Front.
Tractor shown installed in front position, with drive gear engaged (right
end cover removed, for clarity).
Chapter 5. Removals and Adjustments 326
