1. Align the slots of one of the stabilizer brackets with the mounting holes at the bottom front of the
rack.
2. Install the two mounting screws.
3. Ensure that the base of the stabilizer bracket rests firmly on the floor. Use the Allen wrench that was
supplied with the rack to tighten the mounting screws alternately until they are tight.
1 Rack front (base) 3 Stabilizer bracket
2 Stabilizer mounting screws 4 Rack rear (base)
4. To install the second stabilizer bracket on the back of the rack, repeat steps1-3.
Attaching the rack to a concrete floor:
If you plan to install the front or back ac electrical outlets in the rack, the rack must be bolted to the floor.
This section describes how to perform this task for a concrete floor.
Obtain the services of a mechanical contractor to attach the rack-mounting plates to the concrete floor.
The mechanical contractor must determine that the hardware being used to secure the rack-mounting
plates to the concrete floor is sufficient to meet the requirements for the installation.
To attach the rack to a concrete floor, complete the following step:
1. Put the rack in its predetermined location, and tighten the locking screws on the casters.
2. If they are installed, remove the top, left, and right trim panels. The trim panels are held in place
with spring clips. See the following illustration.

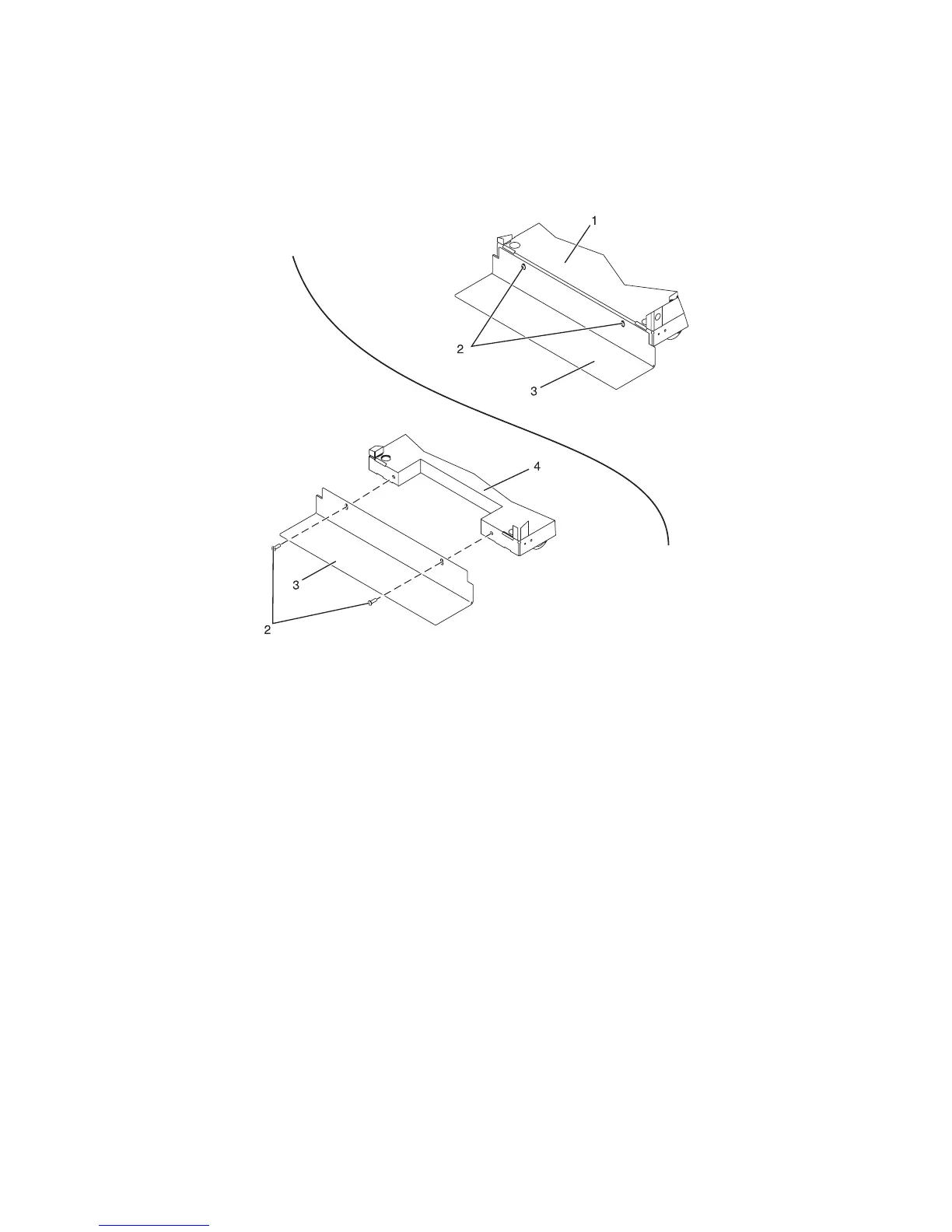

Figure 3. Attaching the stabilizer brackets
4 Power Systems: Racks and rack features
