2. Swing the brace (10) out of the rack.
3. Access the system and reinstall the brace.
Releasing the side panel with a ruggedized kit:
You might need to release the side panel on the rack. Use this procedure to perform this task.
The ruggedized kit contains securing screws that secure the side panels to the rack. To remove a securing
screw, complete the following steps:
1. If necessary, open or remove the back rack door.
2. Locate the securing screw mount (11) for the side door that will be removed.

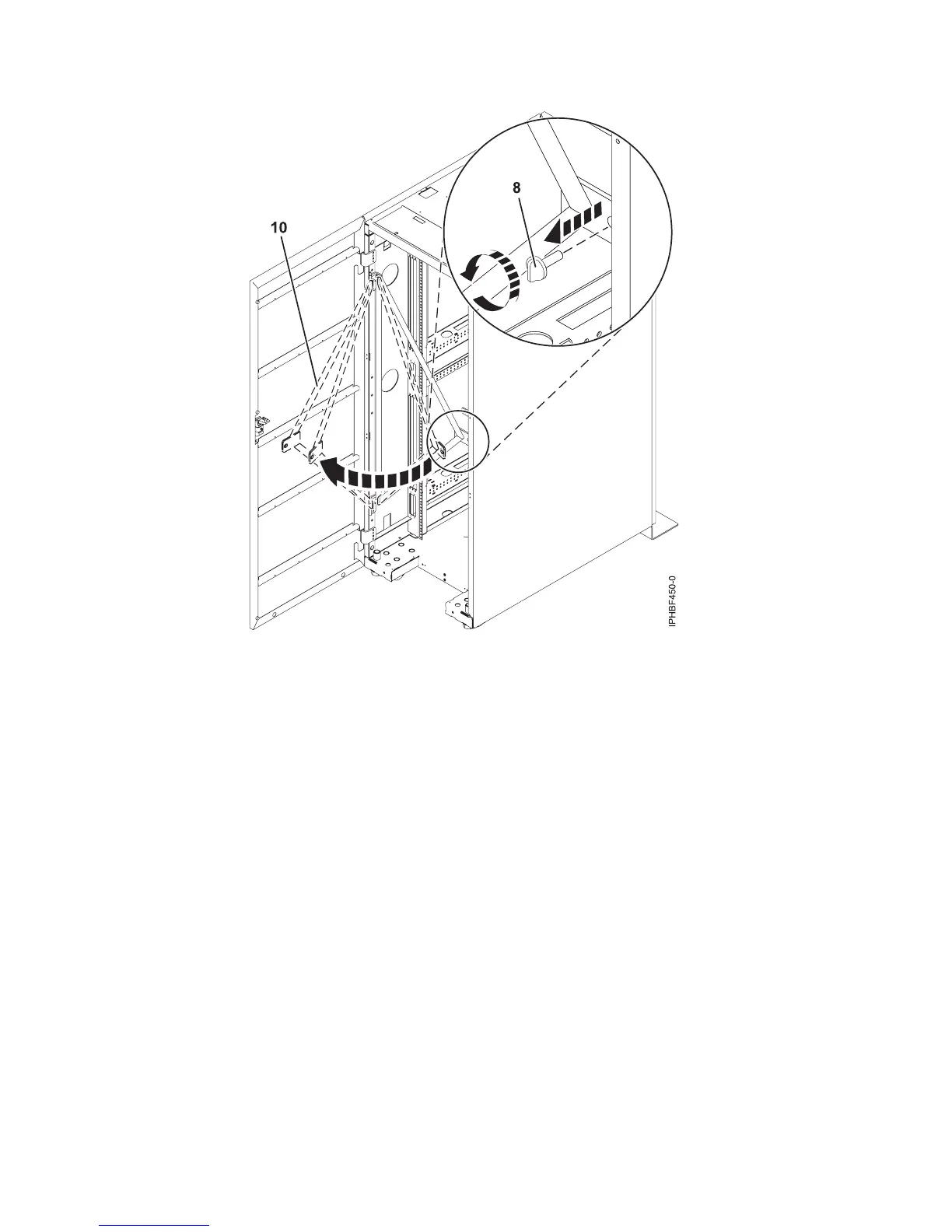

Figure 30. Releasing the brace to access systems
32 Power Systems: Racks and rack features
