1. Align the bottom plate (A) of the right side trim panel to the bottom of the rack.
2. Align the top of the trim panel (B) and squeeze slightly with your fingertips.
3. After the trim panel is in the correct location, release the pressure to allow the spring clips to hold the
panel in place.
4. Repeat this procedure to install the left side trim panel.
Attaching the rack doors
Learn how to attach the rack doors. Use this procedure to perform this task.
Depending on the model of the rack, the front door of a rack might be an optional feature. If your system
already has the front door installed, or does not have a front door to install, skip this step.

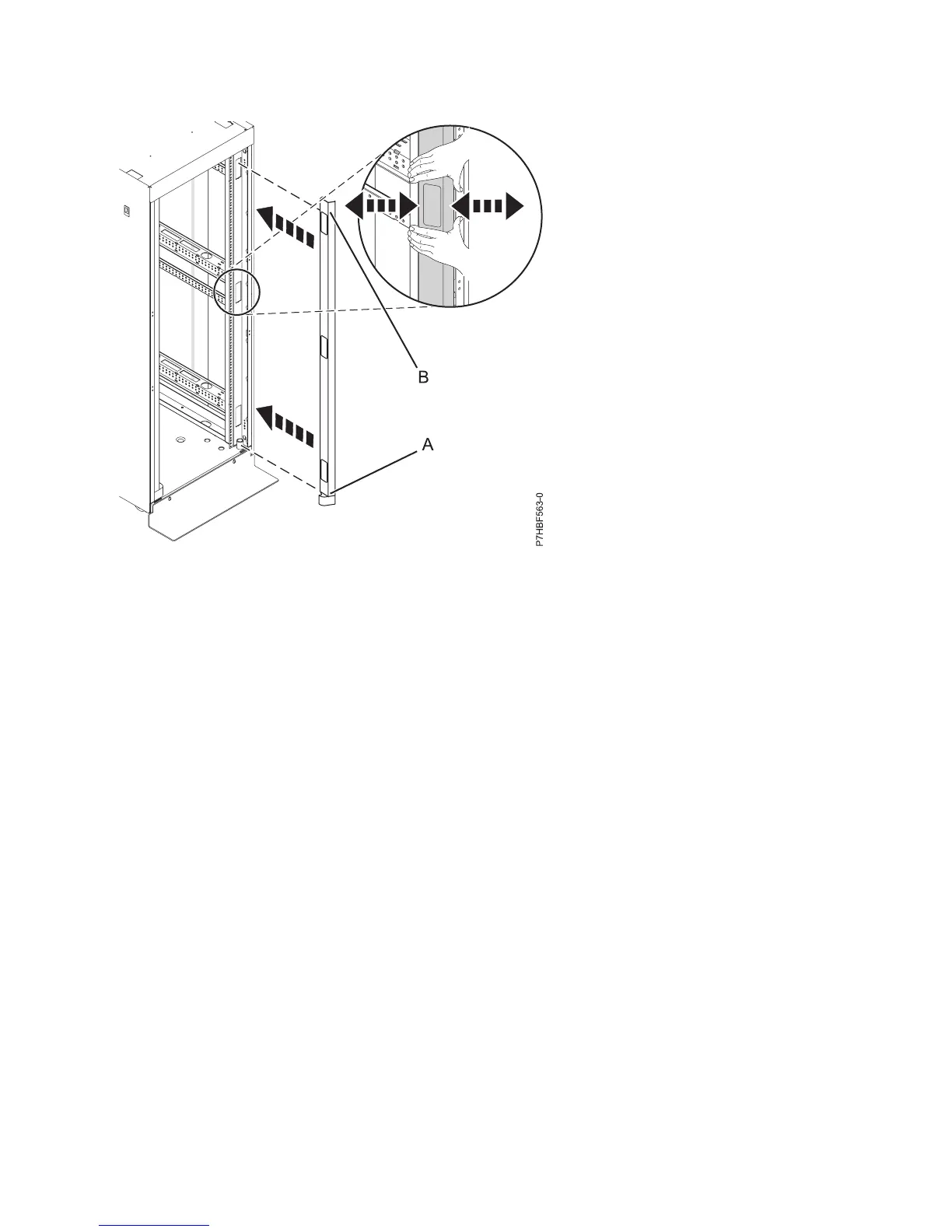

Figure 22. Installing the rack trim panel
24 Power Systems: Racks and rack features
